SECTION 2 : INSTALLER
Installation - AL690
42"
52"
Inner Door Surface
1. Remove 2nd Row Seating. [Figure 22-1]
2. Installing the Front Leg. The AL690’s front leg
must be mounted between 42” and 52” from the
internal surface of the closed side door of the vehicle.
Examine oor area for remaining seat attachment
points that are recessed into the oor. [Figure 22-2]
3. Front Leg Attachment
3A. If Seat Attachment Points ARE Available: See
Figure 22-3 for mounting diagram.

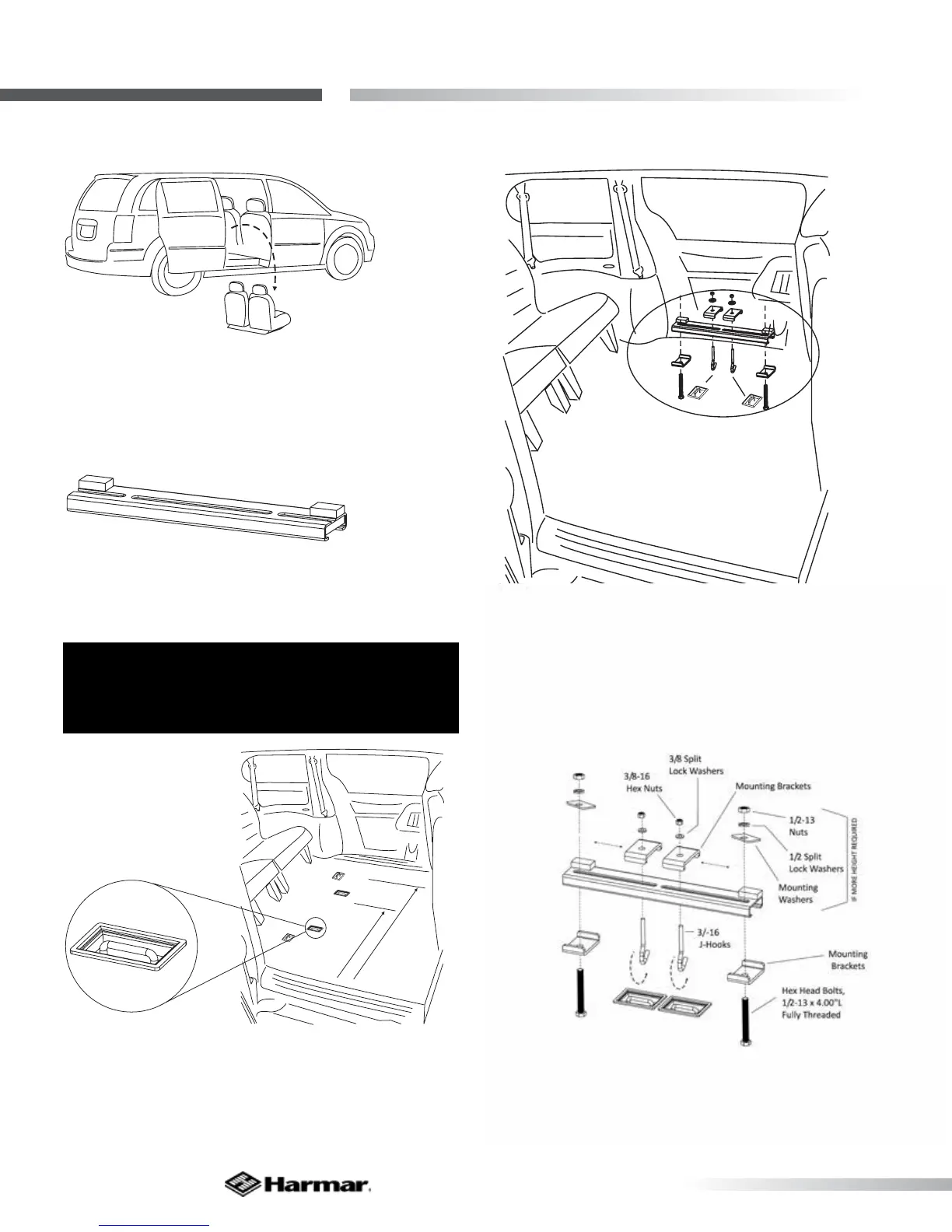

Figure 22-1
Figure 22-2
Figure 22-3
IMPORTANT:
Attachment Points MUST be FLUSH or LOWER than
the oor.
