TEC0020 2018JAN3 P/N: 630-00025 Rev D AL600 & AL690 Hybrid Installation & Owner's Manual
21
Installation - AL600
SECTION 2 : INSTALLER
With Folding 3rd Row Seating
From vehicle harness
(installed on page 12)
A
B
A
B
BLACK
RED
BLACK
RED
FROM
LIFT
FROMVEHICLE HARNES
S
(FROMBATTERY )

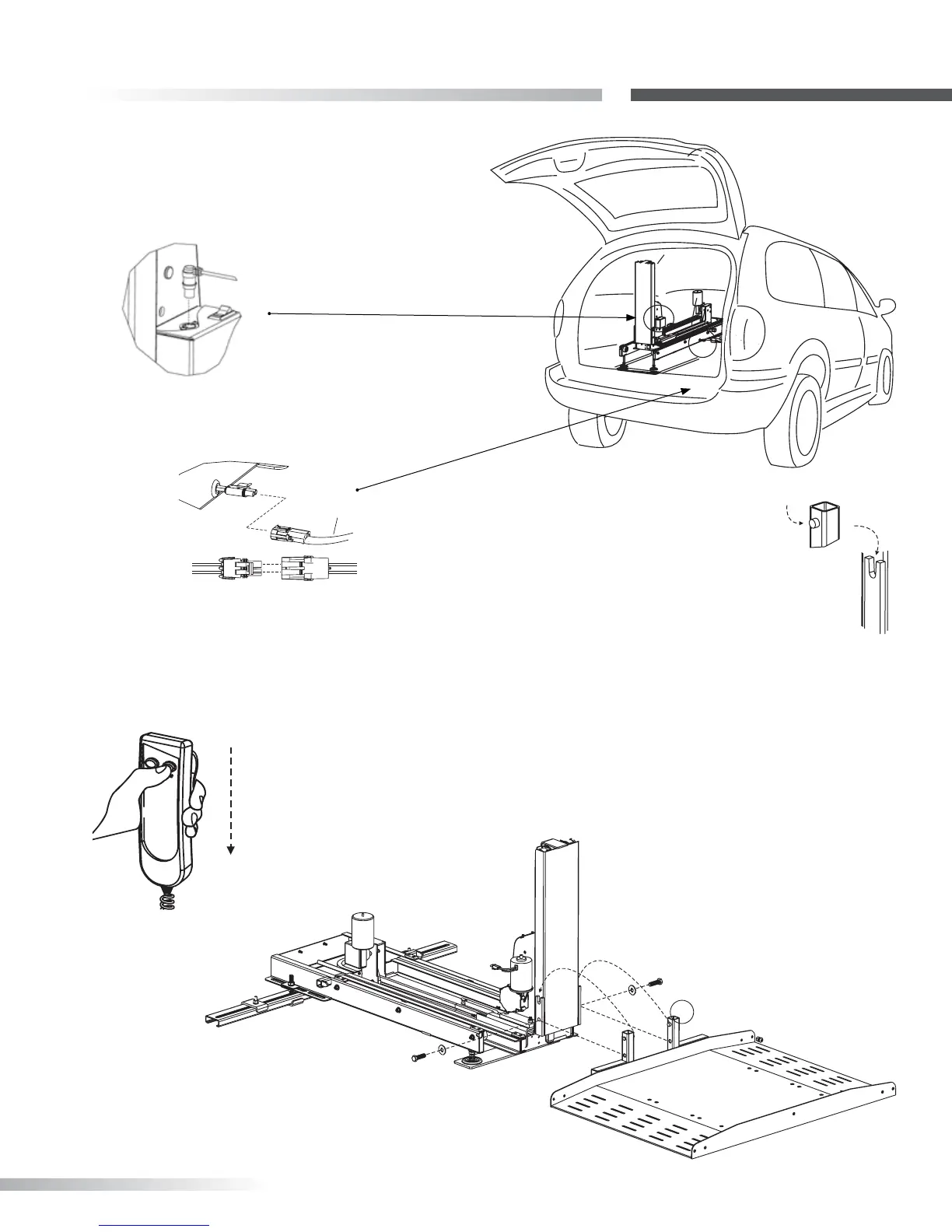

15. Plug hand controller into lift. [Figure 21-1]
Connect to vehicle harness. [Figure 21-2]
Figure 21-1
16. Press the DOWN button until the lift’s tower has
moved out of the vehicle. [Figure 21-3]
17. Attach platform by placing
platform’s upright pins into u-shaped
bracket on tower. [Figure 21-4]
Figure 21-4
18. Thread ½-13 x 1-3/4” L Hex head Bolts and ½”
washers into threaded holes as shown.
[Figure 21-5] Test full motion of lift into and out of
the vehicle. Be sure lift is level and no obstructions
interfere with platform travel.
Tighten all fasteners from ALL steps at this time.
Figure 21-5
Figure 21-2
Figure 21-3
