Harmar Mobility AL600 - Single Person Installation

TEC0020 2018JAN3 P/N: 630-00025 Rev D AL600 & AL690 Hybrid Installation & Owner's Manual
11
SECTION 2 : INSTALLER
Preparation
LIFT TOWER
TO REMOVE
FROMBASE
STRAIGHTUP
INSTALLBASEAS
INSTRUCTEDLATER IN MANUAL.
RE-ATTACHTOWER ONCE BASE IS
MOUNTED IN VEHICLE.RE-CONNEC
T
4WAY&LIMIT SWITCH CONNECTORS.
REMOVE 4NUTS
AT TOWERBASE
9/16”

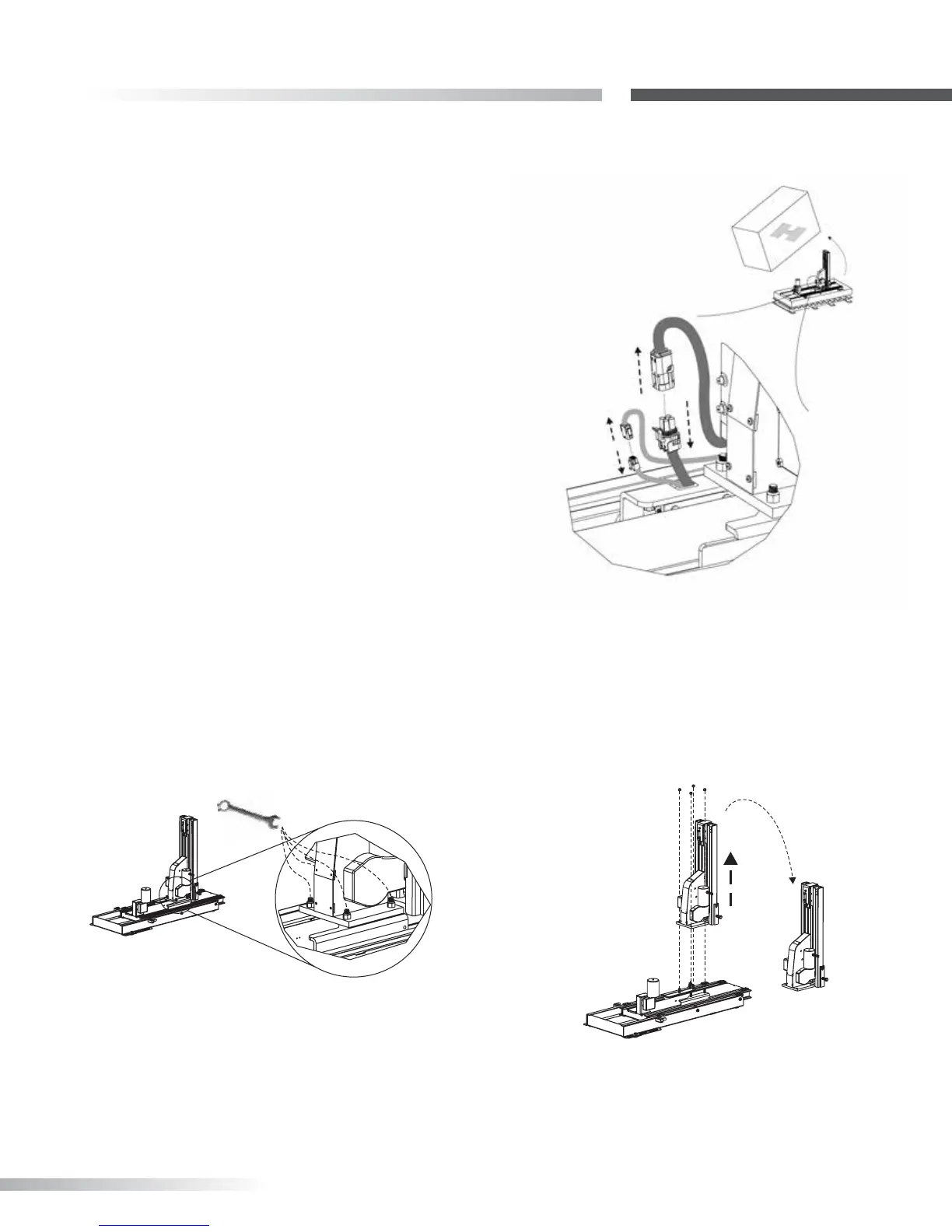

Figure 11-2
Single Person Installation Option
• We recommend two people install the lift
together. If only one person is available, a
few extra steps make the lift lighter and more
manageable to permit installation.
• Remove connections at limit switch and remove
power connections at 4-way plug. [Figure 11-1]
• Remove 4 nuts at tower base . [Figure 11-2]
• Lift tower straight up to remove from base.
[Figure 11-3]
• Install base as instructed later in manual.
• Re-attach tower once the base is mounted
in the vehicle. Re-connect 4-way and limit
switches connectors.
Figure 11-1
Figure 11-3
REMOVE POWER
CONNECTIONS AT
4 WAY PLUG
REMOVE POWER
CONNECTIONS AT
LIMIT SWITCH
