TEC0020 2018JAN3 P/N: 630-00025 Rev D AL600 & AL690 Hybrid Installation & Owner's Manual
14
With Removable 3rd Row Seating
Installation - AL600
SECTION 2 : INSTALLER
32”
32”
42”
42”
CENTER
2ndROW SEAT ING
2nd ROW SEATING

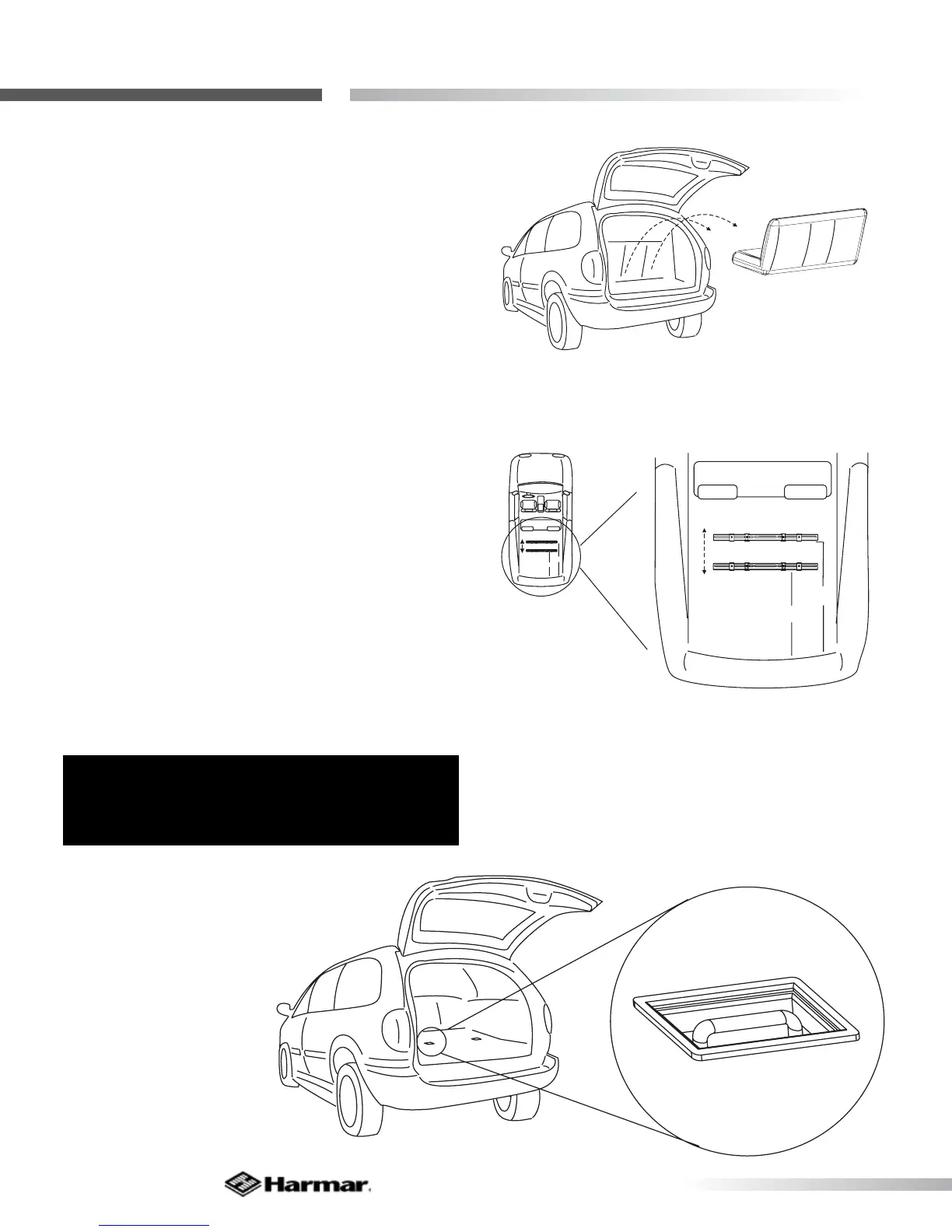

1. Remove 3rd Row Seating. [Figure 14-1]
2. The AL600 Leg must be mounted between 32”
and 42” from the internal surface of the closed back
door of the vehicle. [Figure 14-2]
Figure 14-2
Figure 14-1
3. Examine the Floor for Additional Seat
Attachment Points. These must be recessed into
the oor. [Figure 14-3]
Figure 14-3
IMPORTANT:
Attachment Points MUST be FLUSH or LOWER than
the oor.
