Installation - AL600
SECTION 2 : INSTALLER
With Removable 3rd Row Seating

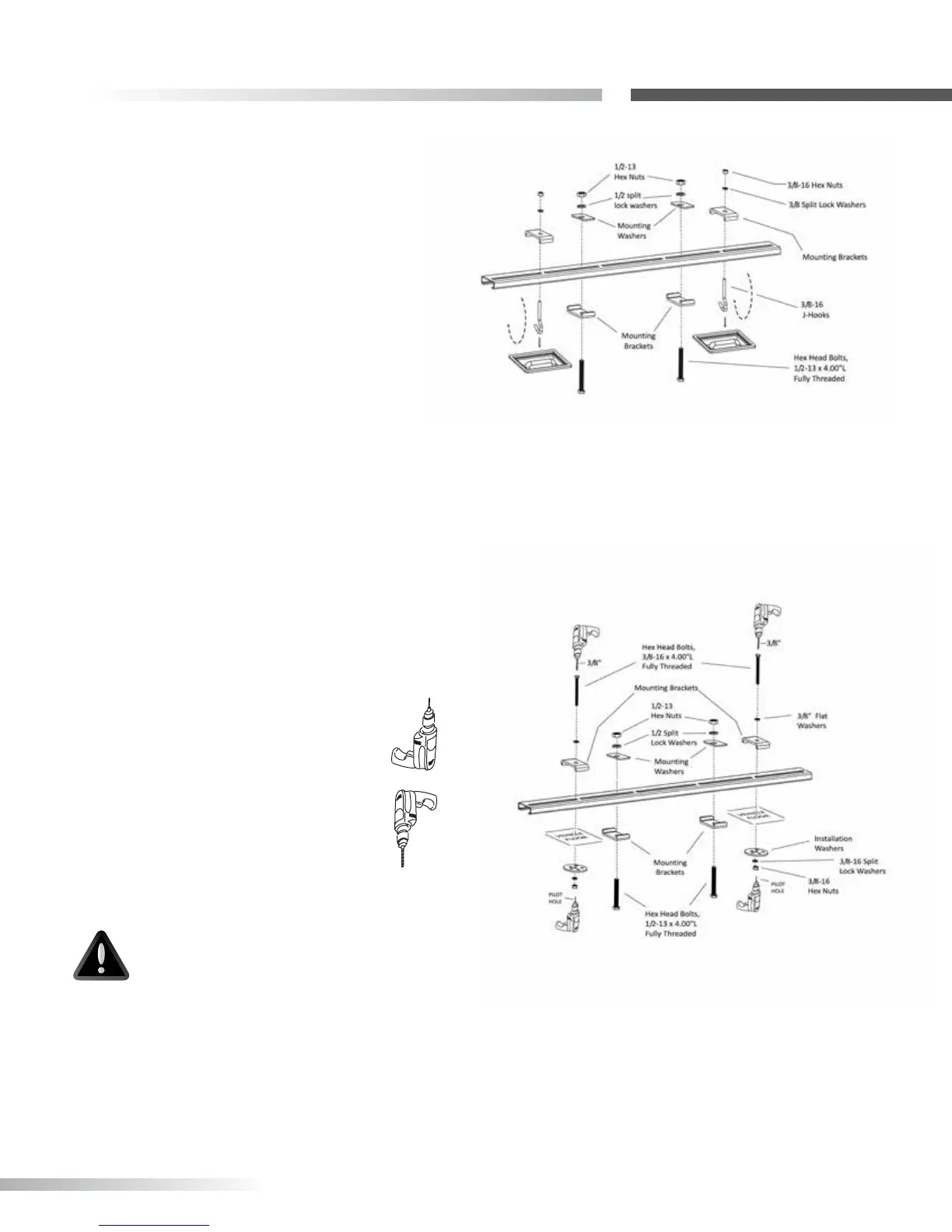

4 A. If Seat Attachment Points ARE
Available: See Figure 15-1 for mounting
diagram.
Figure 15-1
4 B. If Seat Attachment Points are NOT
Available: Look under vehicle in approximate
area where Leg will need to be mounted. See
Figure 15-2 for mounting diagram.
Figure 15-2
Drill a pilot hole rst, up from under the
vehicle to ensure nothing will be damaged.
Find hole from inside vehicle and drill 3/8”
hole down through vehicle’s oor.
CAUTION
USE EXTREME CAUTION
Avoid Gas Tank, Fuel / Brake / Electrical
Lines
To Next Page
