TEC0020 2018JAN3 P/N: 630-00025 Rev D AL600 & AL690 Hybrid Installation & Owner's Manual
16

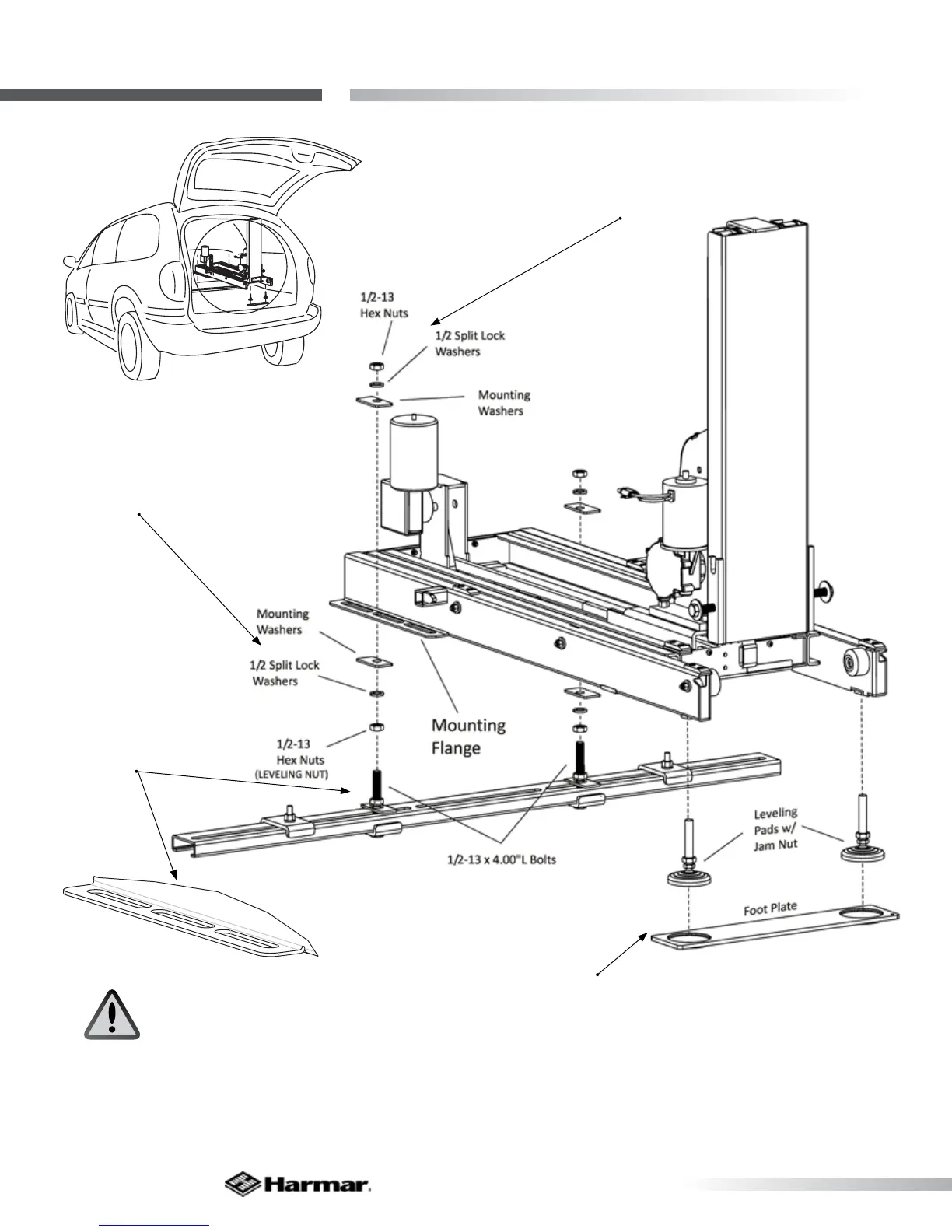

With Removable 3rd Row Seating
Installation - AL600
SECTION 2 : INSTALLER
1/2-13
Hex Nut
1/2-13
HexNut
1/2 Split Lock
Washer
1/2 SplitLock
Washer
Mounting
Washer
Mounting
Washer
Leveling
Pad w/
Jam Nut
Foot Plate
Mounting
Flange
(LEVELING NUT)
1/2-13x4.00"Lbolts
5. Thread ½-13 nuts onto ½-13 x 4.00”
L bolts. Place ½” lock washers onto bolts.
Place mounting washers onto bolts.
6. Use an assistant
to place lift onto bolts
through mounting
ange on lift as shown.
8. Lift front end of lift and install leveling pads as
shown. Place foot plate under leveling pads. Lower
lift and check with a level. Adjust by threading nut
on leveling pads and threading bottom nut under
mounting ange.
WARNING
If no assistant is available, follow
instructions on page 11 to avoid
injury.
7. Place mounting washers on bolts, on top of
mounting ange on lift. Place ½” lock washers onto
bolts. Thread ½-13 nuts onto bolts.
