TEC0020 2018JAN3 P/N: 630-00025 Rev D AL600 & AL690 Hybrid Installation & Owner's Manual
LOADING & SECURING YOUR CHAIR
1. Lower the Lift Platform. Using your remote control, lower the
lift platform until it reaches the ground and becomes level.
2. Drive Chair/Scooter onto Platform. Drive the chair or scooter
onto the platform so that the heaviest portion is closest to the
lifting tower (this is usually under the drive wheels, motor(s)
and battery locations). Most often this method requires the
chair or scooter to be loaded in reverse, and unloaded driving
forward. Set your chair or scooter’s speed control
to slow speed to maneuver easily onto the
platform. [Figure 4-1]
3. Secure the Chair. Each corner of the AL690
platform has a restraint attached, with a hook
on the end. Place each hook in either the anchor
plate slot or in each U-bolt. [Figure 4-2]
Pull the loose end of each restraint tight. To release, simply
press the release tab and remove the hooks. [Figure 4-3]
4. Fold Seat Backs. If your chair has a folding seat back, you may
want to place it in the down position for easier clearance when
loading the chair into the vehicle. Depending on the size of
your chair, you may need to remove the headrest as well.
5. Raise the Chair. Double-check that the chair is secured
properly on the platform. While holding the hand
control, stand to the side and away from the lift. Press the
"UP" button. [Figure 4-4]
The platform will rise and retract into the vehicle. When the
platform stops retracting, release the button. The platform
will automatically lock itself into travel position. Close the
door slowly, making sure that no part of the chair or other
objects in the cargo area contact the door.

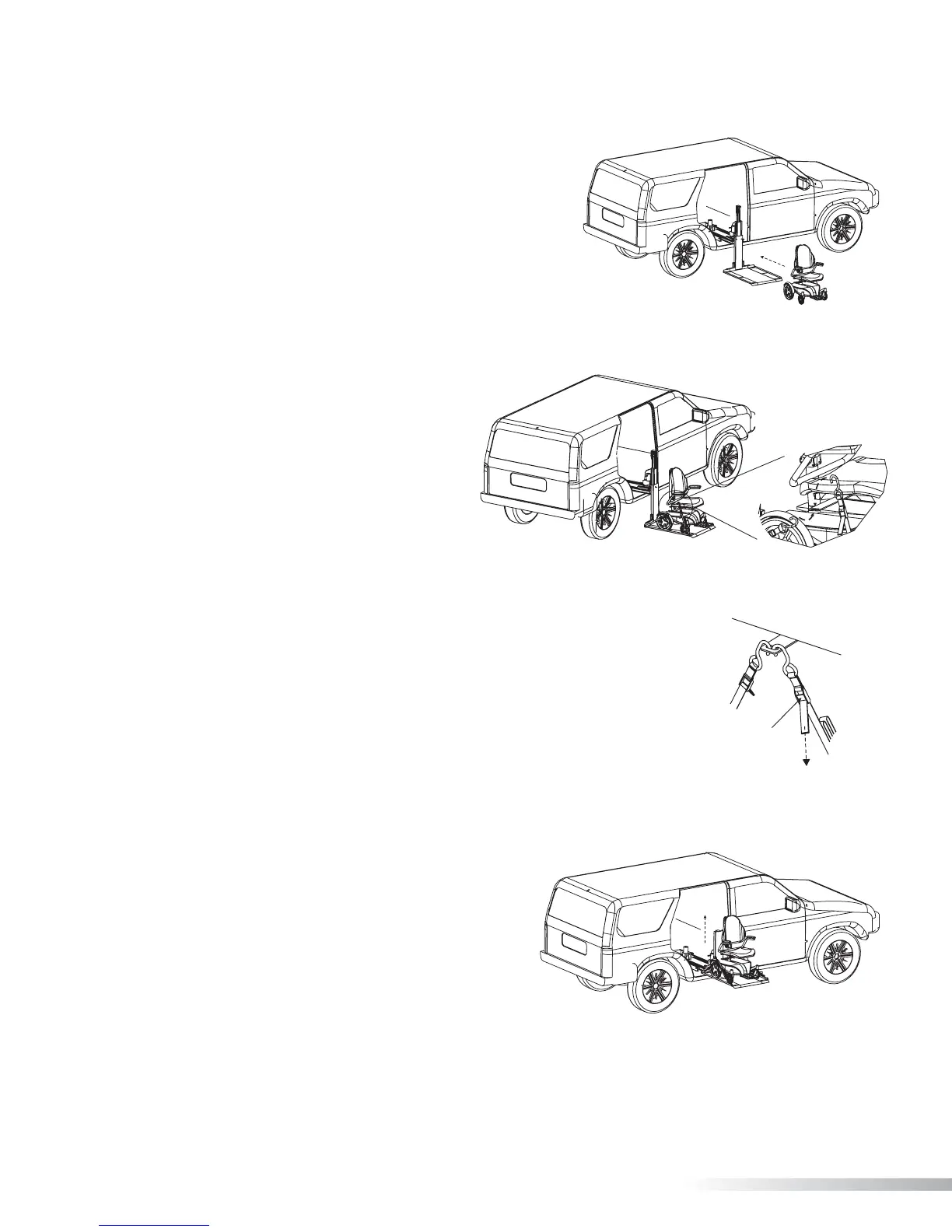

Figure 4-1
Figure 4-4
Figure 4-2
PULLto
TIGHTEN
PUSHto
RELEASE
Figure 4-3
