Installation - AL600 SECTION 2 : INSTALLER
With Folding 3rd Row Seating
1/2-13
Hex Nut
1/2-13
Hex Nut
1/2 Split
Lock Washer
1/2 Split
Lock Washer
Mounting
Washer
Mounting
Washer
Leveling
Pad w/
Jam Nut
Mounting
Flange
1/2-13x4.00"Lbolts
(Leveling Nut )

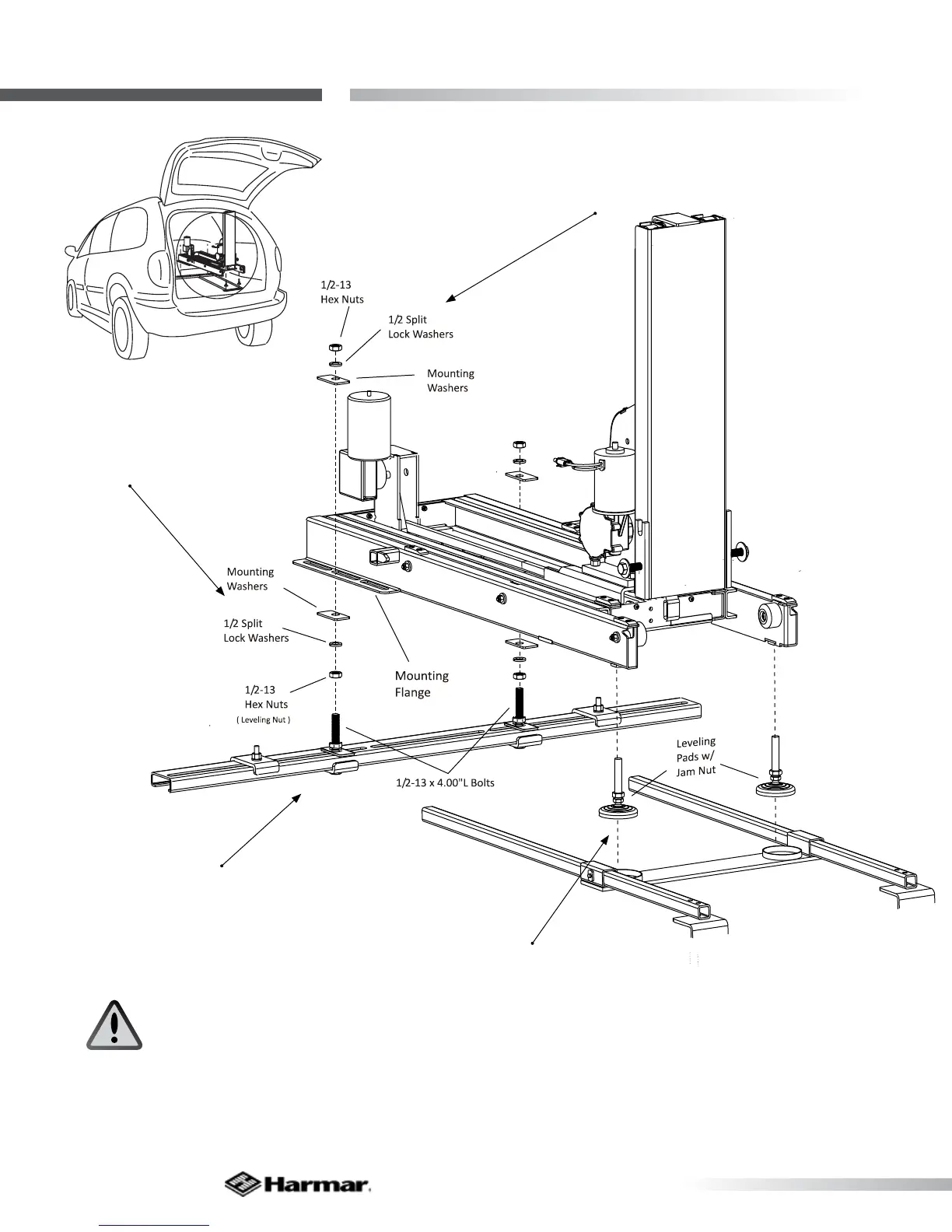

11. Thread ½-13 nuts onto
½-13 x 4.00” L bolts. Place ½”
lock washers onto bolts. Place
mounting washers onto bolts.
12. Use an assistant to place lift onto bolts
through mounting ange on lift as shown.
13. Place mounting washers on bolts, on top of
mounting ange on lift. Place ½” lock washers onto
bolts. Thread ½-13 nuts onto bolts.
14. Lift front end of lift and install leveling pads
as shown. Place pads into circular cups of BA-02 as
shown. Lower lift and check with a level.
Adjust by threading nuts on leveling pads and
threading bottom nut under mounting ange.
WARNING
If no assistant is available, follow
instructions on page11 to avoid
injury.
