FR6802+ Frame Back Module
Figure 1-4 shows the single-width back connector module and
Figure 1-5 shows the double-slot back connector module used by the
VCA / VDA / VEA6800+ when installed in an FR6802+ frame.

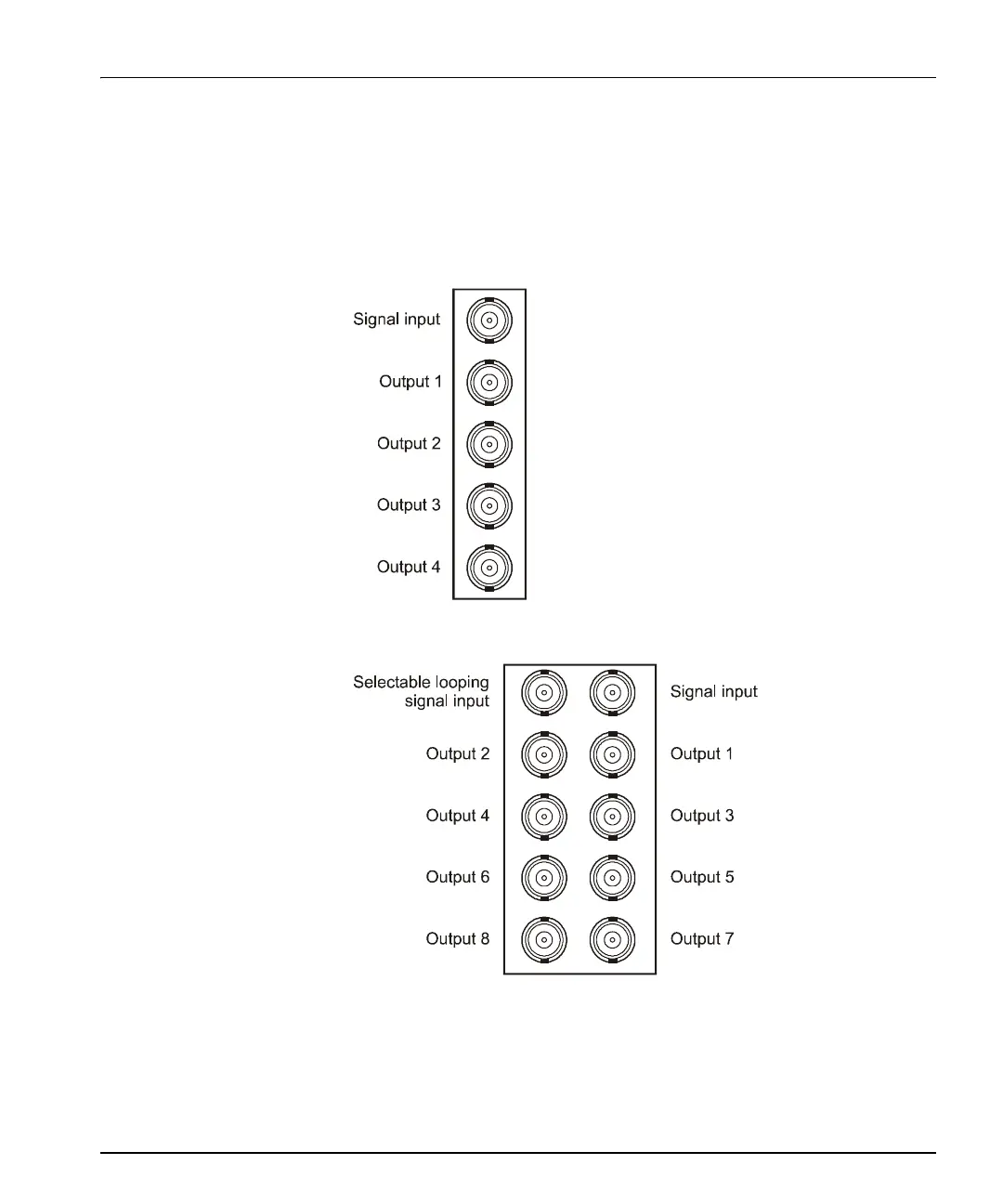

Figure 1-4. Single-Width Back Modules for FR6802+ Frame
Figure 1-5. Double-Width Back Module for FR6802+ Frame
