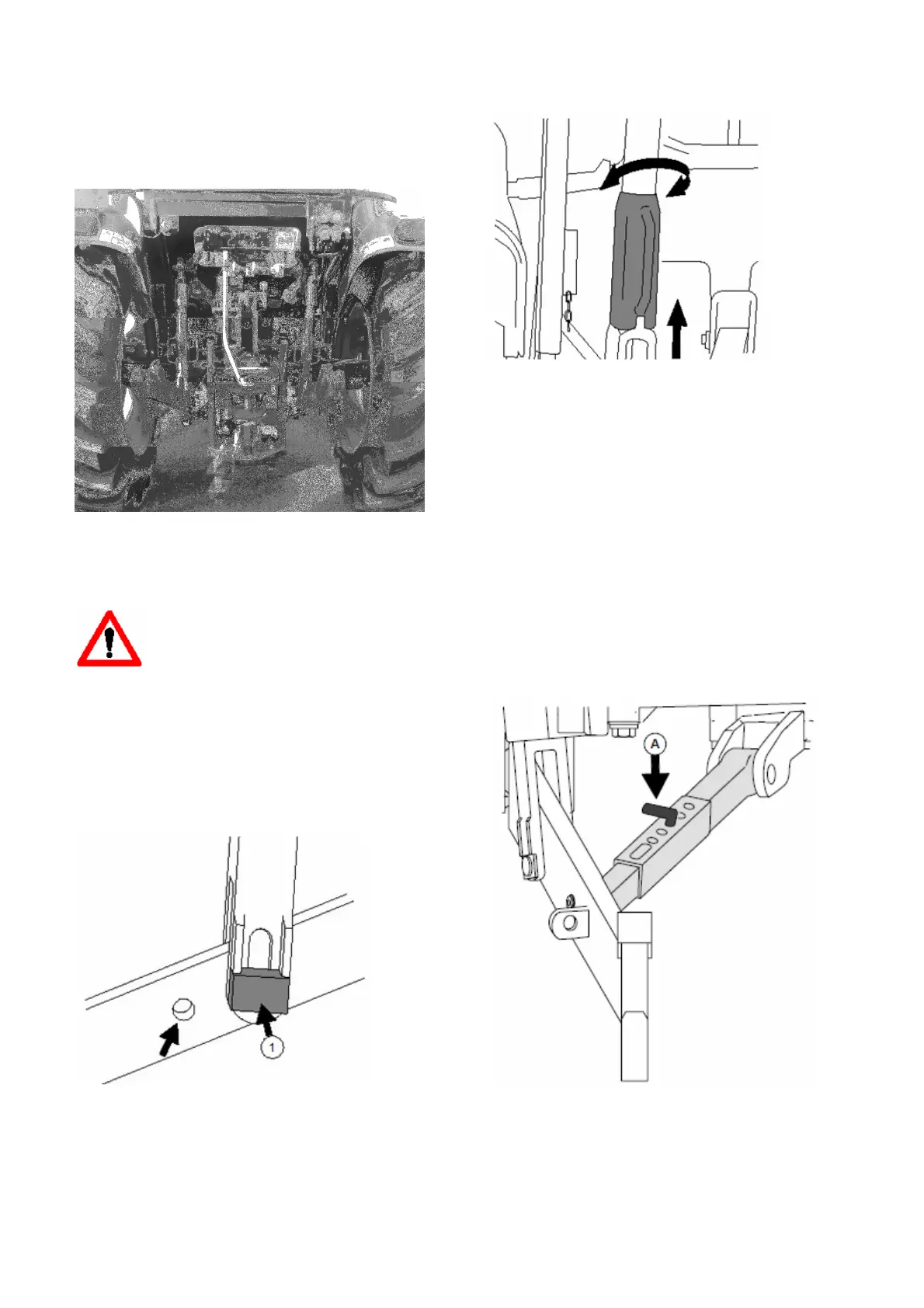

6.3. Three − point linkage
The tractors are supplied with Category 2 telescopic
lower links. Hook ends are available as optional
equipment.
1. Be sure drawbar will not interfere with
implement. If necessary, move drawbar ahead, or
remove it. Check for any other potential interference
points.
CAUTION: Prevent unexpected
movement of rockshaft by placing
draft sensing lever in the forward or
“off” position before attaching
implement to hitch.
2. Back tractor up to implement (A) so hitch points
(B) align. Place transmission levers in neutral,
engage park brake and stop engine BEFORE
leaving the tractor seat.
3. Slip draft links over implement hitch pins and
retain with quick-lock pins.
The lifting links can be attached to the lower links at
one of two holes. Different holes give different lifting
ranges and lifting power for the lower links.
In addition, the carrier pin (1) can be fitted to the
lower links at two different positions; one gives a
fixed position and the other allows slight vertical
movement of the lower links.
6.3.1. Lifting links
The length of the lifting links can be adjusted by
lifting the leveling screws up and turning them in the
required direction. After adjustment the leveling
screws must be lowered back down to the locked
position.
6.3.2. Check links
Check links are used to limit the lateral movement
of the lower links.
By changing position of the check link attaching pin
(A), different lateral positions for the lower links can
be obtained. If the pins are fitted in the long holes,
the lower links have a floating position in the lateral
direction.
