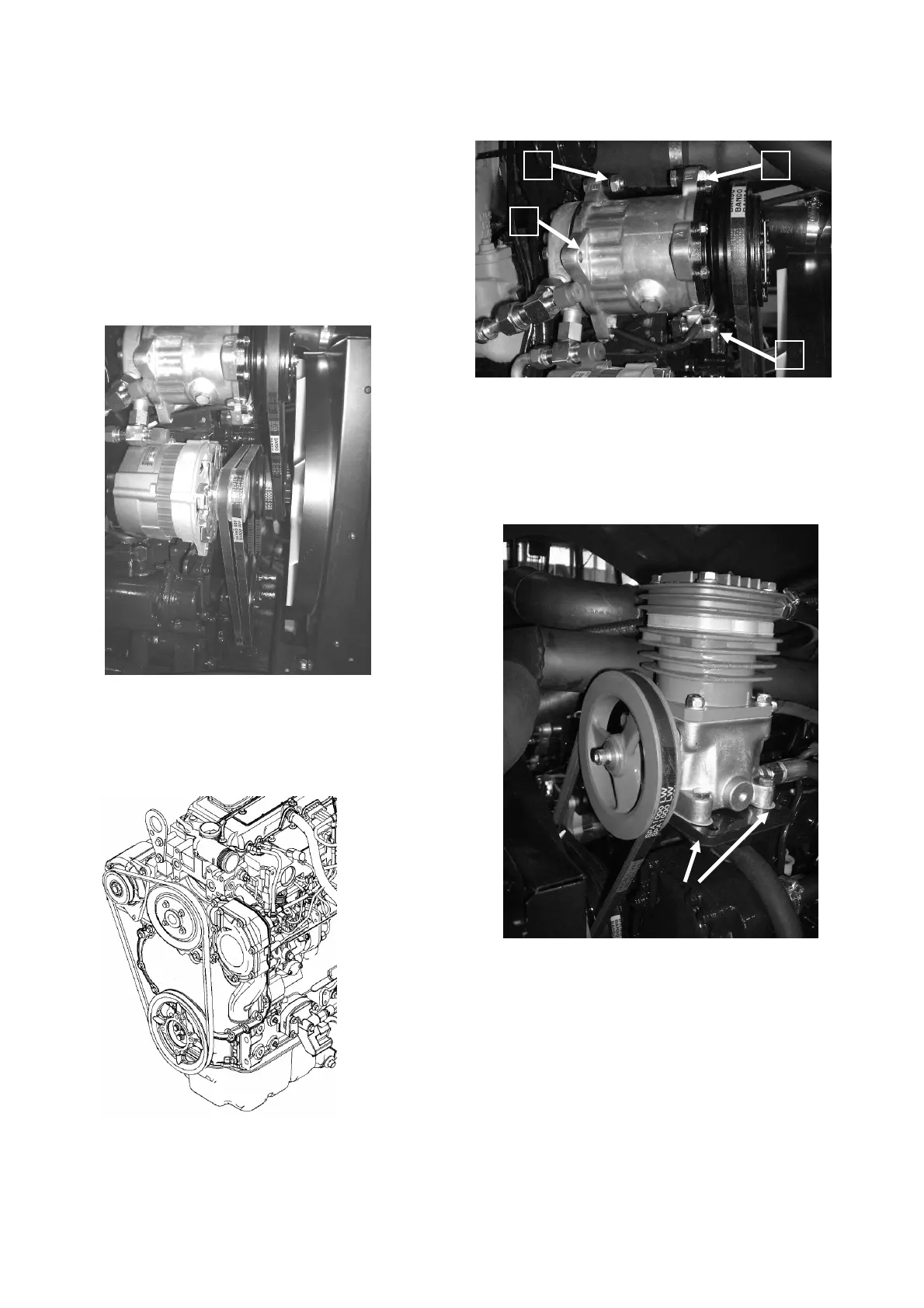

8.3.4. Check belts tensions (7)
The belts are suitably tensioned when they can be
pressed in about 10 mm (0.79 in) with the thumb
halfway between the belt pulleys.
Check that the fan belts are in good condition when
adjusting. Slack, worn and/or oily fan belts can
cause problems with battery charging and the
cooling system. Always keep spare fan belts handy.
8.3.4.1. Alternator belt
The alternator belt adjustment is done by turning
the alternator in its fasteners. Remove the finger
shield if necessary.
8.3.4.2. Water pump/coolant fan belt
Tensioning belt
Adjust the tightness of belts by loosen and
fastening of the alternator’s belt pulley.
8.3.4.3. Air conditioning compressor
belt (extra equipment)
The adjustment is done by turning the compressor
(1) in its fasteners. All the three attaching bolts (A)
have to be slackened when doing the adjustment.
8.3.4.4. Air pressure compressor belt
The pressure air compressor belt tension is
adjusted with the adjustment by the compressor
nuts.
