2WD Axle
Structure…………………………………………............ traverse type
Turning on connection pin....……………………. ……. ± 13°
Kamber…………………………………………………... 2°
King – Pin angle.....……………………………………. 8°
Kaster…………………………………………………….. 0°
Flansh distance, front axle 2WD....…………………….. 1390, 1490, 1590
Toe-in…………………………………………………….. 5 mm
Brake System
Type………………………………………………………….disc brakes of multi---disc type running in oil
No. of brake discs………………………………………….4+4 kpl
Friction area…………………….………………………… .2150 cm²
Pedal free travel……………………………………...........50 mm
Parking brake……………………………………………….mechanically operated, acting on running brakes
Steering System
Hydrostatic steering,
Steering cylinder……………………………… ................. double acting piston
Steering pump……………………………………….......... gear pump
Steering pump capacities ............................................. 27 lt./dk(2200 rpm) – A70 / A70L / A80 / A80L
....................................................................................... 29lt./dk(2200 rpm) – A90 / A100 / A110
Pump max. working pressure ........................................ 250 bar
Steering valve volume, .................................................. 100 cm³
Steering Wheel revolution...............................................3.25 revs (2WD), 1.9 revs (4WD)

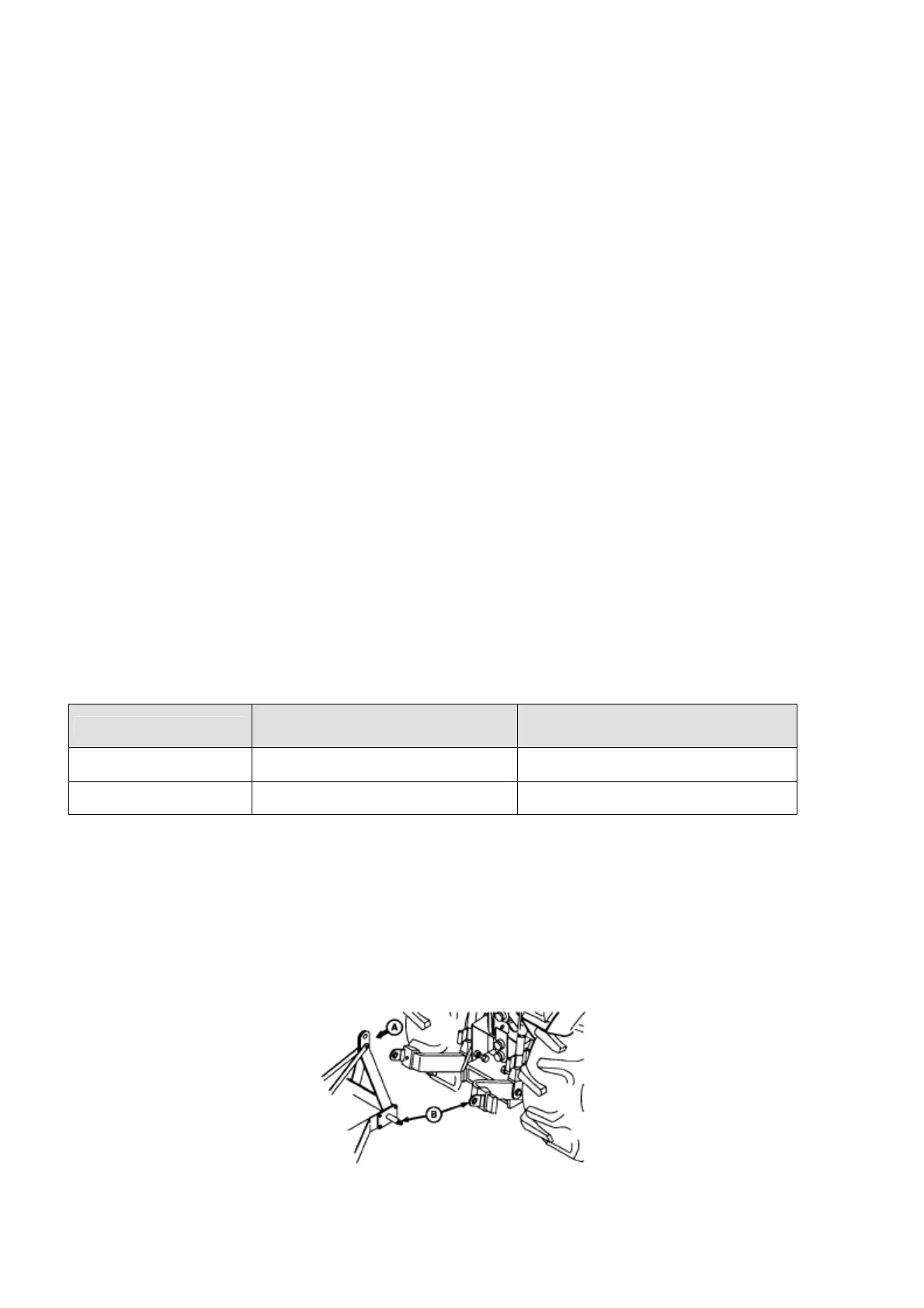

Steering Turning Diameter
Models
A70, A70L, A80, A80L TURBO 2WD /
A70, A70L, A80, A80L TURBO 4WD
A90, A100, A110 TURBO 2WD /
A90, A100, A110 TURBO 4WD
Steering Turning Angles
46° / 55° 46° / 55°
Steering turning
diameter, mm
7700 / 9000 7700 / 9000
Hydraulic Lift
Cat II,Three point Linkage
Pump Type…………………………………………….…... Gear Pump, acted by engine timing gears
Pump Capacities………………………………................. 43 lt/dak /2200 rpm (A70 -A70L - A80 - A80L)
...................................................................................... 58 lt/dk / 2200 rpm ( A90 - A100 - A110)
Suction Filter…………………………………………......... cartridge type replacable
Hydraulic capacity.......................................................... 31 It
