11.1.2. Steering system

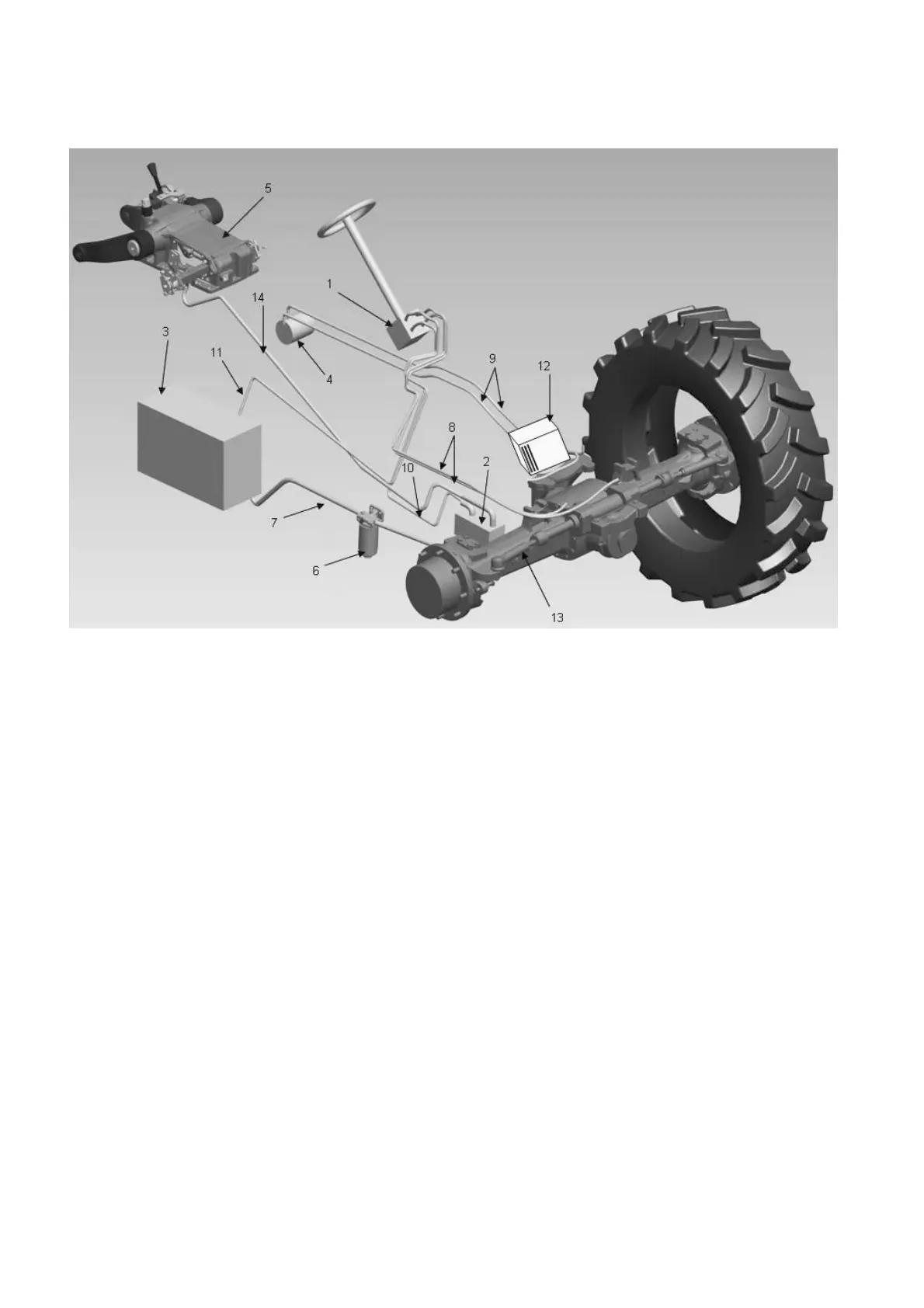

Construction of steering system:
1) Steering valve
2) Gear type pump
3) Oil reservoir
4) Oil cooler filter
5) Hydraulic lift
6) Suction filter
7) Suction line
8) Pressure lines (from steering valve to steering cylinder)
9) Oil cooler lines (between oil cooler-oil cooler filter)
10) Pressure line (from pump to steering valve)
11) Return line (from steering valve to oil reservoir)
12) Oil cooler
13) Steering cylinder
14) Pressure line (from pump to hydraulic lift)
