Hawk Gladiator series User Manual

9

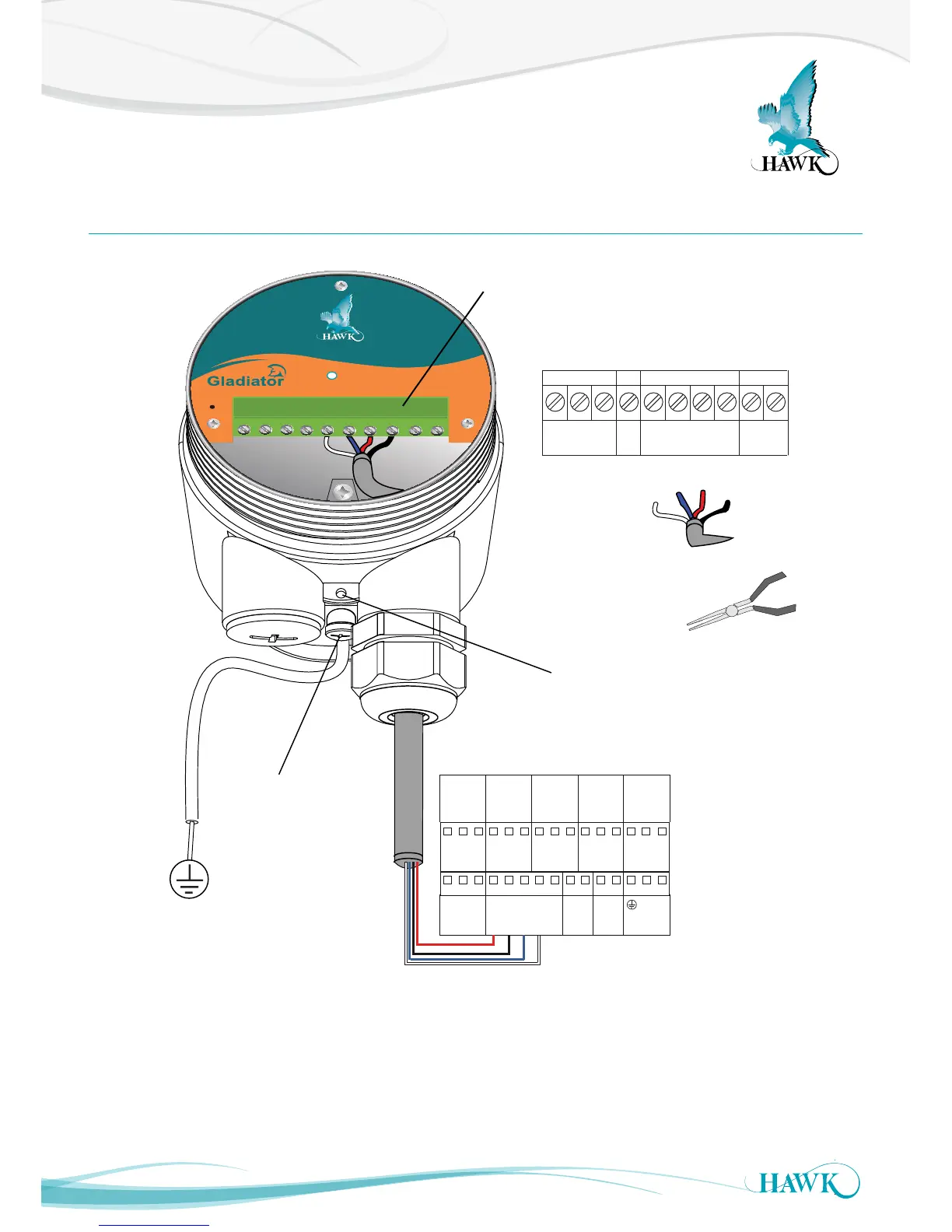

Wiring
Gladiator Conductivity Switch Series
RemoteProbetoAmplier
1 2 3 4 5 6 7 8 9 10
GLADIATOR REMOTE PROBE TERMINAL LAYOUT
M4 grounding screw
7. 1. 2. 3. 4. 5. 6. 8. 9. 10.
RED
WHITE
BLUE
BLACK
Cable type between Amplifier and Probe
4 conductor shielded twisted pair instrument cable.
Conductor size dependent on cable length.
BELDEN 3084A, DEKORON or equivalent.
Max: BELDEN 3084A = 500m (1640ft)
Max: DEKORON IED183AA002 = 350m (1150ft)
Hole for securing of
optional identification tag
Ground the housing to
vessel, if vessel is metallic.
Ground the housing to
plant ground, if vessel is
non-metallic.
Remove Plug-In
terminal block for
easier wiring.
Terminals 1, 2, 3, 4, 9, 10 not used.
Gladiator Remote Amplifier
Relay 1 - Output Relay
Relay 2 - FailSafe Relay
+
–
A
1L
+
–
N
B
RED
BLACK
BLUE
WHITE
BROWN
Is
SENSOR DC-In AC-In*4-20mA (N/A) COMMS
MIC-SENDER
RED BLACK BROWN
SLAVE IN MASTER OUT TEST IN
RELAY 1
NC COM NO
RELAY 2
NC COM NO
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
remote
Signal
STATUS
1 2 3 4 5 6 7 8 9 10
User pliers to extract
terminal blocks
CabletypebetweenAmplierandProbe
• Cable type between Amplifier and Probe
• 4 conductor shielded twisted pair instrument cable
• Conductor size dependent on cable length
• BELDEN 3084A, DEKORON or equivalent
• Max: BELDEN 3084A = 500m (1640 ft)
• Max: DEKORON IED183AA002 = 350m (1150 ft).
*AC-In is replaced by 36-
60VDC with Power Input
Option ‘C’.
