Hayter R324T User Manual

1.12
1.12

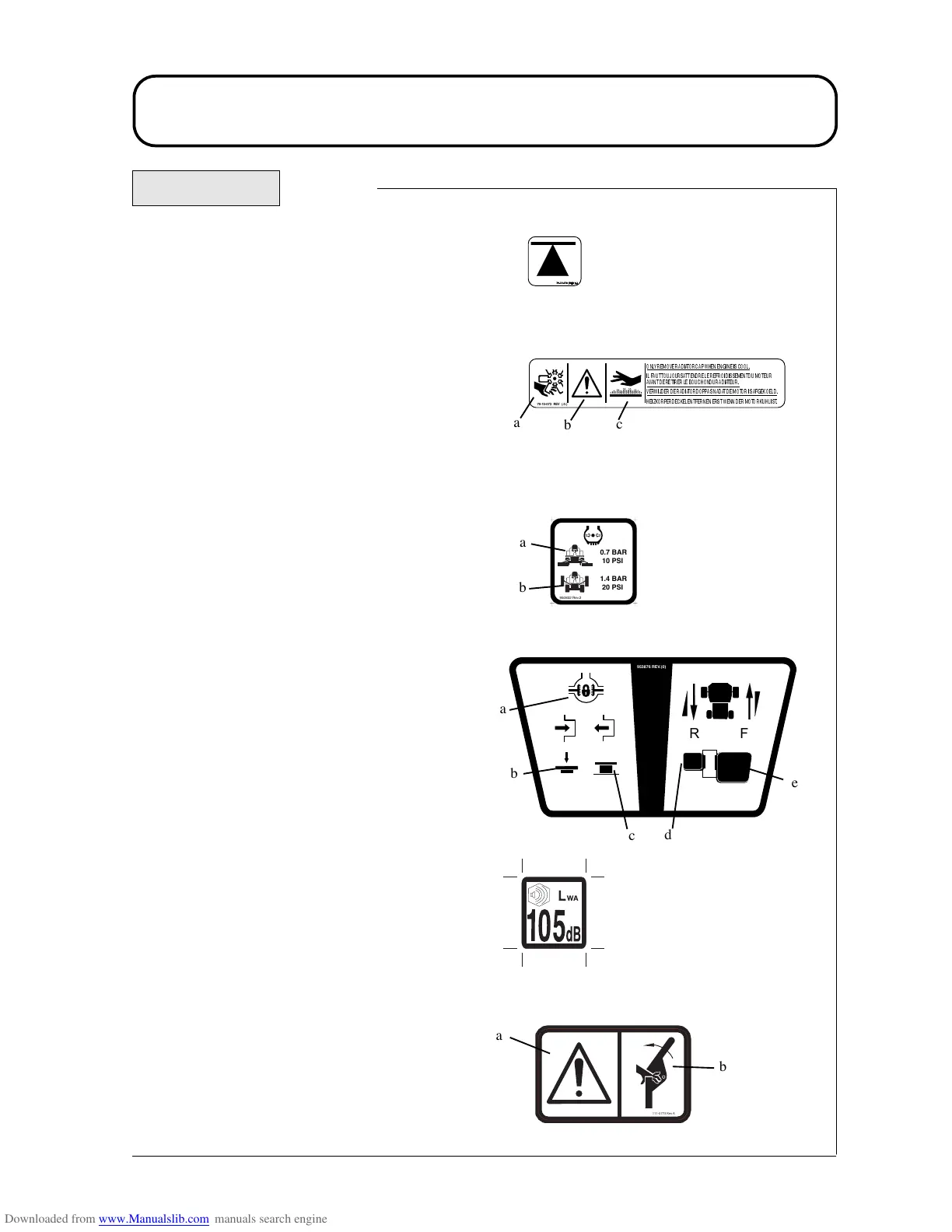

SAFETY PRECAUTIONS
DECALS Continued.
Decal - Jacking / Support Point
Part No: 70-13-072
Location: Front Axle - 2 Points
Rear Towing Eye
Jacking and support point
Decal - Engine Fan / Radiator
Part No: 70-13-073
Location: Engine Fan Cowl
a) Danger of severing fingers
b) Caution
c) Warning - Hot surfaces
Decal - Tyre Pressure
Part No. 950832 (2)
Location: LH/RH Chassis - 4 Places
a) Mowing
b) Road travel
Decal - Diff Lock / Control Pedal
Part No: 953876
Location: Centre Platform
a) Differential lock
b) Depress to engage diff-lock
c) Release to dis-engage diff-lock
d) Reverse speed - directional control
e) Forward speed - directional control
Decal - Noise
Part No. 922854
Location: Base of Seat on GRP Platform
Decal - Warning Crush Hazard
Part No. 111-0773(A)
A = Safety Alert - Be aware to the possibility of injury
B = Crushing of fingers. Force applied from side.
HEIZKORPERDECKELENTFERNEN ERSTWENNDERMOTORKUHLIST.
ONLYREMOVE RADIATORCAPWHEN ENGINE IS COOL.
VERWIJDERDE RADIATORDOPPASNADATDE MOTOR ISAFGEKOELD.
IL FAUTTOUJOURSATTENDRE LE REFROIDISSEMENTDUMOTEUR
AVANTDE RETIRER LE BOUCHONDURADIATEUR.
70-13-073 REV (.0.)
950832 Rev.2
0.7 BAR
10 PSI
1.4 BAR
20 PSI
a
b
c
a
b
R
F
953876 REV.(0)
a
b
c
d
e
111-0773 Rev A
a
b
