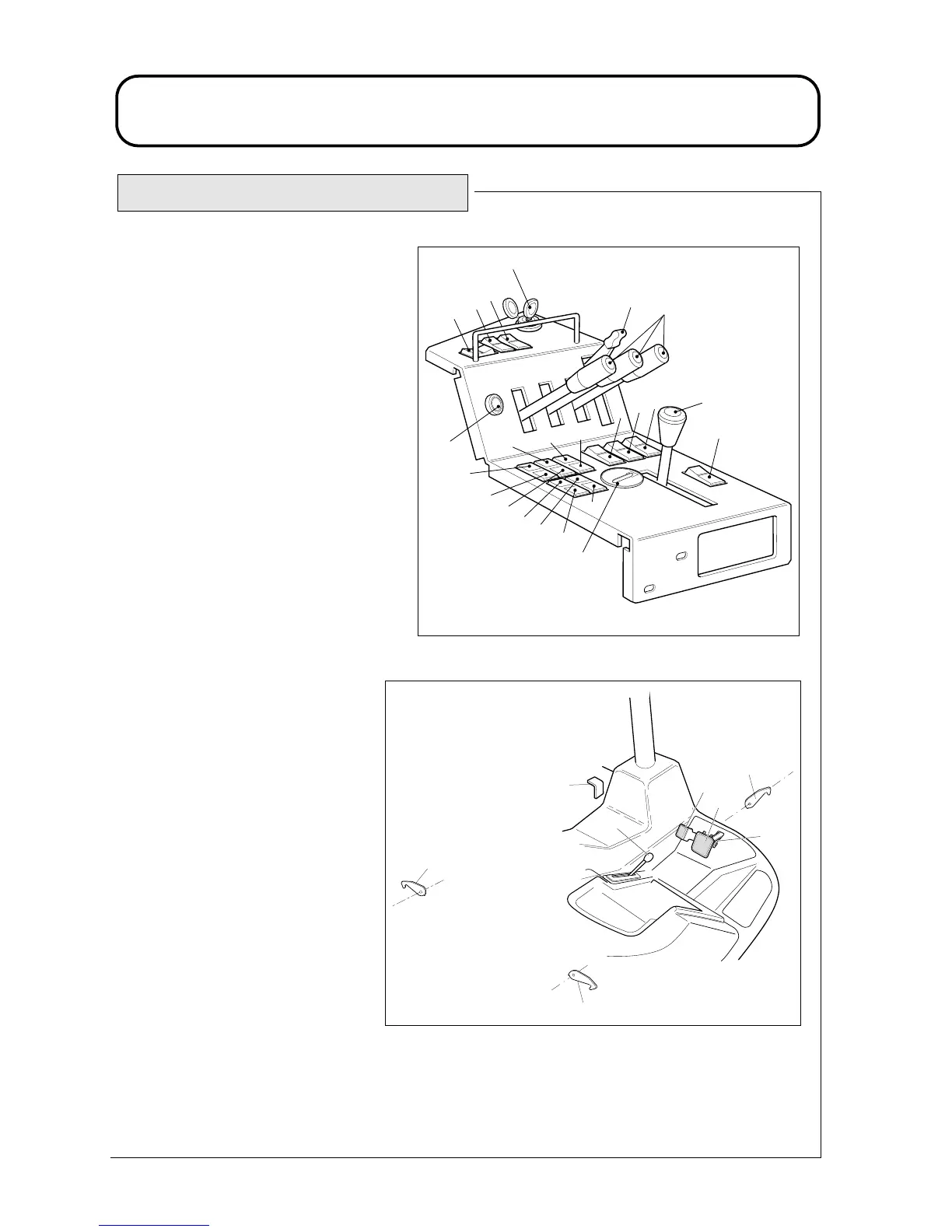

OPERATING THE MOWER
1. Parking brake lever.
2. Lighting switch
(supplied with lighting kit).
3. Warning beacon switch
(supplied with beacon kit).
4. Hazard warning switch
(supplied with lighting kit).
5. Cutterdeck position controls.
6. Throttle control lever.
7. Ignition key.
8. Cutterdeck drive switch.
9. Dip beam / main beam light switch
(supplied with lighting kit).
10. Direction indicator switch
(supplied with lighting kit).
11. Horn button.
12. Transmission oil filter indicator.
13. Oil pressure indicator.
14. Transmission temperature indicator.
15. Return oil filter indicator.
16. Battery warning indicator.
17. Engine temperature warning indicator.
18. Glow plug indicator.
19. Cutterdeck drive off indicator.
20. Parking brake indicator.
21. Transmission neutral indicator.
22. Forward travel speed backstop lever.
23. Work/Transport’ mode switch.
24. Hour meter.
25. Forward travel speed backstop cam.
26. Front cutterdeck transport latch.
27. Reverse travel pedal
28. LH wing unit transport latch.
29. RH wing unit transport latch.
30. Differential lock pedal.
31. Forward travel pedal.
32. Wash / wipe switch
(supplied with cab kit).
4P994C04A
1
2
5
6
10
9
4
7
8
11
14
13
12
15
16
18
19
20
21
17
3
23
24
HOURS
QUARTZ
CURTIS
1
10
1D994C01A (1)
29
28
26
31
30
25
27
22
IDENTIFICATION OF CONTROLS
