WARNING : PREVENT ACCIDENTS - Ensure that the mode selected is appropriate to the mode of
operation of the machine.
Select ‘Work’ mode when operating the mower in conditions of poor traction when maximum tractive per-
formance is required. Selecting ‘Work’ mode will enable the use of the differential lock.
Select ‘Transport’ mode when operating the mower in conditions of good traction. For example when trav-
elling on the public highway or mowing large, level, open areas. Selecting ‘Transport’ mode in these condi-
tions will reduce transmission system wear and tear.
Differential lock is not available for use when ‘Transport’ mode is selected.

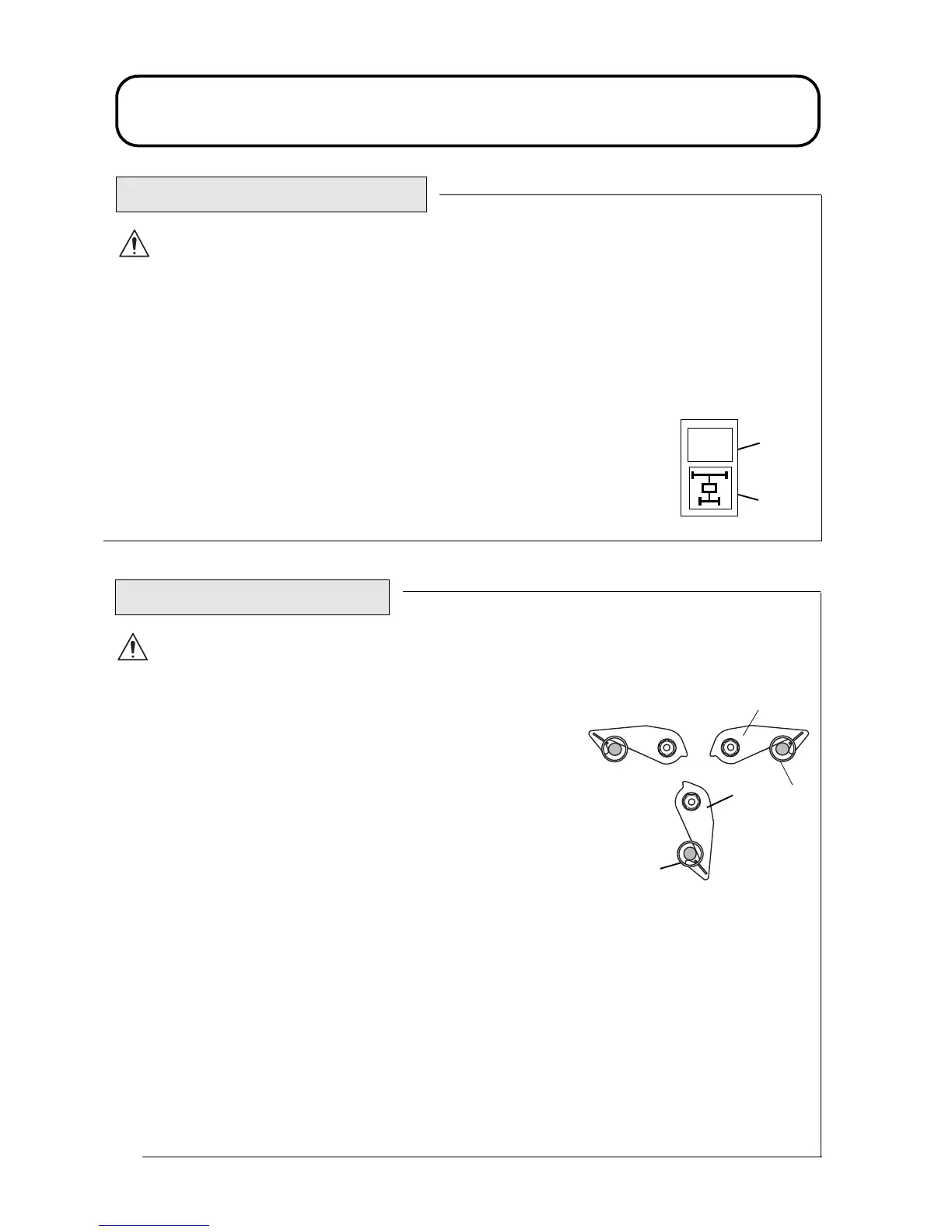

1. Transport Mode
2. Work Mode
1.28
1.28
OPERATING THE MOWER
TRANSPORT LATCHES
WARNING : PREVENT ACCIDENTS - ALWAYS raise the
cutterdecks to the transport position and secure with the transport
latches and safety locks when travelling between work areas.
Wing cutterdeck transport latches:
Front Cutterdeck transport latch:
WARNING : PREVENT ACCIDENTS - Stored energy devices are
charged when the wing units are in the transport position. Always
operate the relevant lift controls to provide hydraulic support for the
cutterdeck suspensions before attempting to release the transport
latches.
1.
2.
1. Transport latch.
2. Safety lock.
WORK/TRANSPORT MODES
1
2
1.
2.
