1.51
1.51
Daily
50 Hour (W
eekly)
GREASE POINTS
MAINTENANCE
EVER
Y
50 HOURS
Perform routine checks :
Refer - DAIL
Y
BEFORE USE.
Check wheel nut torque settings:
Front axle wheel nut torque setting - 200Nm (148 Ibf.ft).
Rear axle wheel nut torque setting - 54 Nm (40 Ibf.ft).

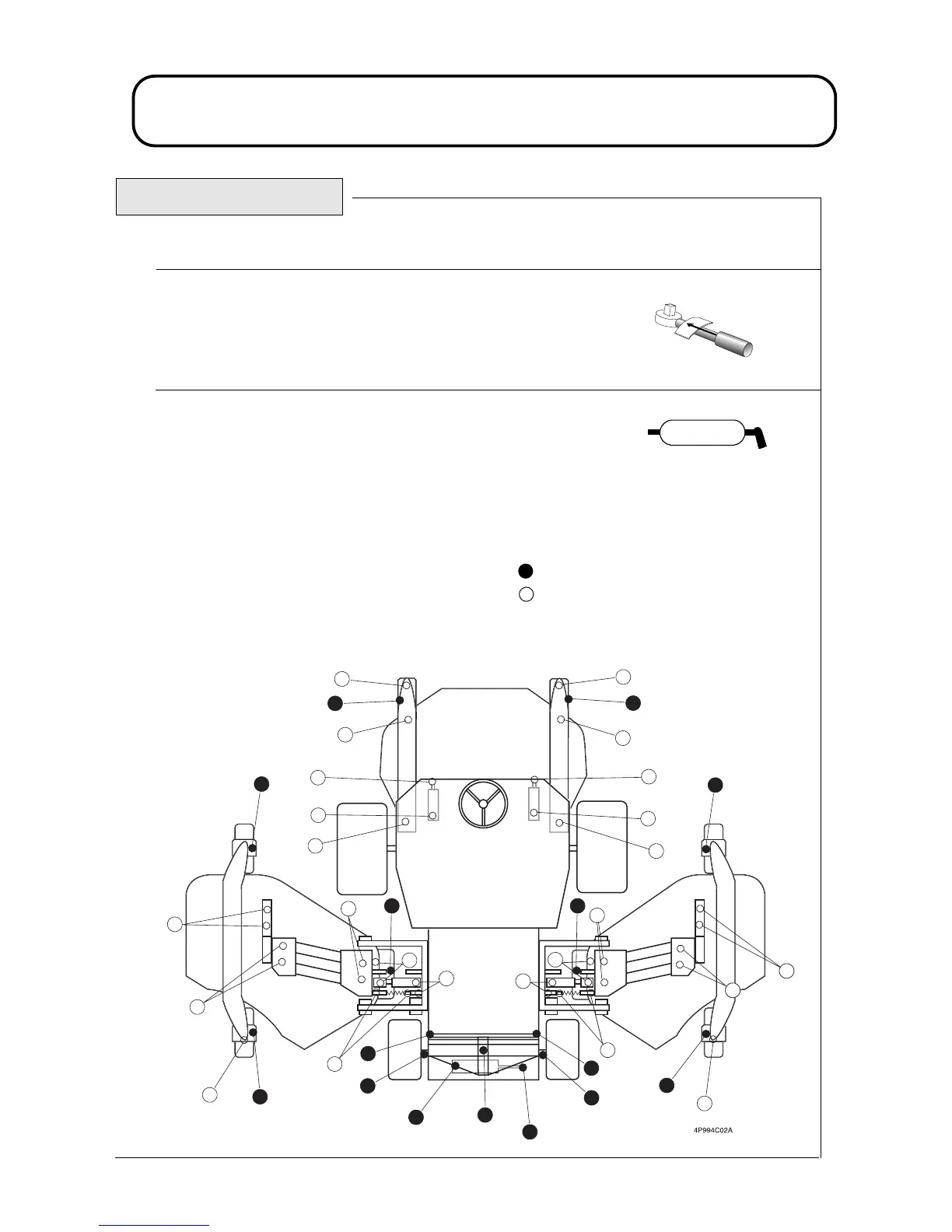

Grease pivot points :
Clean and grease all grease points with a
good quality compound of the grade specified, refer - SPECI-
FICA
TIONS.
Replace any grease nipples which are damaged.
50
52
