AED9101D
18 I3563-1.0 en
the relevant connections for the bridge excitation voltage,
i.e. 2' to 2 and 3' to 3 (Fig. 6.4 or Fig. 6.3).
6.2 Connecting the supply voltage
The required voltage supply is an extra-low voltage (10 ...
30 V
DC
) with safe disconnection from the mains. The
maximum current consumption is:
I
max
+ 100mA )
bridgeexcitationvoltageU
B
+ 5V
bridgeresistanceR
B
The actual current consumption depends on the level of
the voltage supply and falls if the supply voltage is
higher.
U
v
+10...30 V
GND
WH
HBM color code:
RD = red
WH = white
RD
AED9101D
TE1
TE4
1
2
16
1
15
7

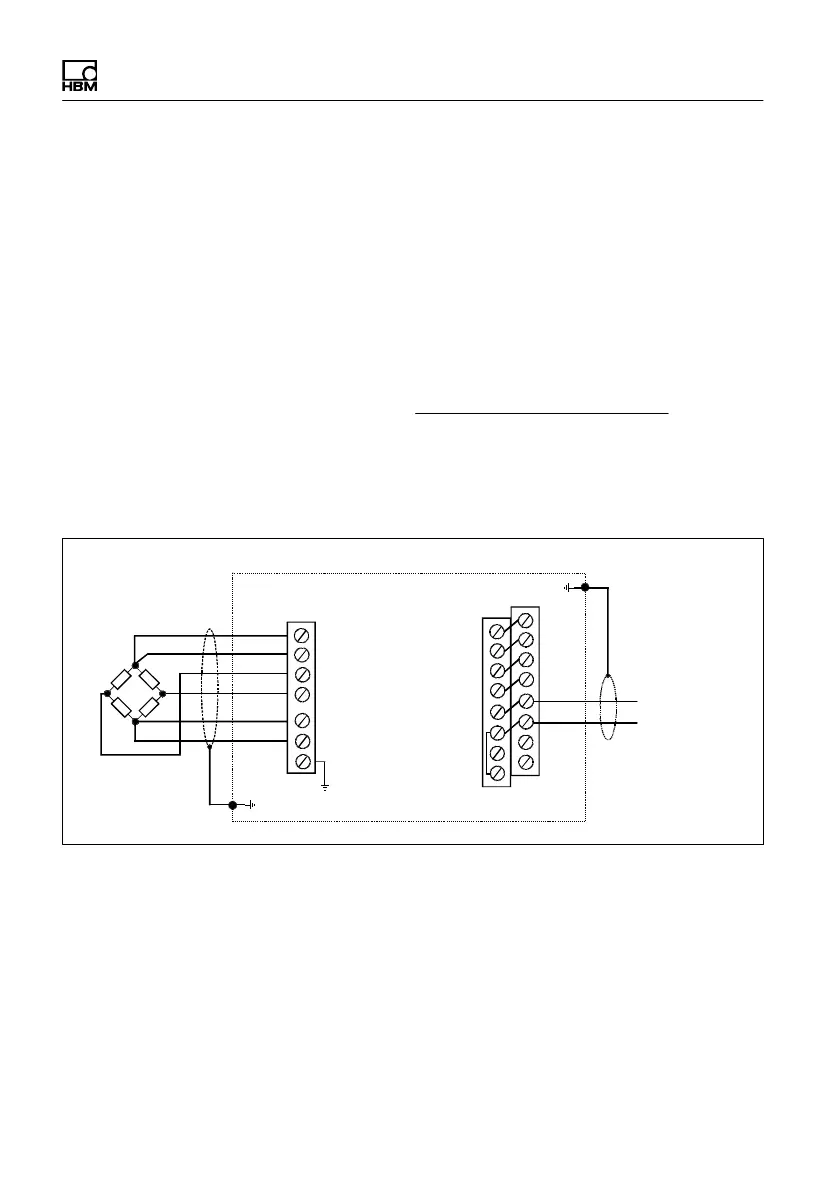

Fig. 6.5 Connecting the voltage supply
The voltage supply leads can be routed together with the
interface leads in one cable, or you can use a separate
cable. If several AEDs are being supplied by one cable,
note the voltage drop over the cable, so that the supply
voltage to the AEDs does not get too low. The voltage
