10 Preparing the Stud Welding Gun

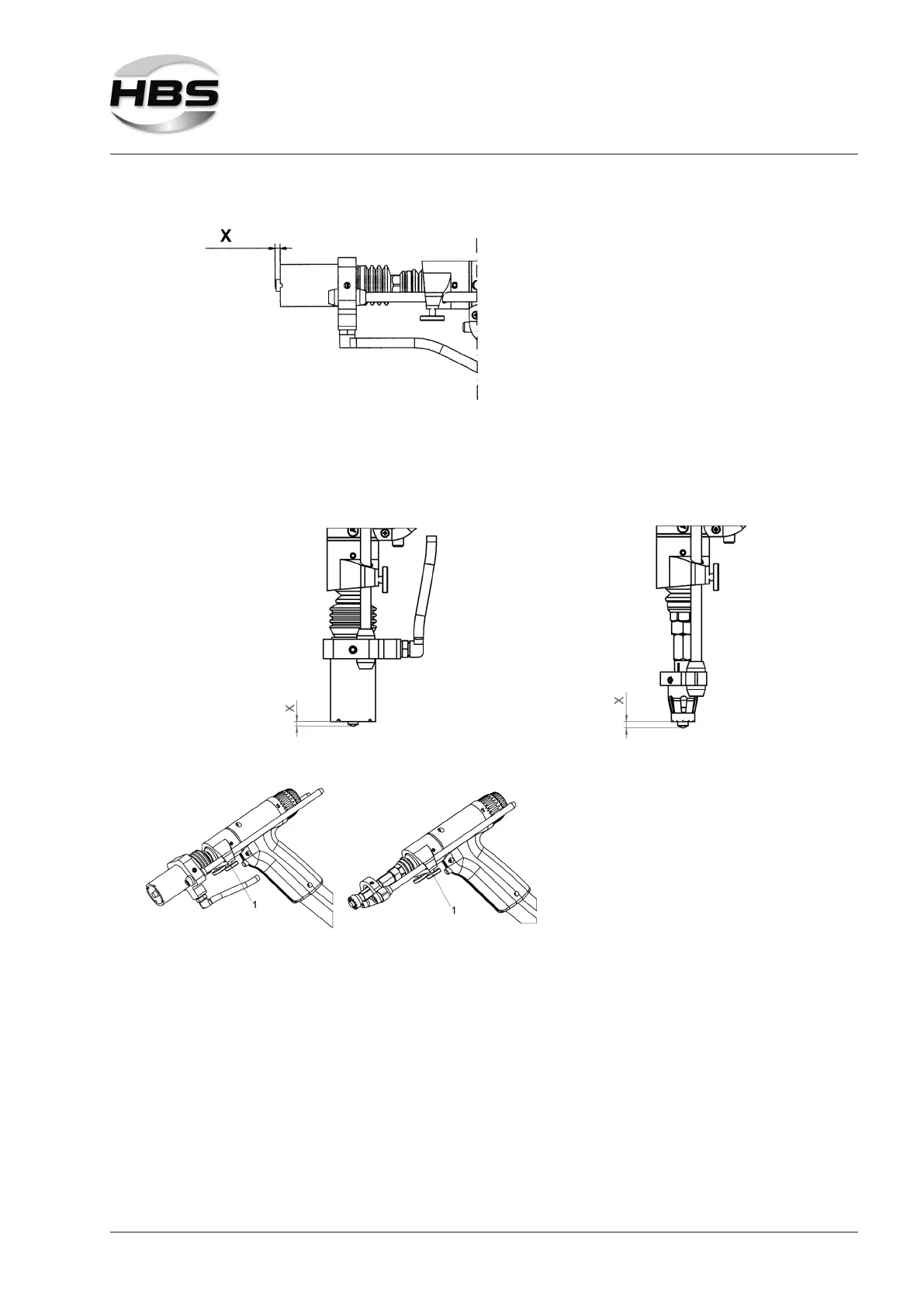

X - Insertion depth (Protrusion)
Set the insertion depth (protrusion)
(see table in 10.3).
To do this, move the leg assembly.
Insertion depth X
Welding with shielding gas Welding with ceramic ferrule
Shielding gas leg assembly Ceramic leg assembly
1 - Knurled cap screws
Clamp the legs with the knurled
cap screws (1).
