10 Preparing the Stud Welding Gun

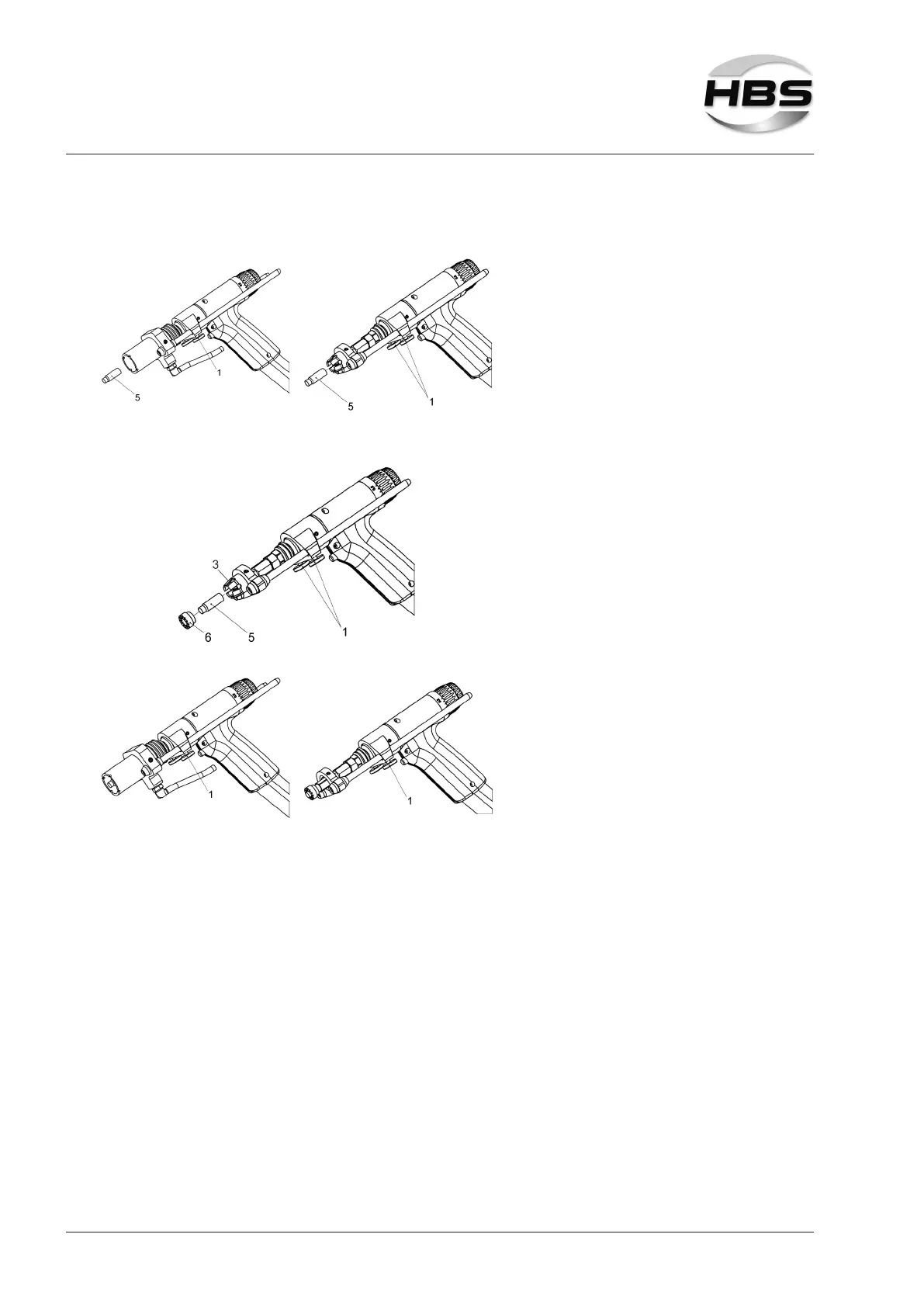

Setting the Insertion Depth (Protrusion)
Shielding gas leg assembly Ceramic leg assembly
1 - Knurled cap screws
5 - Welding element
 Place a welding element onto the
chuck.
3 - Ceramic ferrule grip
6 - Ceramic ferrule
If you are working with a ceramic
leg assembly, then
 place the ceramic ferrule (6) onto
the ceramic ferrule grip (3).
Shielding gas leg assembly Ceramic leg assembly
1 - Knurled cap screws
 Loosen the knurled cap screws.
