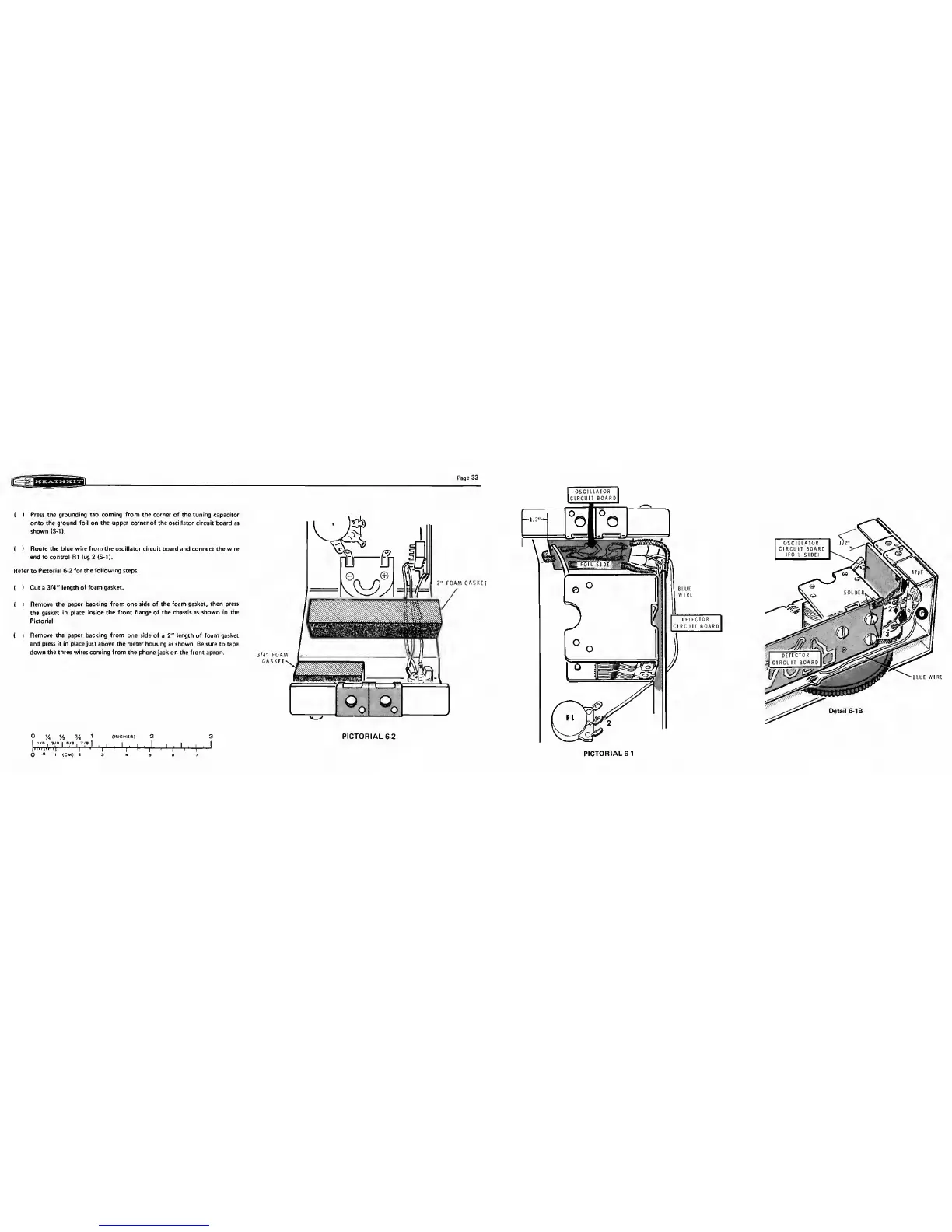

Heathkit HD-1250 - Page 35

Page
33
( )
Press the
grounding
tab
coming from
the corner
of
the tuning capacitor
onto the
ground foil on the upper corner of the oscillator circuit
board as
shown (S-1).
(
) Route the blue
wire from the oscillator
circuit board and connect the wire
end
to
control
R1
lug
2 (S-1).
Refer
to
Pictorial
6-2
for the
following
steps.
{
) Cut a
3/4"
length of foam gasket.
(
)
Remove the
paper backing from one side of the foam gasket, then
press
the gasket
in place
inside the front flange of the chassis as
shown in
the
Pictorial.
(
)
Remove
the paper backing from
one side of
a
2"
length of foam
gasket
and press it in place just above the meter
housing as shown. Be sure to tape
down
the three wires coming from the
phone jack on the front apron.
3/4"
FOAM
GASKET
lb—
A
2"
FOAM
GASKET
% n
*a
i (INCHES)
I
.
PICTORIAL
6-2
PICTORIAL
6-1
