SSB Filter 404-283
Circuit
This filter was purchased second hand an
d received with a fault in the form of a 30dB
dip in the passband. Opening up the filter rev
eal
ed a broken PCB track which has
subsequently been repaired and the f
ilter now exhibits the correct overall response.

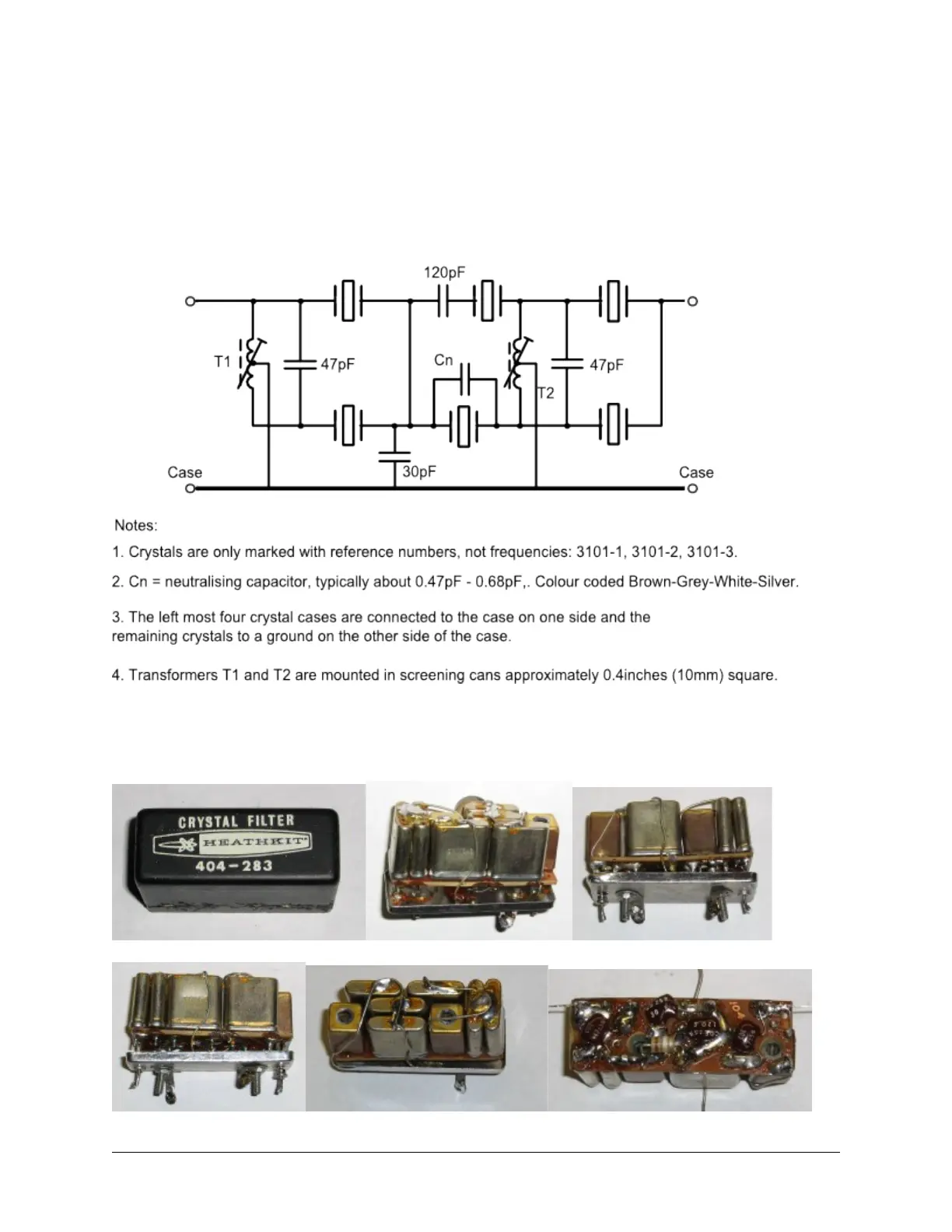

Figure 20. SSB Filter 404-283 Circuit
Heathkit Filters
Page 105
