Heathkit HW-9 User Manual

NOTE: To
find the PART NUMBER of a component
for the
purpose
of ordering
a
replacement part:
B
Locate
this same
number in the
"Circuit Com-
ponent Number"
column of the
correspond-
ing "Parts
List."
A.
Find the circuit component number (R5,
C3,
etc.) on the
X-Ray View.
C Adjacent to the
circuit
component
number,
you
will find the PART
NUMBER
and DE-
SCRIPTION
which must
be supplied
when
you
order a
replacement part.

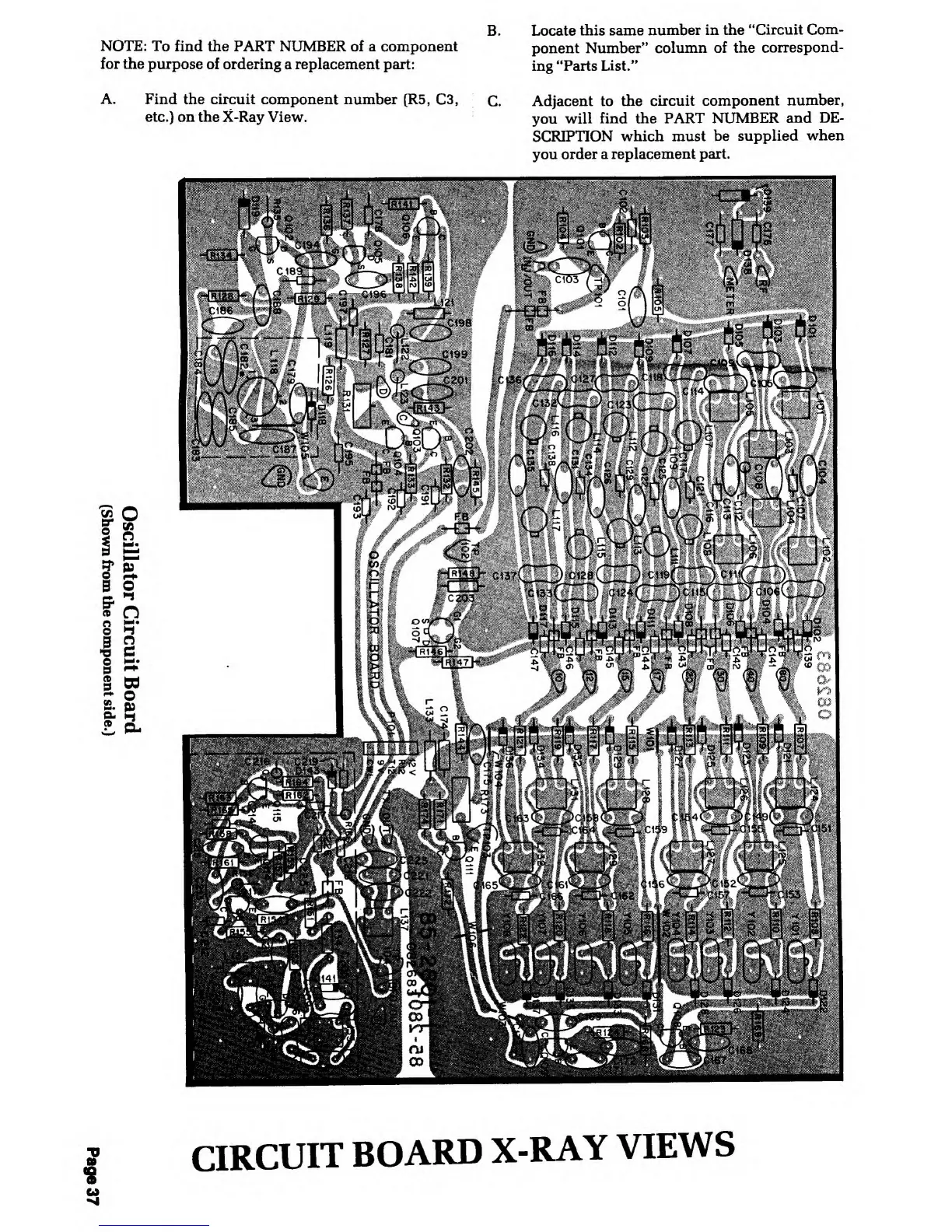

CIRCUIT
BOARD
X-RAY
VIEWS
