Heathkit HW-9 User Manual

Page
26

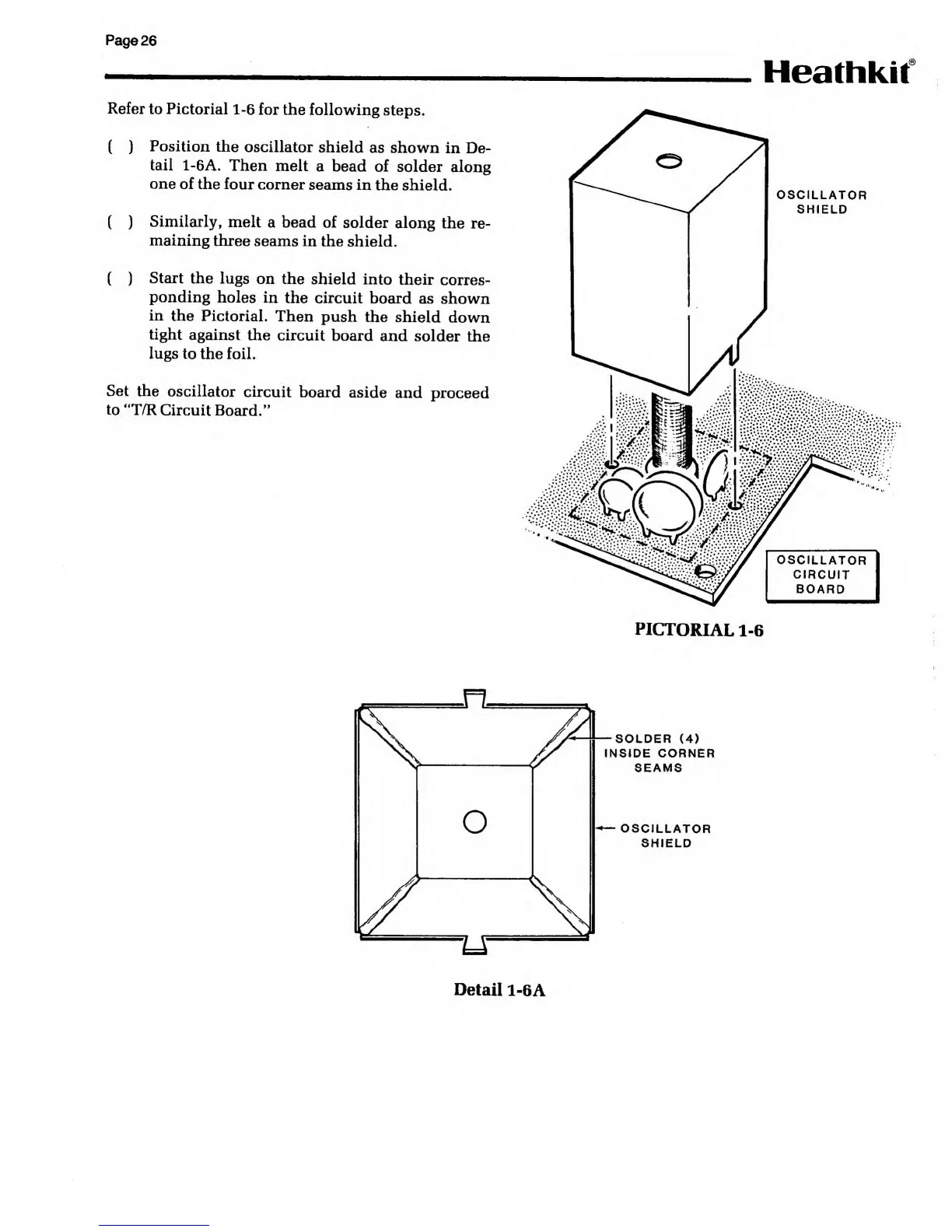

Refer
to Pictorial
1-6
for the
following
steps.
(
)
Position
the
oscillator
shield
as shown
in De-
tail
1-6A. Then
melt
a bead of
solder along
one
of the four
corner
seams in
the shield.
( )
Similarly,
melt
a bead of
solder along
the re-
maining
three
seams in
the
shield.
(
)
Start
the lugs
on the
shield into
their
corres-
ponding
holes in
the circuit
board
as shown
in
the Pictorial.
Then
push
the shield
down
and
lugs
to the foil.
Set the
oscillator
circuit
board
aside
and proceed
to
"T/R
Circuit Board."
Heathkif
OSCILLATOR
SHIELD
::.-.v.V.
'
.
.
•
•
* •
*
•
• •
•
»^ ^
1
IN-
- —
OSCILLATOR
CIRCUIT
BOARD
PICTORIAL
1-6
SOLDER
(4)
INSIDE CORNER
SEAMS
OSCILLATOR
SHIELD
Detail
1-6A
