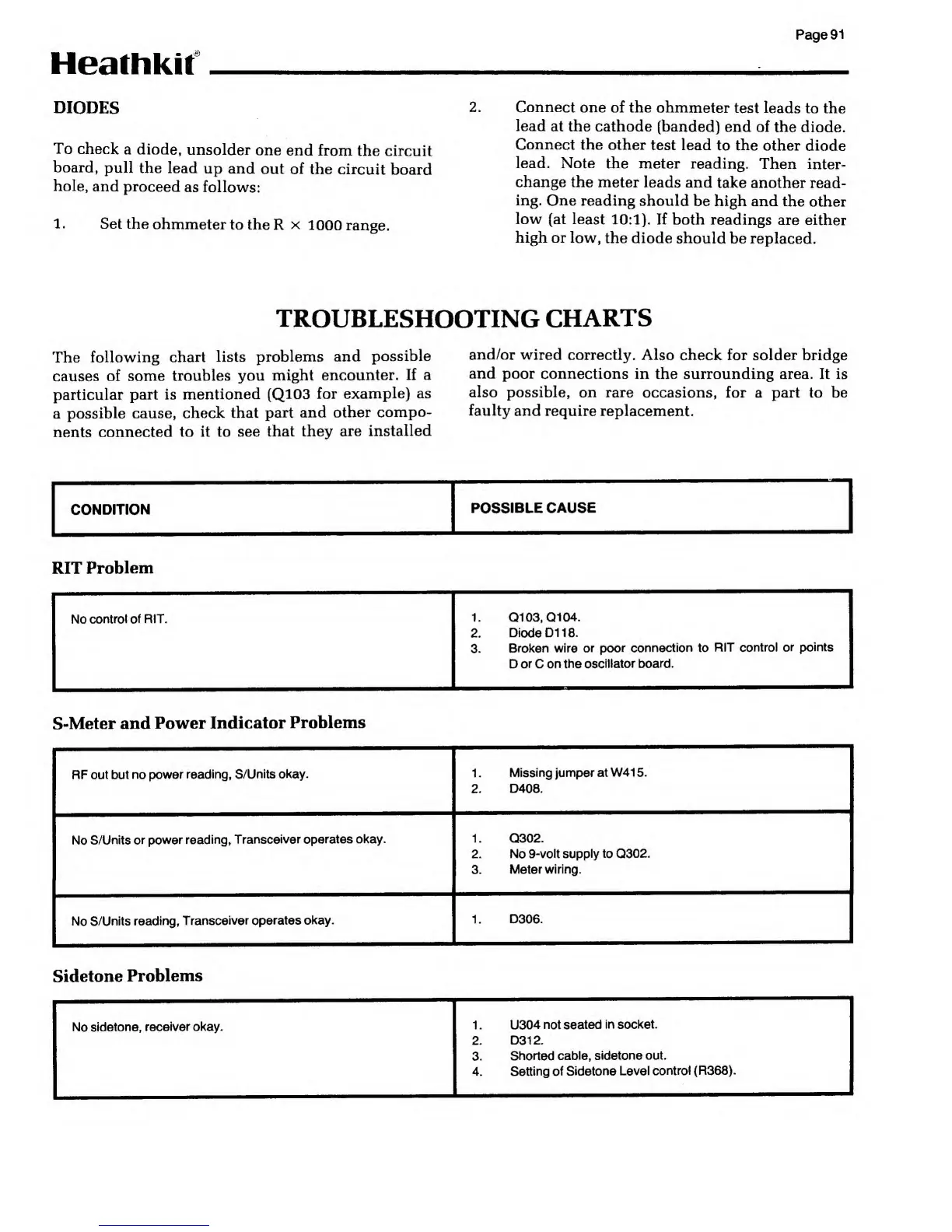

Page
91
Heathkit
DIODES
To
check
a diode,
unsolder
one
end from
the circuit
board,
pull
the lead
up and
out of
the circuit
board
hole,
and proceed
as follows:
1. Set the
ohmmeter
to the
R
x
1000
range.
2. Connect
one of the ohmmeter
test leads
to the
lead
at the cathode (banded)
end of the
diode.
Connect
the other
test lead to the
other diode
lead. Note
the meter reading.
Then inter-
change the
meter leads and
take another
read-
ing. One
reading should
be high and the
other
low
(at least
10:1). If both readings
are either
high or low,
the diode
should be replaced.
TROUBLESHOOTING
CHARTS
The
following chart
lists
problems and
possible
causes of some
troubles you
might
encounter. If
a
particular
part is
mentioned
(Q103
for
example) as
and/or wired
correctly. Also
check for
solder
bridge
and poor
connections in the surrounding area. It is
also possible,
on
rare
occasions, for a part to be
a
possible cause,
check that
part and other
compo-
faulty
and require replacement,
nents
connected
to it to see
that they
are
installed
CONDITION
POSSIBLE
CAUSE
RIT
Problem
No
control of RIT
1.
2.
3.
Q103.Q104.
Diode D1
18.
Broken wire or
poor connection to
RIT control
or points
D
or
C on
the oscillator
board.
S-Meter and
Power
Indicator
Problems
RF out but
no power
reading, S/Units okay.
1.
Missing jumper at W41
5.
2.
D408.
No
S/Units or power
reading,
Transceiver operates okay.
1.
Q302.
2.
No
9-volt
supply to Q302.
3.
Meter wiring.
No S/Units
reading,
Transceiver operates
okay.
1. D306.
Sidetone
Problems
