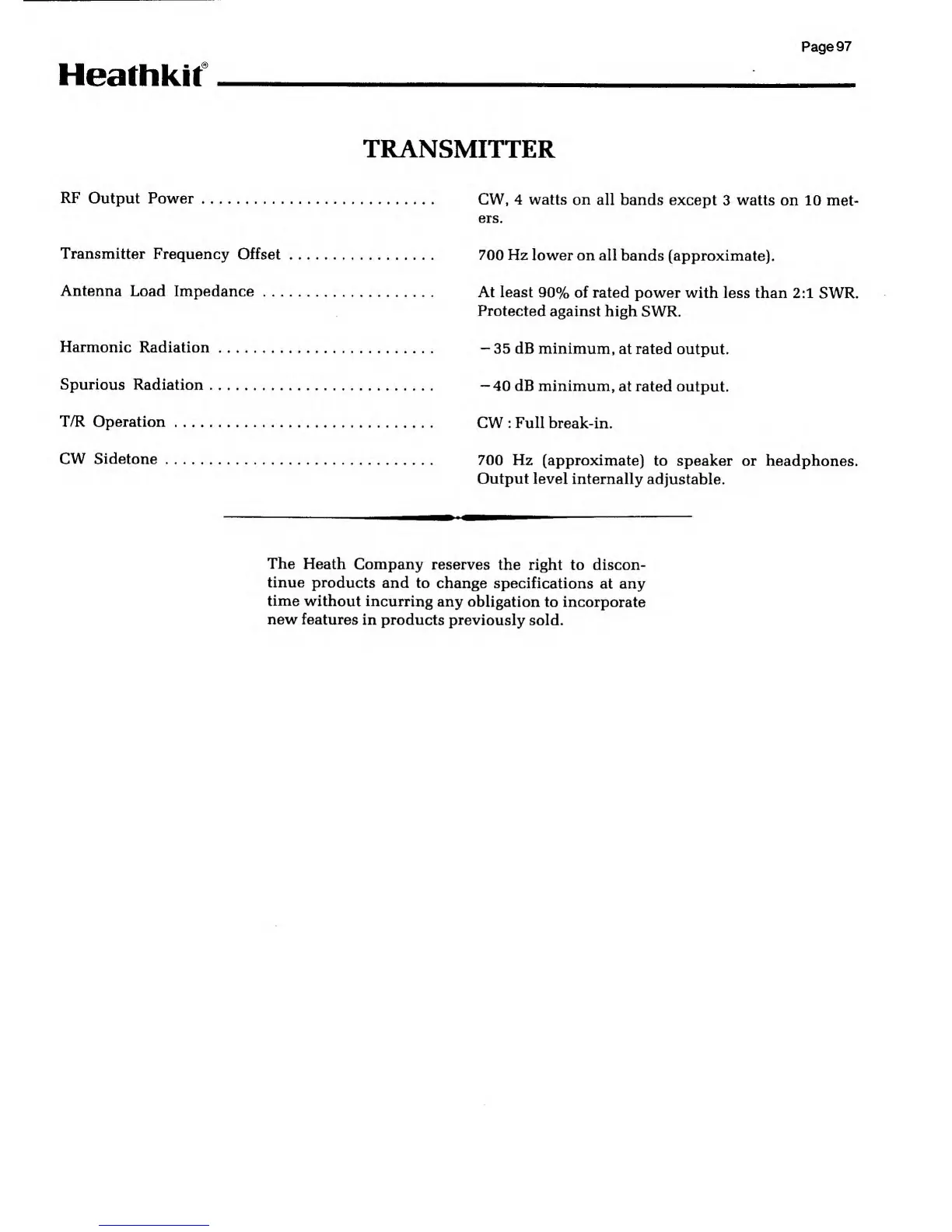

Heathkit HW-9 - Transmitter Performance Specifications

Heathkif
Page
97
TRANSMITTER
RF
Output Power
CW, 4 watts on
all bands except
3
watts
on 10 met-
ers.
Transmitter
Frequency Offset
700
Hz lower on all
bands (approximate).
Antenna
Load Impedance
At least
90% of rated power with
less than 2:1
SWR.
Protected
against high
SWR.
Harmonic
Radiation
-
35 dB minimum,
at rated
output.
Spurious
Radiation -40
dB minimum,
at rated output.
T/R Operation
CW : Full
break-in.
CW Sidetone
700
Hz (approximate)
to speaker or headphones.
Output level
internally
adjustable.
The
Heath Company
reserves
the right to discon-
tinue products
and to
change specifications
at any
time
without incurring
any obligation
to incorporate
new features
in products previously
sold.
