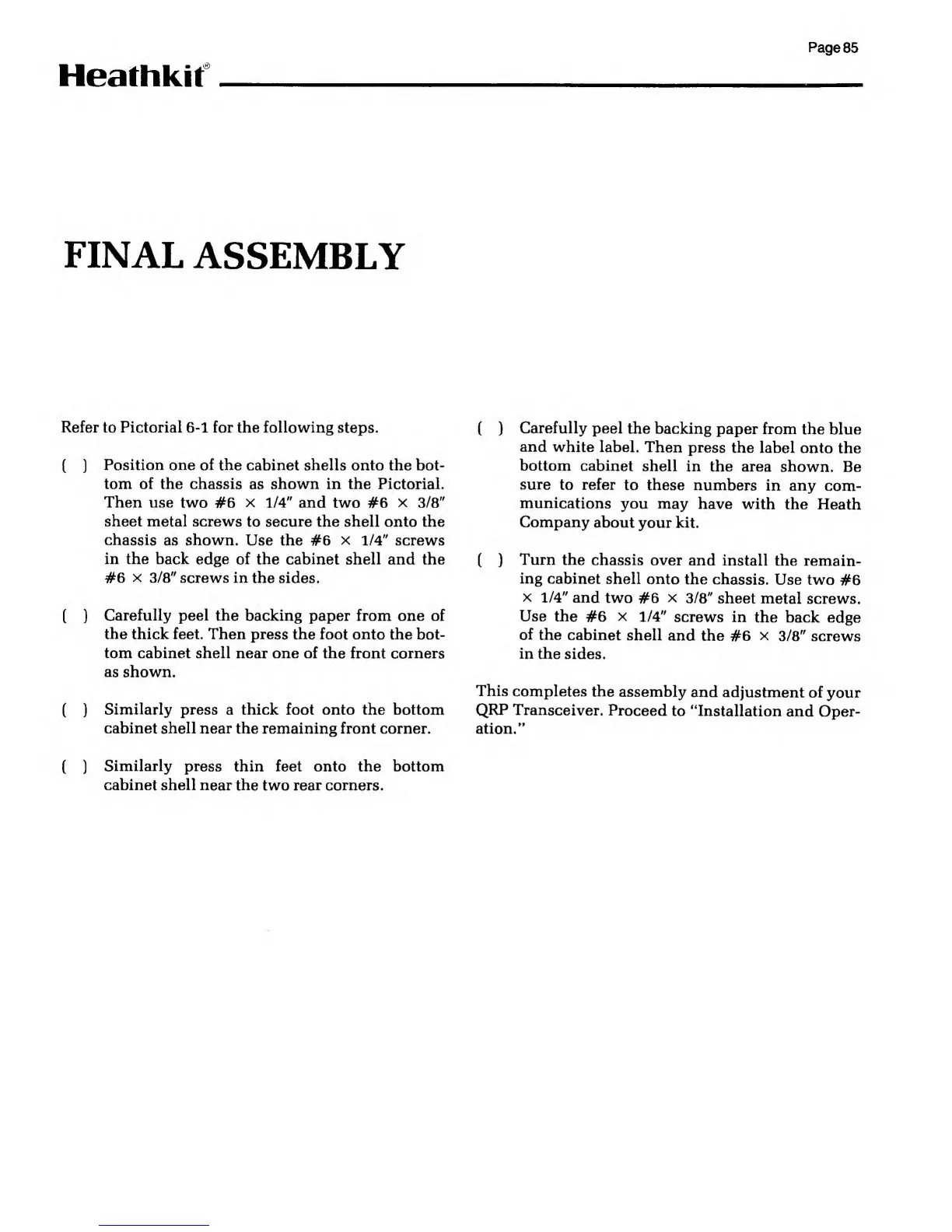

Heathkif
Page
85
FINAL
ASSEMBLY
Refer to Pictorial
6-1
for the following
steps.
(
)
Position one
of
the
cabinet shells onto the bot-
tom of the chassis
as
shown in the Pictorial.
Then use two
#6
x
1/4"
and two #6
x
3/8"
sheet metal screws
to secure the shell onto the
chassis
as
shown.
Use the #6
x
1/4"
screws
in the back
edge of the cabinet shell and the
#6
x
3/8"
screws in
the sides.
( )
Carefully peel
the backing paper from one of
the thick feet. Then press the
foot
onto
the bot-
tom cabinet shell near one of the
front
corners
as shown.
( )
Similarly press a thick foot onto the bottom
cabinet shell
near the remaining front corner.
( )
Similarly
press thin feet onto the bottom
cabinet shell near
the two rear corners.
( )
Carefully
peel the backing
paper from
the blue
and white
label.
Then press
the label
onto the
bottom cabinet
shell
in the area
shown. Be
sure
to refer
to these numbers
in any
com-
munications
you
may have with
the
Heath
Company
about
your kit.
(
)
Turn
the chassis over
and install
the remain-
ing
cabinet shell onto
the chassis.
Use two
#6
x
1/4"
and
two
#6
x
3/8"
sheet metal
screws.
Use the
#6
x
1/4"
screws in
the back edge
of
the cabinet
shell
and the
#6
x
3/8"
screws
in
the sides.
This
completes the
assembly
and adjustment
of your
QRP Transceiver.
Proceed
to "Installation
and Oper-
ation."
