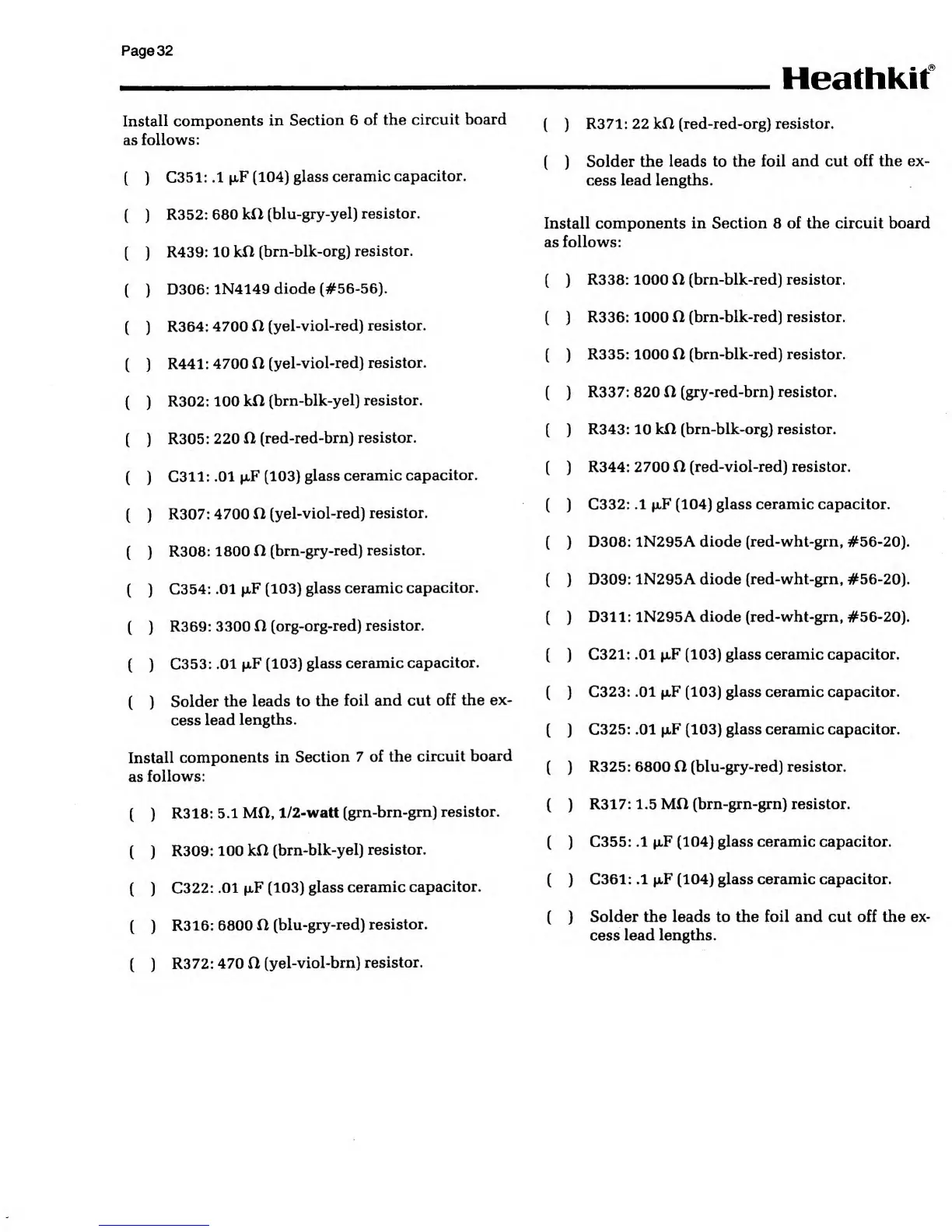

Page 32
Heathkif
nstall
components in
Section 6
of the
circuit
board
as
follows:
(
)
C351:
.1
\lF
(104)
glass ceramic
capacitor.
)
R352:
680 kft
(blu-gry-yel)
resistor.
)
R439:
10 kft
(brn-blk-org)
resistor.
)
D306:
1N4149
diode (#56-56).
)
R364:
4700 ft
(yel-viol-red)
resistor.
)
R441 :
4700 ft
(yel-viol-red)
resistor.
)
R302:
100 kft
(brn-blk-yel)
resistor.
)
R305:
220 ft
(red-red-brn)
resistor.
)
C311:
.01
jjlF
(103)
glass
ceramic
capacitor.
)
R307:
4700 ft
(yel-viol-red)
resistor.
)
R308:
1800 ft
(brn-gry-red)
resistor.
)
C354:
.01 \l¥
(103)
glass
ceramic
capacitor.
)
R369:
3300 ft
(org-org-red)
resistor.
)
C353:
.01 \lF
(103)
glass
ceramic
capacitor.
)
Solder
the leads to
the
foil and cut
off the
ex-
cess lead
lengths.
nstall
components in
Section
7 of the
circuit
board
as
follows:
)
R318:
5.1 Mft,
1/2-watt
(grn-bm-grn)
resistor
)
R309:
100 kft
(brn-blk-yel)
resistor.
)
C322:
.01 jjlF
(103)
glass
ceramic
capacitor.
)
R316:
6800 ft
(blu-gry-red)
resistor.
)
R372:
470 ft
(yel-viol-brn)
resistor.
Ins
as
all
components in Section 8 of the circuit board
ollows:
R371:
22 kft (red-red-org) resistor.
Solder the
leads to the foil and cut
off the ex-
cess lead lengths.
R338: 1000 ft (brn-blk-red) resistor
R336:
1000 ft (brn-blk-red) resistor
R335: 1000 ft
(brn-blk-red) resistor.
R337: 820 ft (gry-red-brn)
resistor.
R343:
10 kft (brn-blk-org) resistor.
R344:
2700 ft (red-viol-red) resistor.
C332:
.1 \xF
(104)
glass ceramic capacitor.
D308: 1N295A
diode (red-wht-grn, #56-20).
D309:
1N295A diode (red-wht-grn, #56-20).
D311: 1N295A
diode (red-wht-grn,
#56-20).
C321: .01 \l¥
(103)
glass ceramic capacitor.
C323:
.01
jjiF
(103)
glass ceramic capacitor.
C325:
.01 jjiF
(103)
glass ceramic capacitor.
R325: 6800 ft (blu-gry-red) resistor.
R317:
1.5 Mft (brn-grn-grn) resistor.
C355:
.1 \lF
(104)
glass ceramic capacitor.
C361:
.1 ji,F
(104)
glass ceramic capacitor.
Solder the leads to the foil and cut off the ex-
cess
lead lengths.
