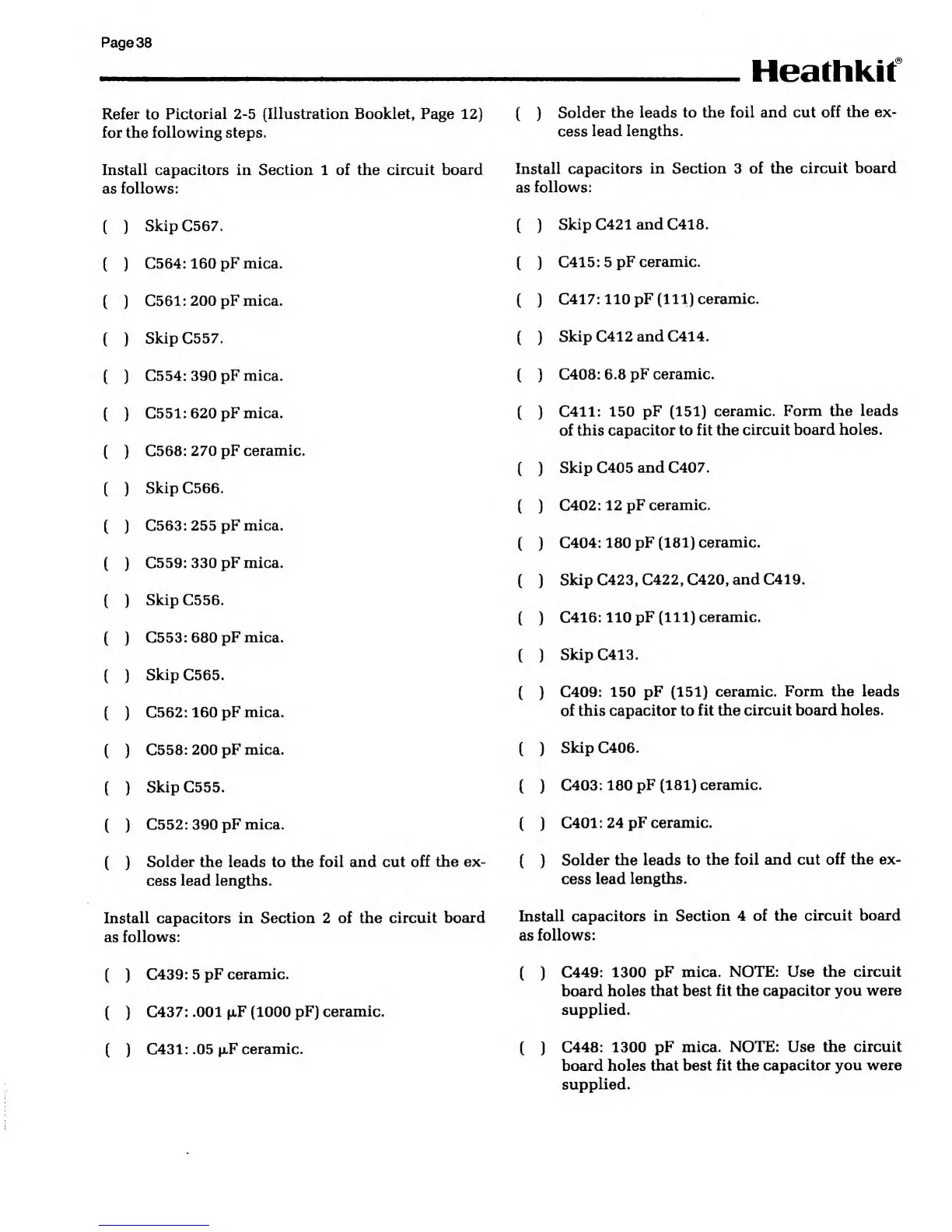

Heathkit HW-9 User Manual

Page
38
Heathkit
Refer to
Pictorial
2-5
(Illustration Booklet,
Page
12)
or the following steps.
ns
as
ns
as
all capacitors in Section 1 of the circuit
board
ollows:
Skip
C567.
C564:
160
pF mica.
C561:200
pF mica
Skip
C557.
C554: 390
pF mica.
C551:620
pF mica.
C568:
270 pF ceramic.
Skip
C566.
C563:255
pF mica.
C559:330pF mica
Skip C556.
C553:680
pF
mica
Skip
C565.
C562:
160 pF mica.
C558:
200 pF mica
Skip C555.
C552:390
pF mica.
Solder
the leads to the foil and cut
off the ex-
cess
lead lengths.
all capacitors in Section 2 of the
circuit board
ollows:
C439:
5 pF
ceramic.
C437:
.001
p,F
(1000
pF)
ceramic.
C431:
.05 jjlF
ceramic.
ns
as
)
Solder
the leads to the foil and cut
off the ex-
cess
lead lengths.
all
capacitors in Section 3 of the
circuit board
ollows:
as
Skip
C421
and
C418.
C415:
5 pF
ceramic.
C417:
110 pF
(111)
ceramic
Skip C412and C414.
C408:
6.8 pF ceramic.
C411:
150 pF
(151)
ceramic.
Form the leads
of this
capacitor to fit the
circuit board holes.
Skip C405
and
C407.
C402:
12 pF
ceramic.
C404: 180
pF
(181)
ceramic.
Skip
C423,
C422, C420,
and C419.
C416:
110 pF
(111)
ceramic.
Skip C413.
C409: 150
pF
(151)
ceramic.
Form the leads
of this capacitor to
fit the circuit board holes.
Skip C406.
C403:
180
pF
(181)
ceramic.
C401:24
pF ceramic.
Solder the leads to
the foil and cut
off the ex-
cess lead
lengths.
nstall capacitors in
Section 4 of the
circuit board
ollows:
C449:
1300 pF mica.
NOTE: Use the circuit
board holes that best
fit the capacitor you
were
supplied.
)
C448:
1300 pF mica.
NOTE: Use the circuit
board holes
that best fit the
capacitor
you
were
supplied.
