Heathkit
Refer to
Pictorial
3-4
for the
following
steps.
(
)
Reposition
the
subchassis
as
shown in
the
Pic-
torial
(note
that
the
edge
on
the
chassis
faces
downward).
(
)
Mount
6-32 x
1/2"
hardware
to
the
subchassis
at
CF,
CG,
CH,
CJ,
CK,
CL,
and
CN.
Tighten
the
hardware
finger
tight.
(
)
Similarly,
mount
6-32
x
1-3/8"
hardware to
the
subchassis
at CP
and CR.
Tighten
the hard-
ware
finger tight.
(
)

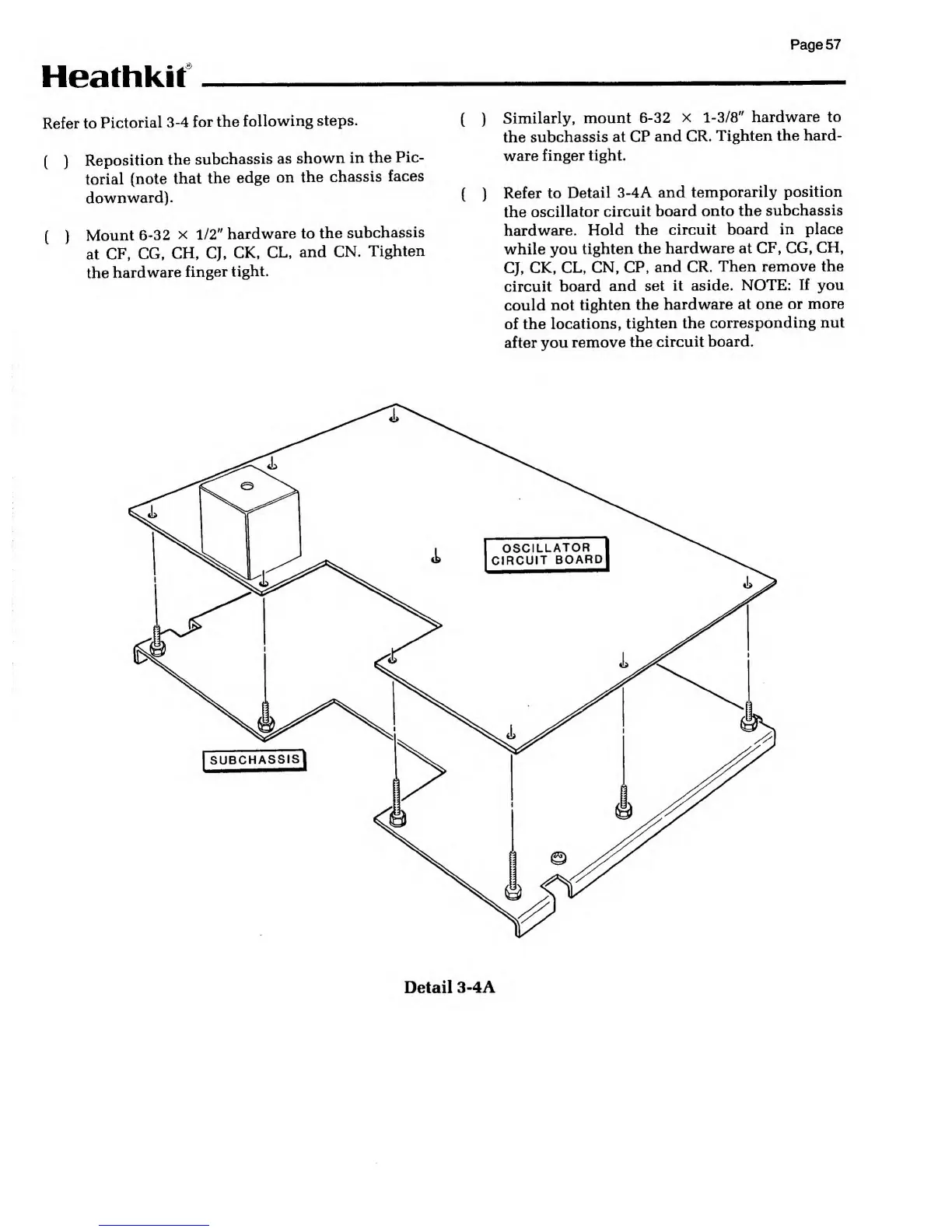

Refer to
Detail 3-4A
and
temporarily
position
the
oscillator
circuit board
onto the
subchassis
hardware.
Hold the
circuit
board in
place
while you
tighten
the
hardware at
CF, CG, CH,
CJ,
CK, CL,
CN, CP,
and CR.
Then
remove the
circuit board
and set
it aside.
NOTE:
If
you
could
not
tighten the
hardware at
one or
more
of the
locations,
tighten the
corresponding
nut
after you
remove
the
circuit board.
Detail
3-4A
