Heathkit SB-220 - Page 30

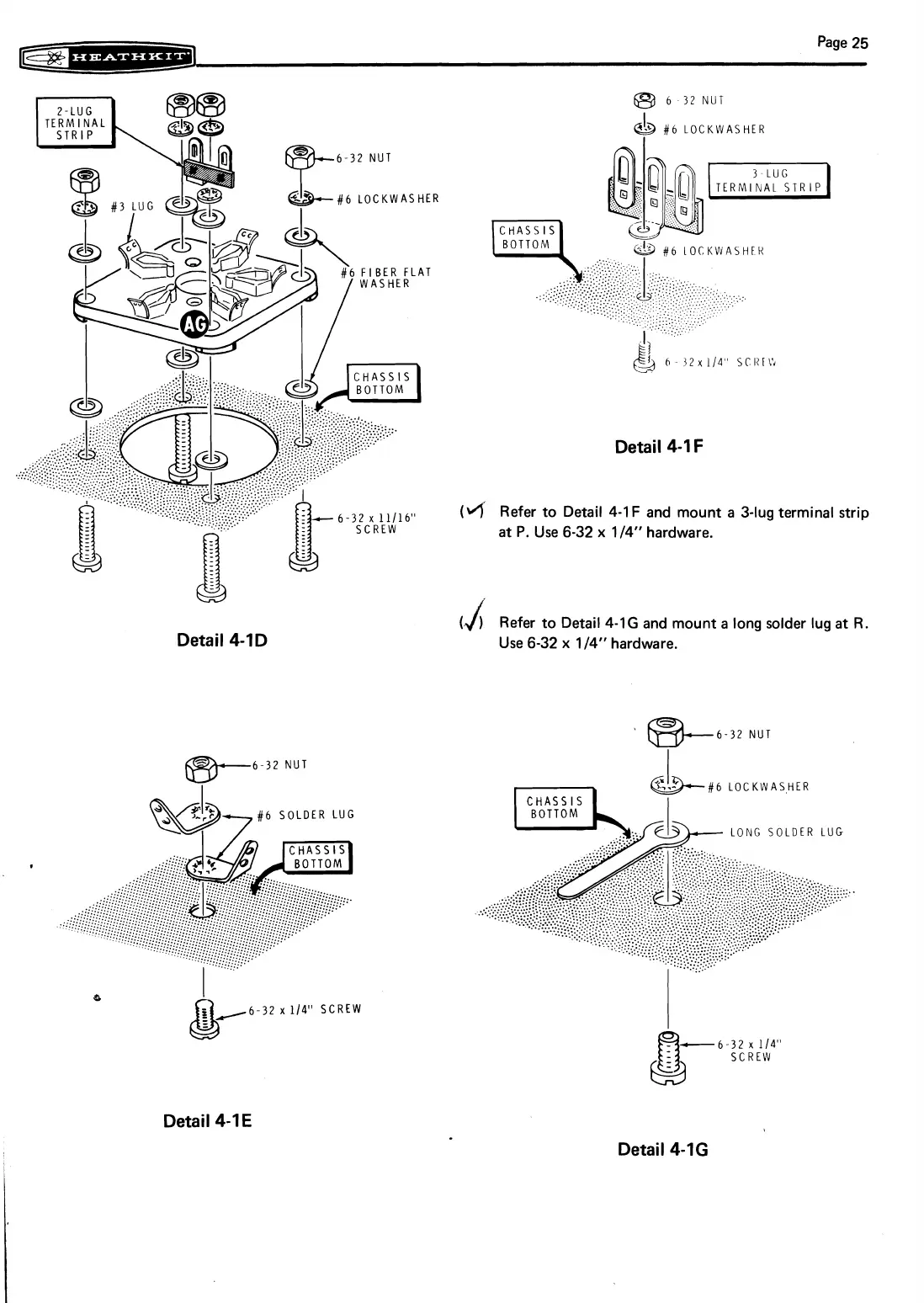

Page 25
@+-id
TERMINAL
STR
l P
BOTTOM
@ 6 32 NUT
& #6 LOCKWASHER
Detail 4-ID
w7#6 SOLDER LUG
8/6-32 x 114" SCREW
Detail 4-1 F
Refer to Detail 4-IF and mount a 3-lug terminal strip
at P. Use 6-32
x 114" hardware.
Refer to Detail 4-1G and mount a long solder lug at R.
Use 6-32
x 114" hardware.
#6 LOCKWASHER
LONG SOLDER LUG
0-6-32 x 1/4"
r SCREW
Detail 4-1 E
Detail 4-1G
