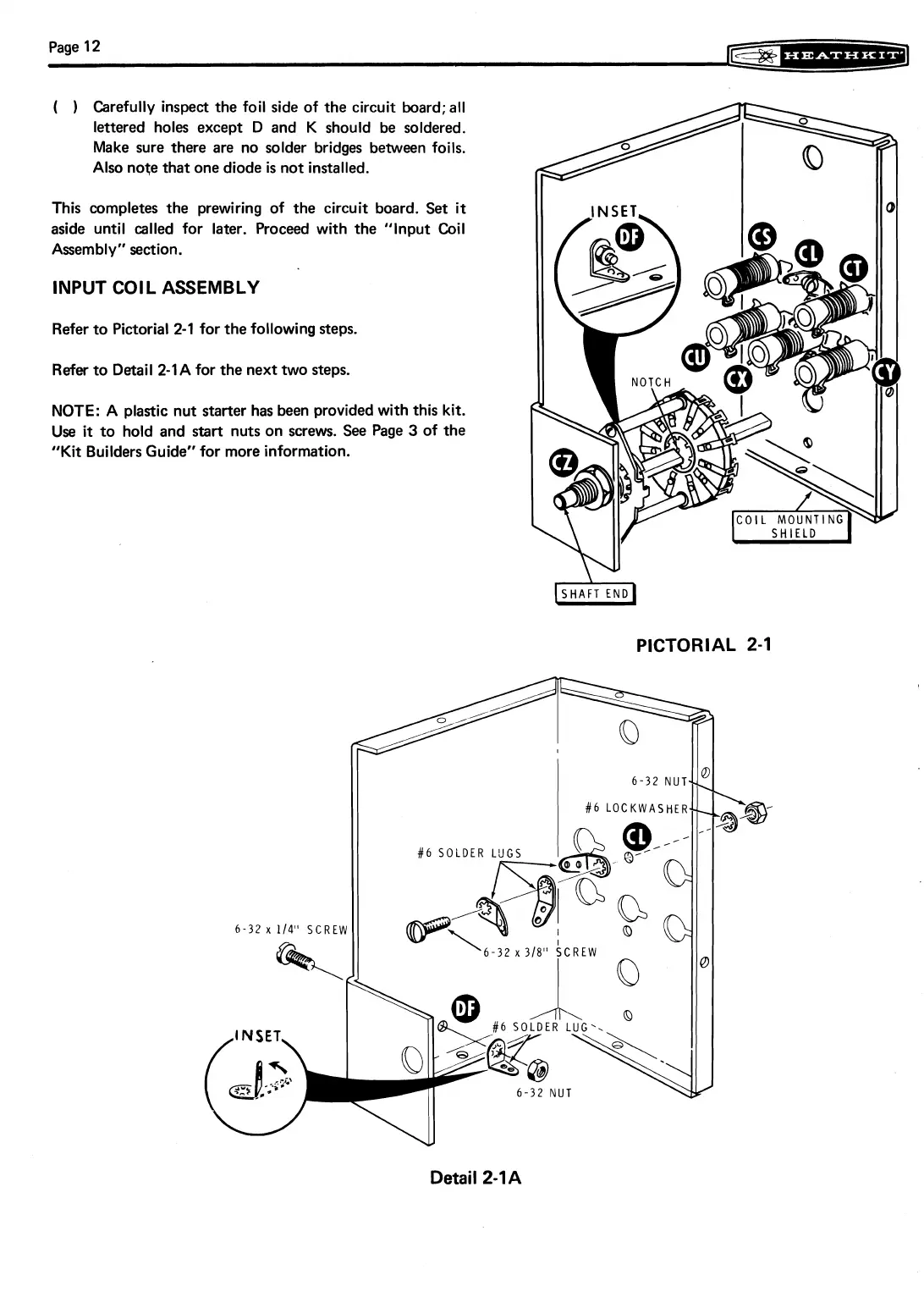

Page
12
-*;--).-3
(
)
Carefully inspect the foil side of the circuit board;
all
lettered holes except
D
and
K
should be soldered.
Make sure there are no solder bridges between foils.
Also note that one diode
is
not installed.
This completes the prewiring of the circuit board. Set
it
aside until called for later. Proceed with the "Input Coil
Assembly" section.
INPUT COIL ASSEMBLY
Refer to Pictorial
2-1
for the following steps.
Refer to Detail 2-1A for the next two steps.
NOTE: A
plastic nut starter has been provided with this kit.
Use
it
to hold and start nuts on screws. See Page
3
of the
"Kit Builders Guide" for more information.
PICTORIAL
2-1
Detail
2-1A
To Next Page
