126

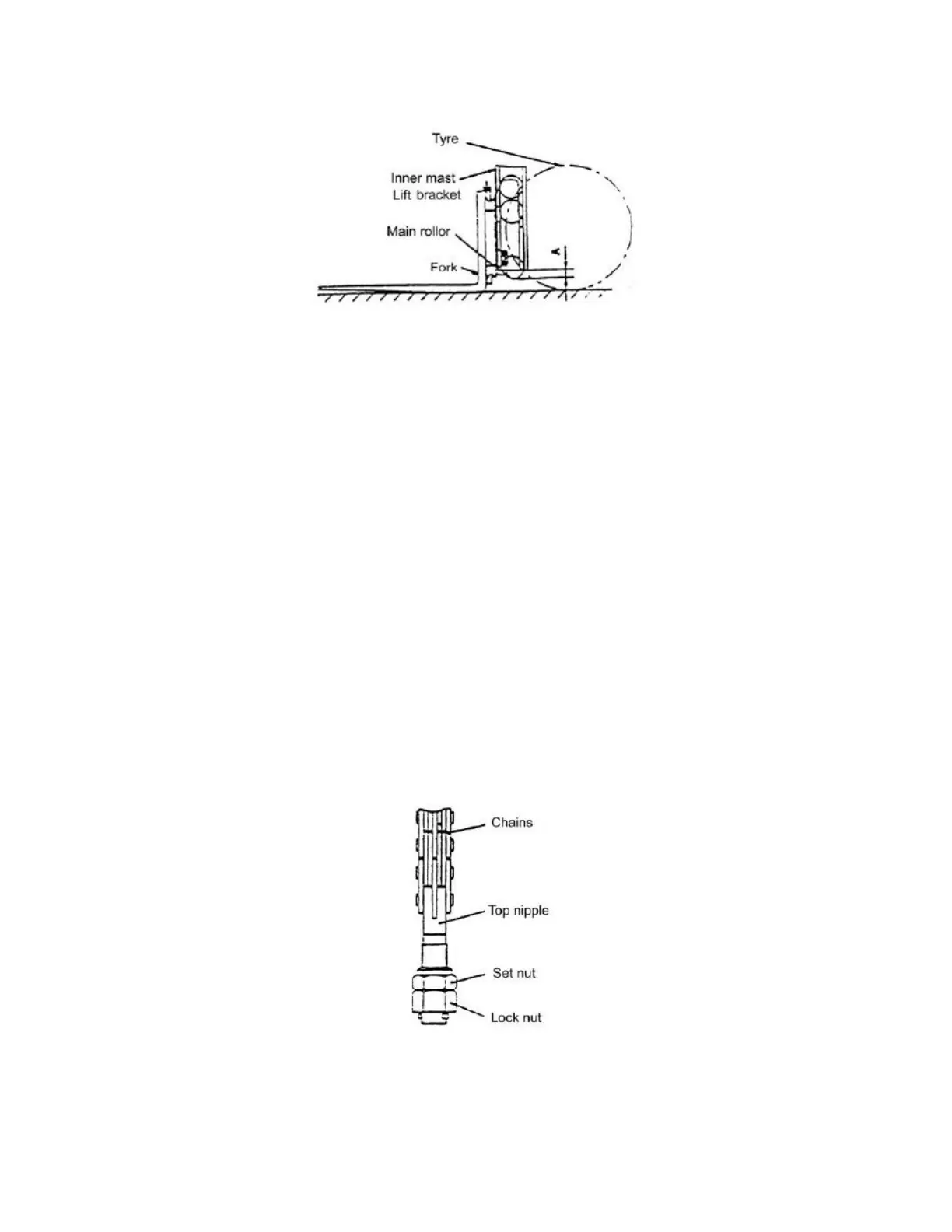

Fig. 6-6 Adjust lift brackets height
6.5.3 Replacing rollers of the lift bracket
(1) Place a salver on the forks and make the forklift stop on the horizontal ground.
(2) Make the forks and salver descend to the ground.
(3) Take down tie-in on top of the chains. And take out chains from sheave. (See Fig.
6-7)
(4) Make the inner mast rise.
(5) The forklift can be reversed when the lift bracket disengaged from the outer
mast.
(6) Replacing main rollers
(a) Take apart all of snap ring from the lift bracket and take out main rollers.
(b) Fit the new main roller (the same type as the old one) on the lift bracket and
fastened with snap ring.
Fig. 6-7
6.5.4 Replacing rollers of masts
