adjusting level with your finger along the arrow marks to turn the adjuster gear. When
removing off your finger, the adjusting lever should return to its original position without
rotation of the adjuster gear.
Note: Even if the adjuster gear turn back along the adjusting lever motion
when removing your finger, the adjuster will still operate normally after it is built in
the machine.
(2) If the adjuster fail to do the above operation when the adjusting lever is pulled,
proceed with the following inspection:
a) Make sure that the adjusting lever, push rod and the return spring for push rod are
securely installed.
b) Check the push rod return spring and adjuster spring for deterioration, and also
check the adjuster gear for rotating condition and undue wear or damage of the meshing
section. Change if necessary.

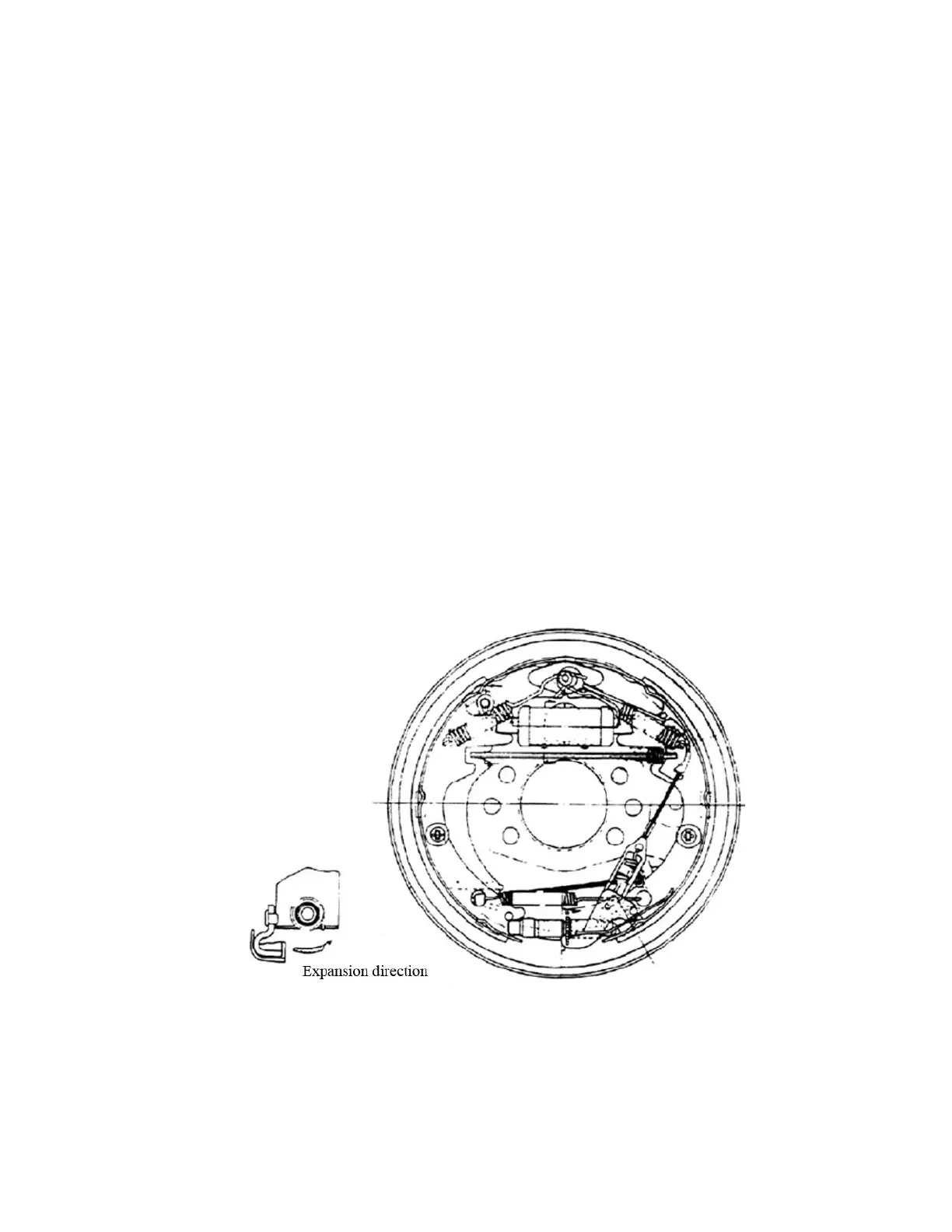

Fig. 2-25
2.2.5 Brake pedal adjustment
(1) Make the push rod short.
