24

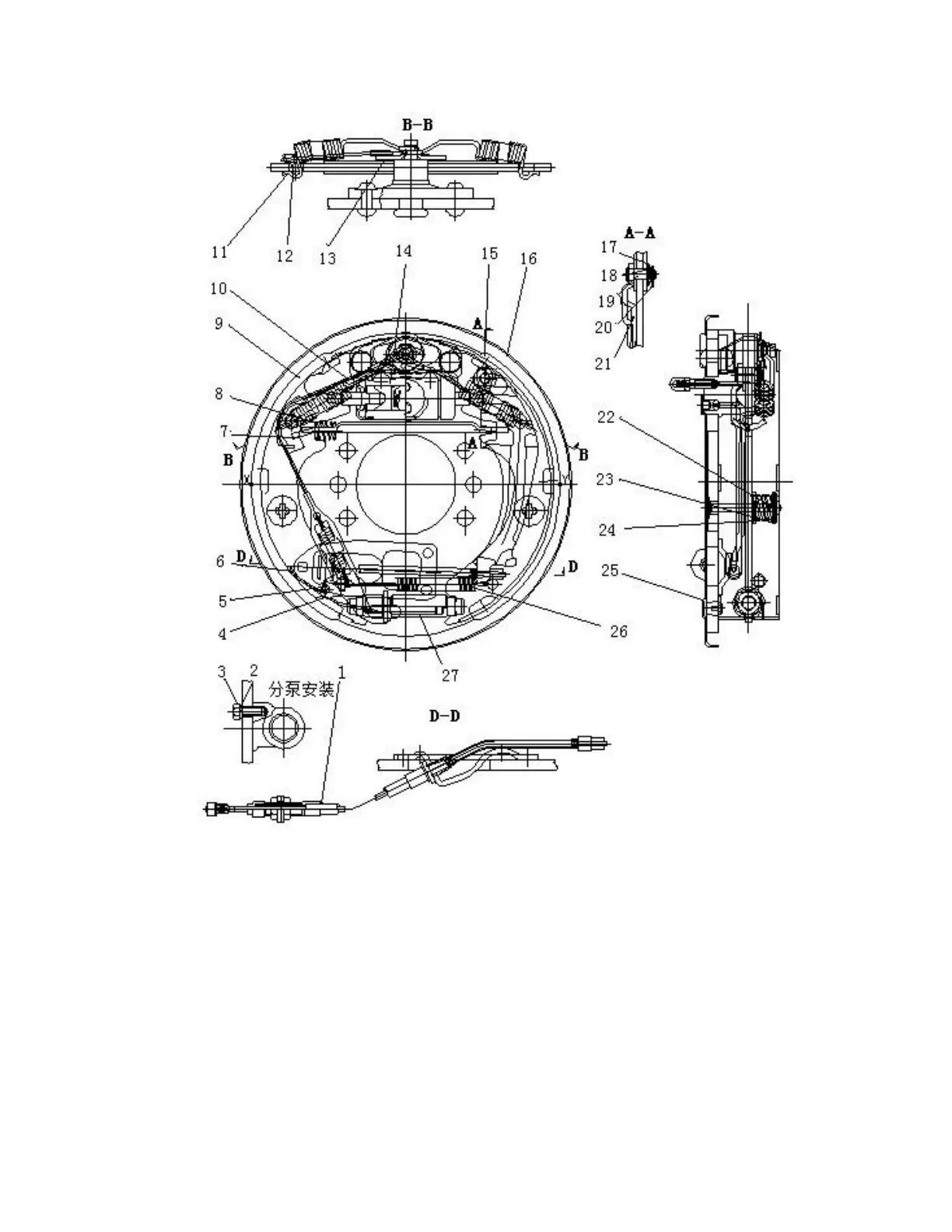

Fig. 2-8 Brake assembly
(1) Braking cable ass’y (2) Washer 8 (3) Bolt M8×20 (4) Ratchet pawl
(5) Pin roll (6) Torsional spring (7) Parking push rod (8) Spring
(9) Rear brake shoe with friction plate (10) Spring pull rod
(11) Return spring for brake shoe (12) Guide pad (13) Guide plate
(14) Brake cylinder ass’y (15) Front brake shoe with friction plate
(16) Bassplate ass’y (17) Washer 10 (18) Spring washer (19) Pin roll for pull rod
(20) Snap ring (21) Parking pull rod (22) Spring pull rod (23) Spring seat
(24) Spring (25) Plug (26) Pullback spring (27) Clearance self-adjuster
2.1.4 Operating device of the parking brake
