18

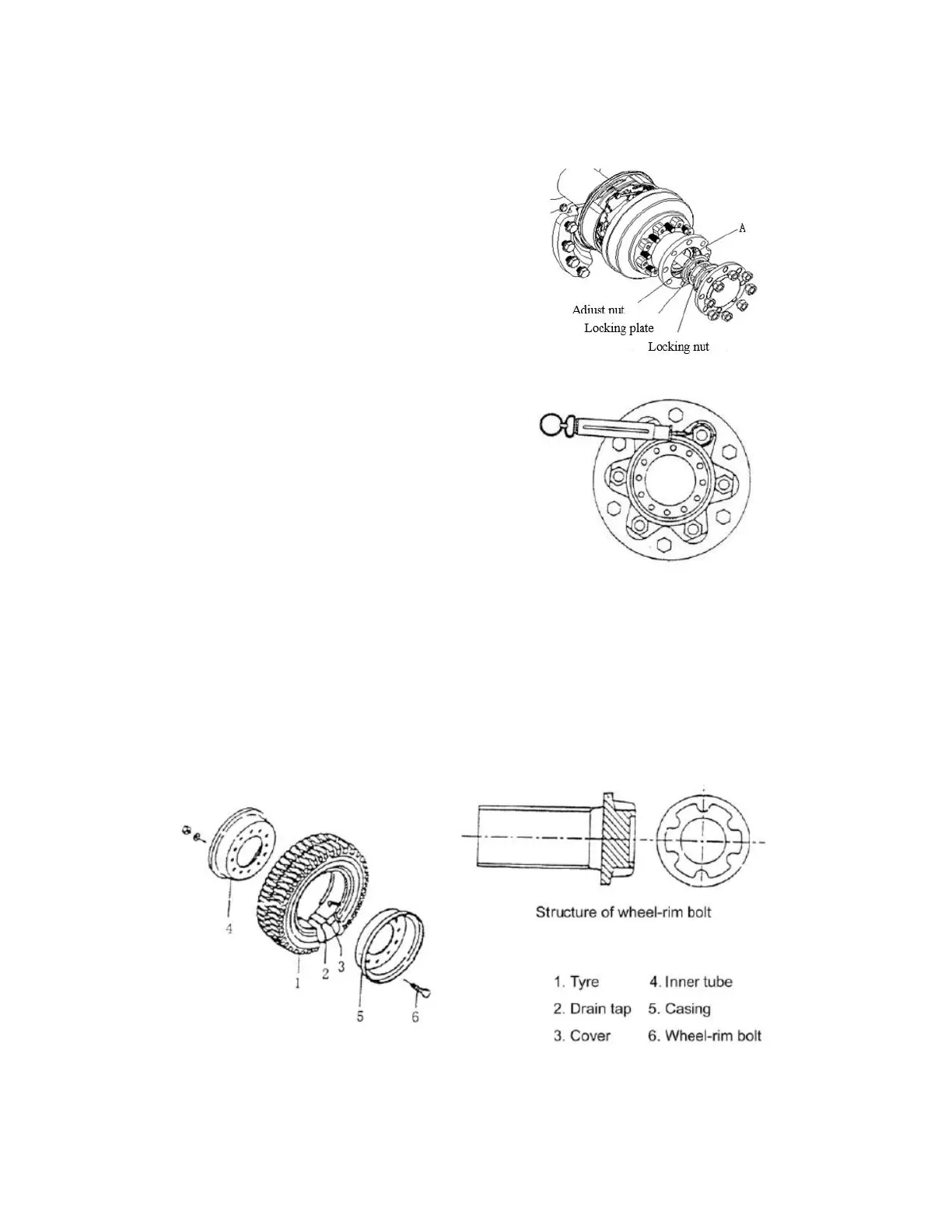

1.4 Assembly of wheel hub
(1) Fill the chamber of wheel hub
with lubricating grease about 100cc, and
then fit the hub on the housing.
(2) Screw down the hub nut to a
torque of 1kg.m, then loosen it for 1/2
turn.
Fig. 1-6 Fill lubricating grease
(3) Measure the torque value that the
wheel hub starts rotating. When the torque
value measured reaches to regulated value,
screw down the hub nut.
Initial torque: 5-15kg.m
Fig. 1-7 Measure the torque value
(4) Screw down the locking nut and lock the locking pin.
(5) Assembly of tyre
Fix the drain tap and the cover on the tyre, and screw down wheel-rim bolts.
NOTE: a) the exhaust valve rod points outside and lies on the gap of the rim.
b) Make sure the hub nut head point outside.
Fig. 1-8 Assembly of tyre
