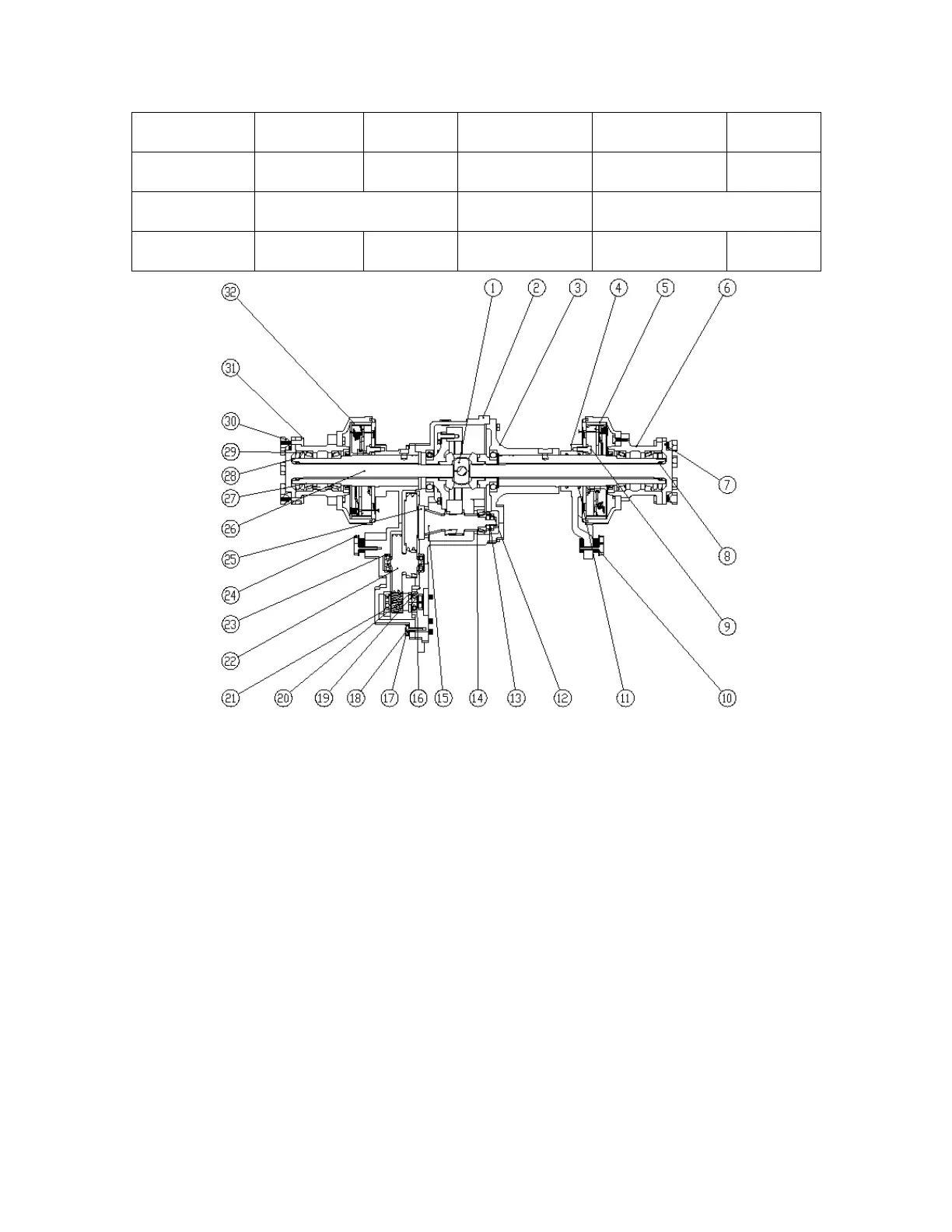

Fig. 1-3 Gearbox & axle assembly
(1) Differential assembly (2) Main housing of the reducer casing (3) Spindle head
assembly of the axle housing Ⅰ (4) Connecting plate (5) Brake assembly (R) (6)
Brake drum hub assembly (7) Half-shaft Ⅰ (8) Oil seal AE2483E0 (9) Bolt
(10) Washer 20 (11) O-ring seal 90×5.3 (12) Nut M30×1.5 (13) Washer 30
(14) Bearing 32208 (15) Dual gear Ⅱ (16) Bearing 6010/C3 (17) Washer 12
(18) Bolt M12×40 (19) Oil seal AE2791A0 (20) Pinion (21) Bearing 6208
(22) Dual gearⅠ (23) Bearing 6206 (24) BoltM20×1.5×55 (25) Bearing 32915
(26) Half-shaft Ⅱ (27) Spindle head assembly of the axle housing Ⅱ (28) Washer
75 (29) Nut M75×2 (30) Cone nut (31) Bolt M18×1.5 (32) Brake assembly (L)
Note: the bolts (9)(18)(24) should be applied with GY-340 adhesive; the o-ring
shown in (11) used on 1-1.8t truck is 75×5.3 and other trucks are 75×5.3.
