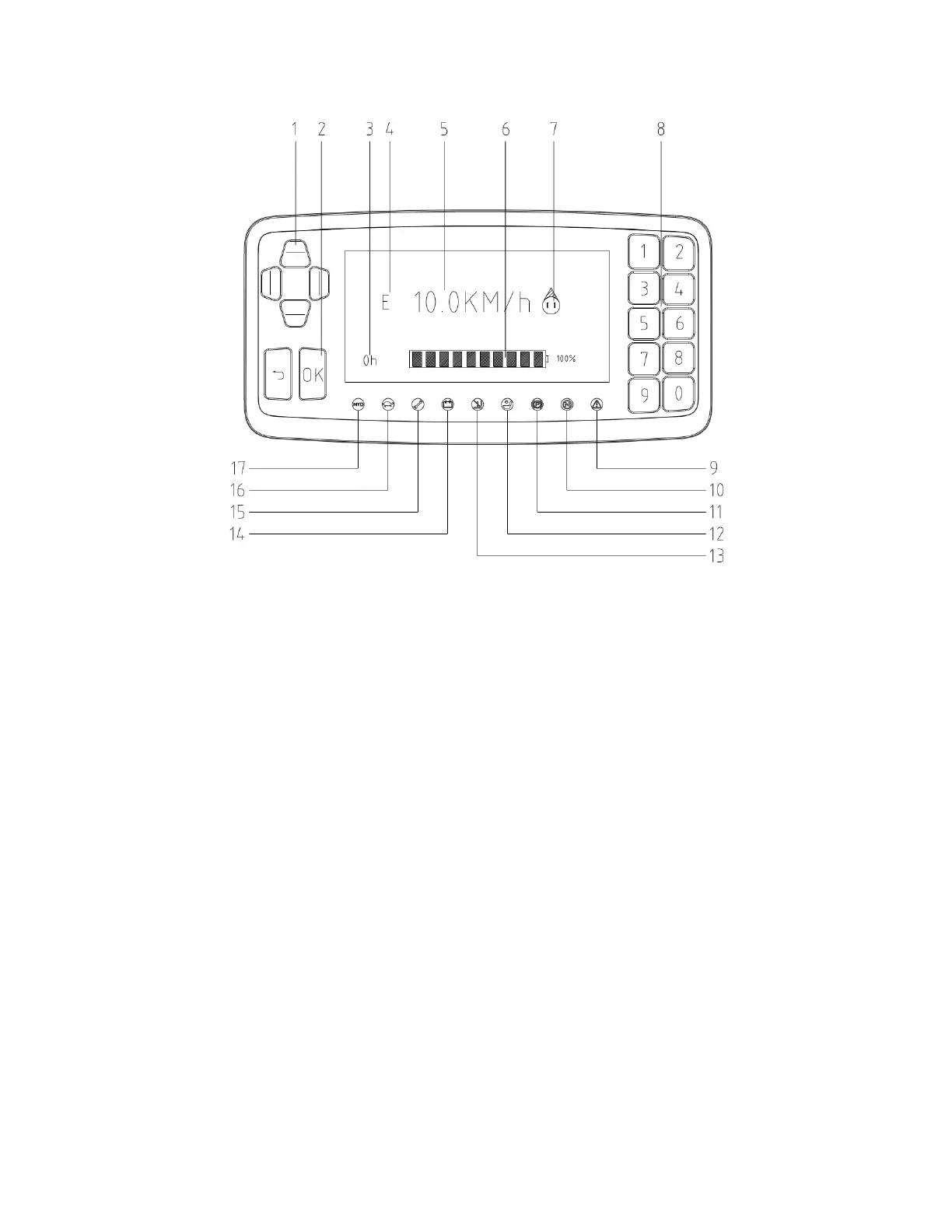

Figure 4-14 Panel of Jiacheng intelligent instrument
1.Navigation key 2.Menu enter/confirm key 3.Hour meter
4.Display of travelling mode 5.Display of travelling speed
6.Display of battery dump energy 7.Display of steering angle 8.Numeric key
9.Alarm indicator 10.Neutral indicator 11.Display of hand brake state
12.Display of seat switch 13.Lifting lock indicator 14.Undervoltage alarm indicator
15.Fault alarm indicator 16.Tuttle speed indicator 17.Fault indicator of DC pump
(2) Functions and usage
Jiacheng intelligent instrument is a kind of truck instrument based on CAN and
wireless communication. The instrument can not only show truck speed, working time,
battery dump energy , dual language display, password protection, fault code and so on, it
also can realize long distance voice alarm, arrangement, vehicle positioning, long
distance truck locking, long distance assist and other industrial engineering functions. It
also can reset truck parameters, offer on line real time communication, data storage and
background monitor and so on.
a) Turn on the key switch, “HELI,LIFTING THE FUTURE”will be shown on the
instrument when the power is on. Then instrument self check will be finished and battery
dump energy, truck speed, current default travelling mode(E) and traction hours will be
To Next Page
