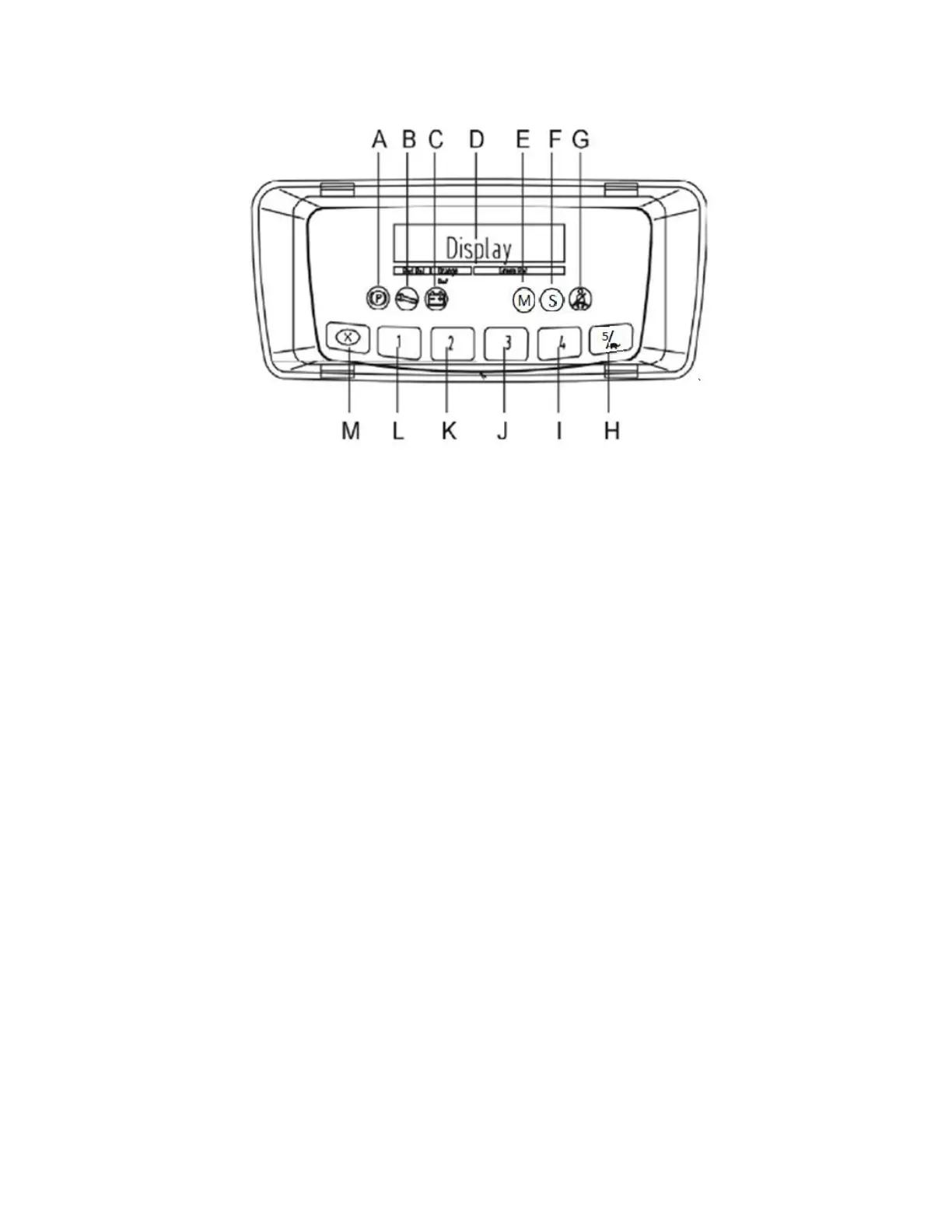

Fig. 4-18 ZAPI SMART instrument panel
(A) hand brake status indicator (B) fault display (C) battery capacity display
(D) display screen (E) medium speed traction operation display button
(F) slow speed traction operation display button (G) seat switch alarm light
(H) high/medium/slow running switch/exit button (I) parameter setting decrease key
(J) parameter setting increase key (K) menu down key
(L) menu up key (M) menu function key
4.2.4.2 Functions and applications
SMART DISPLAY is an intelligent instrument panel connected to the vehicle
system through CAN bus. The intelligent instrument panel provides diagnosis and
Settings for the entire vehicle system.
Connect the smart display to a ZAPI handheld device or single-chip Windows
device, which can read or modify the Settings of all modules in the CAN bus network.
The display forms an interactive interface with the operator through the main page and
many submenus.
a) open the key switch, and after the meter is powered on, the words "HELI AC
SYSTEM" will appear on the LCD screen to complete the self-check of the meter system.
The main page will display the battery power, vehicle speed, current default driving mode
(E) and traction hour meter.
