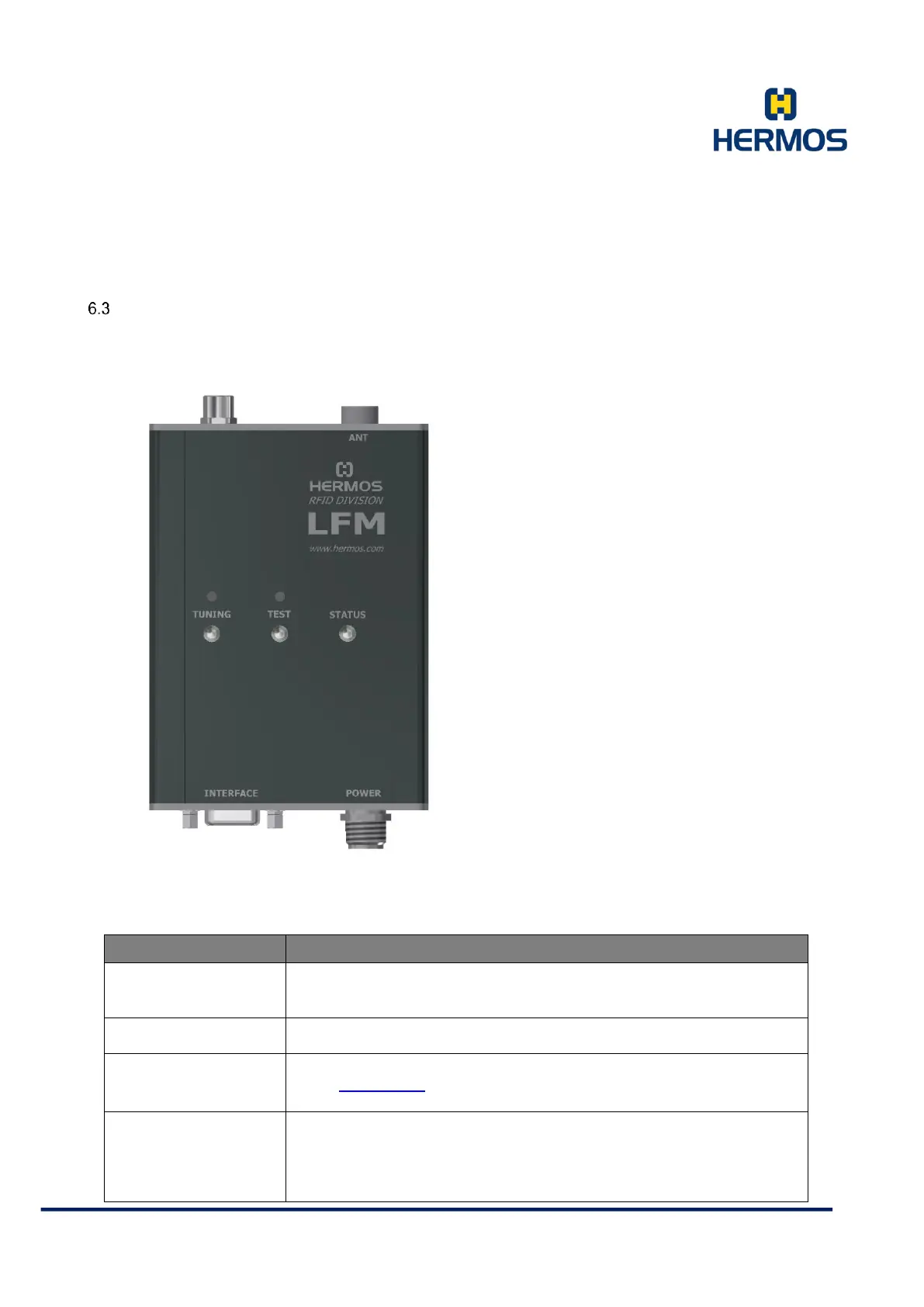

HERMOS LFM LP Reader - Top View Illustration

Protocol description ASCII, SECS/HSMS
Customer manual
Version 1.2
LFM LP Reader 15.01.2019
Page 17 of 119
HERMOS AG
Gartenstrasse 19 Tel. +49(9279) 991-0
D-95490 Mistelgau Fax. +49(9279) 991-100
Illustration
6.3.1 Top view
Component
Describtion
Power supply
M12-A plug for 24V DC power supply.
Antenna connection
Lemo antenna connector
Status-LEDs
--->see page 28
Push buttons
Tuning push button switch starts an automatic antenna tuning.
Test push button activates the read test mode. On a long press the
write test mode is activated.
