Installing the antenna
When installing the antenna, observe the required reading and writing
ranges. The reading device can only be used properly,
if the transponder is located within the reading and writing range of the
antenna. Tune antenna after a new antenna installation!
Tune antenna after a new antenna installation!
The tuning function can be started with the tuning button.

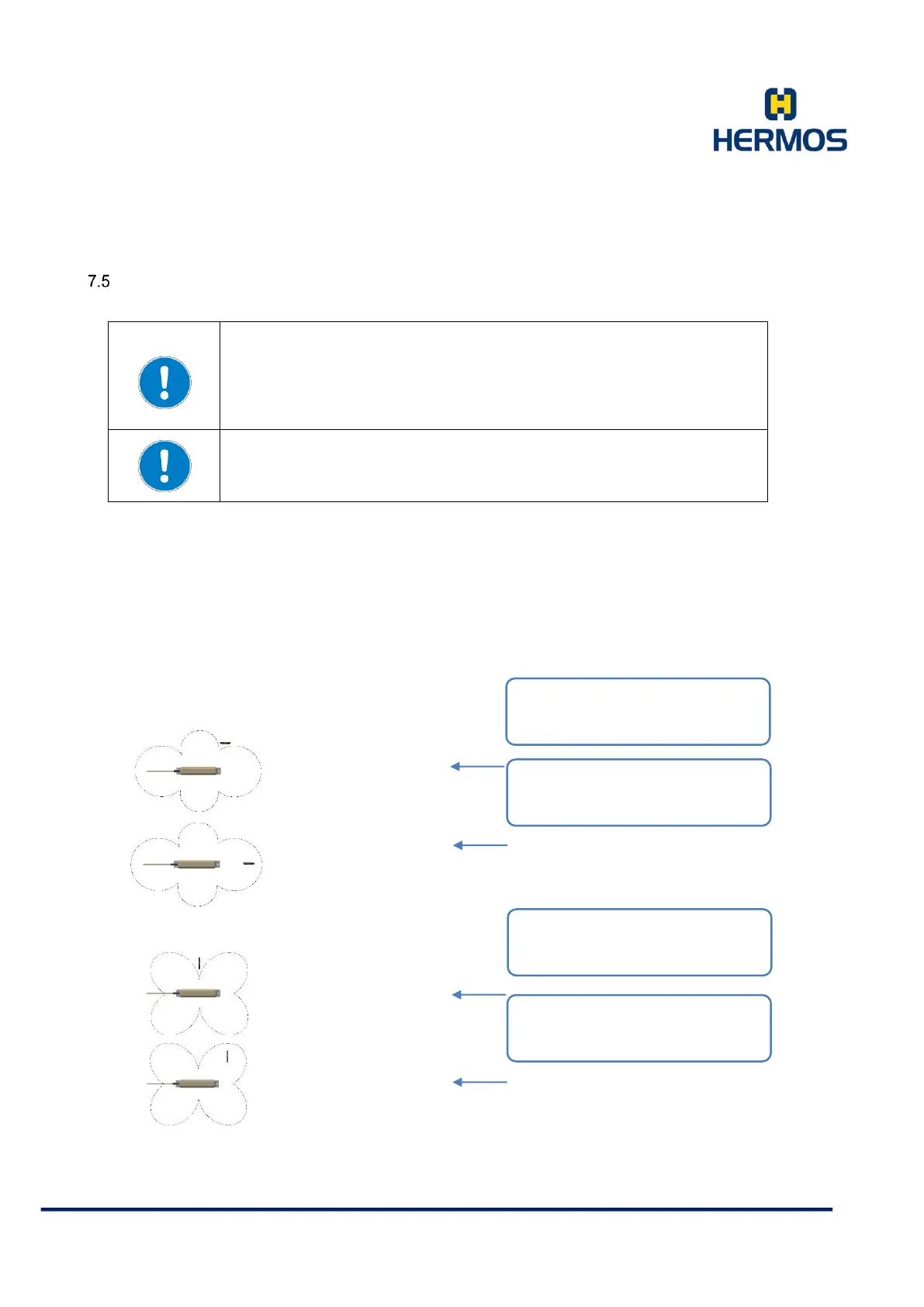

7.5.1 Positioning the antenna
The removal and alignment of the transponder to the antenna is critical to ensure reliable reading and writing.
The following diagram displays the optimum alignment and position of the transponder to the antenna.
After positioning, the antenna must be tuned to the ambient conditions. The tuning function can be started
with the tuning button.
Transponder parallel to the antenna axis:
Transponder vertical to the antenna axis:
Transponder is outside the
antenna range
Transponder is within the
antenna range
Transponder is outside the
antenna range
Transponder is within the
antenna range
