11.3.3 Stream 3 (Material-state)

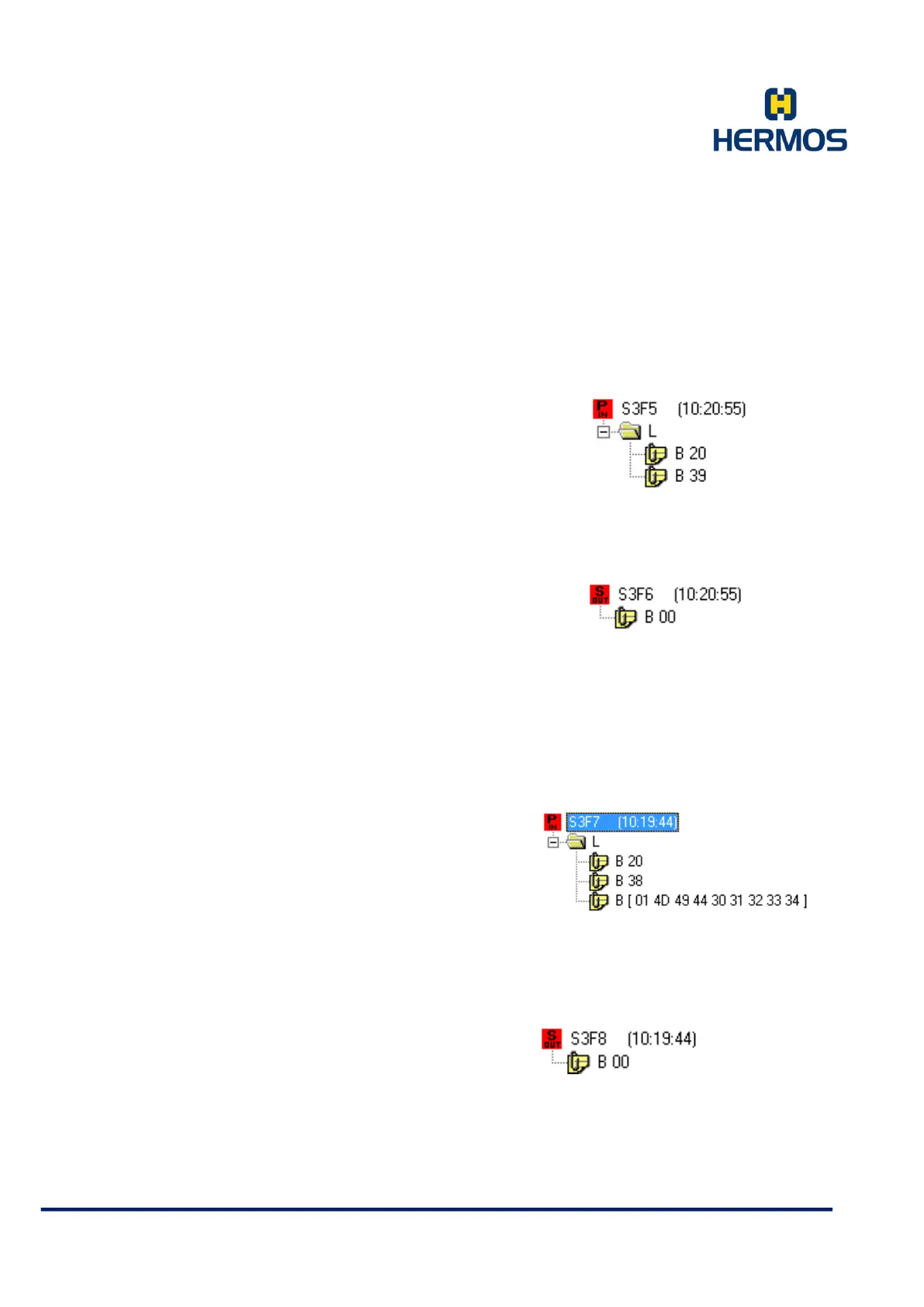

S3F5: Material found (MID FOUND) (reading device-> host, reply)
The reader sends the information that material has been detected on the input sensor. This message is
sent only when a sensor is connected and activated.
(see par. 26 Sensor Activity and par. 27 Watchport)
S3F5 W
<L[2]
<B[1] MF >
<B[1] PTN >
>
S3F6: Material found confirmation (MID FOUND, ACK ) (host -> reading device)
The host confirms the message material found.
S3F6
<B[1] ACKC3 >
S3F7: Material lost (MID LOST) (reading device -> host,reply)
The reader sends the information that material has been removed from the input sensor. This message
is sent only when a sensor is connected and activated.
(see par. 26 Sensor Activity and par. 27 Watchport)
The PAGEDATA are only indicated if the last reading was successful.
S3F7 W
<L[2]
<B[1] MF >
<B[1] PTN >
<B[9] PAGEDATA >
>
S3F8: Material lost confirmation (MID LOST, ACK ) (host -> reading device)
The host confirms the message material lost.
S3F8
<B[1] ACKC3 >
