iRTK5 Smart GNSS System User Manual
43
Table 4-5-1 indicator lights description
Operation
Battery power
LED indicator
Charging
0-25%
LED 1 flashes, the flashing frequency is 1Hz.
25%-50%
LED 1 is in long-term lighting;
LED 2 flashes, the flashing frequency is 1Hz.
50%-75%
LED 1 and 2 are in long-term lighting;
LED 3 flashes, the flashing frequency is 1Hz.
75%-100%
LED 1, 2 and 3 are in long-term lighting;
LED 4 flashes, the flashing frequency is 1Hz.
Full (trickle charge)
All LED lights off.
(charging current ≤150mA).
2. Charger: use the standard charger to charge the battery, the indicator will turn off when the battery
is fully charged.

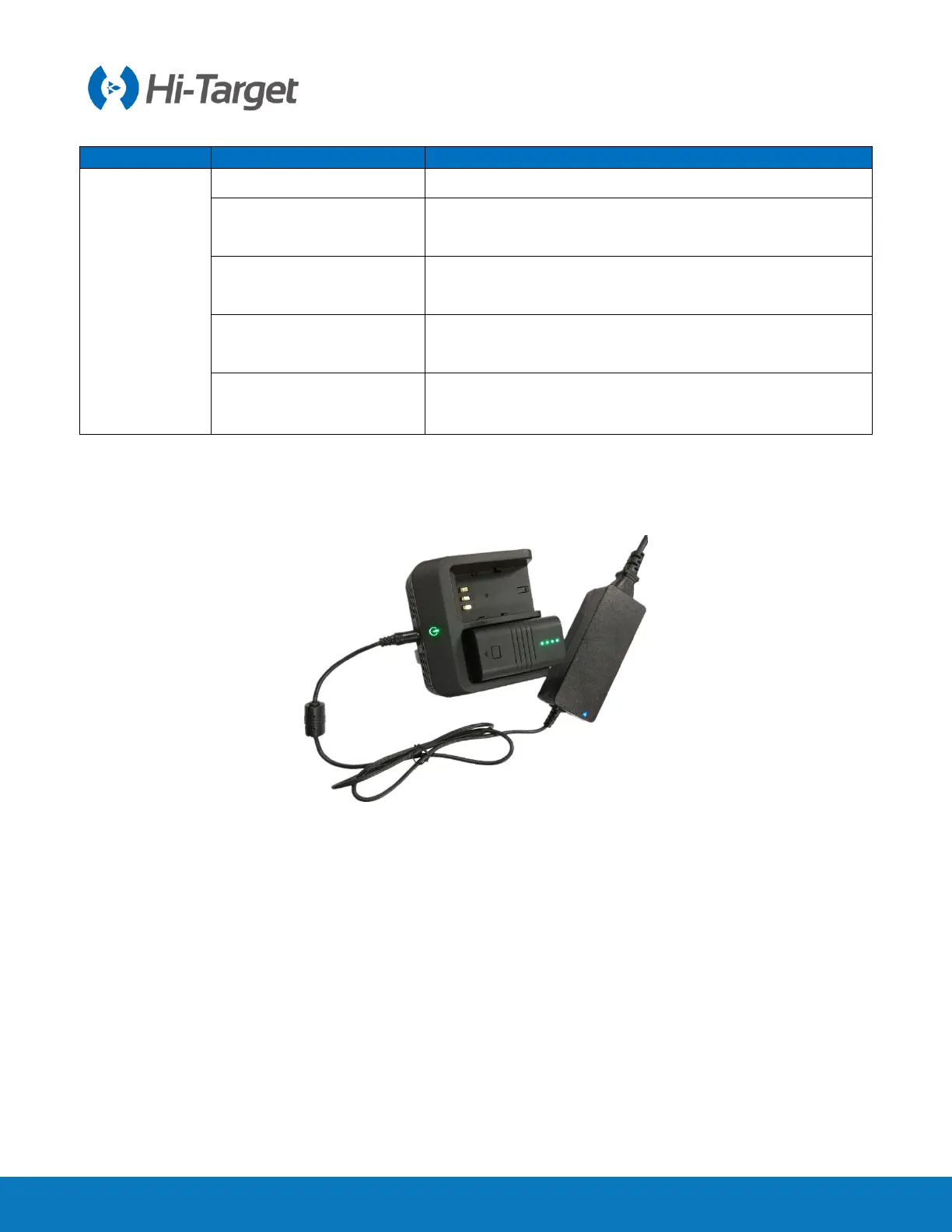

Figure 4-5-2 Battery charger
