VertX EVO V2000 Installation Guide, 72000-901, Rev. A.5
3 Connect
3.1 What you need before getting started
Prior to starting the installation, completely read this guide.
See Section Appendix: C Configuration Checklist - Static, and gather the information before
proceeding with these instructions.
CAUTION: VertX controllers are sensitive to Electrostatic Discharges (ESD).
Observe precautions while handling the circuit board assembly by using proper grounding
straps and handling precautions at all times.
To further protect against the harmful effects of EMC and transients, a functional
earth connection point is provided under two of the mounting screws. See silkscreen
symbols.
3.2 V2000

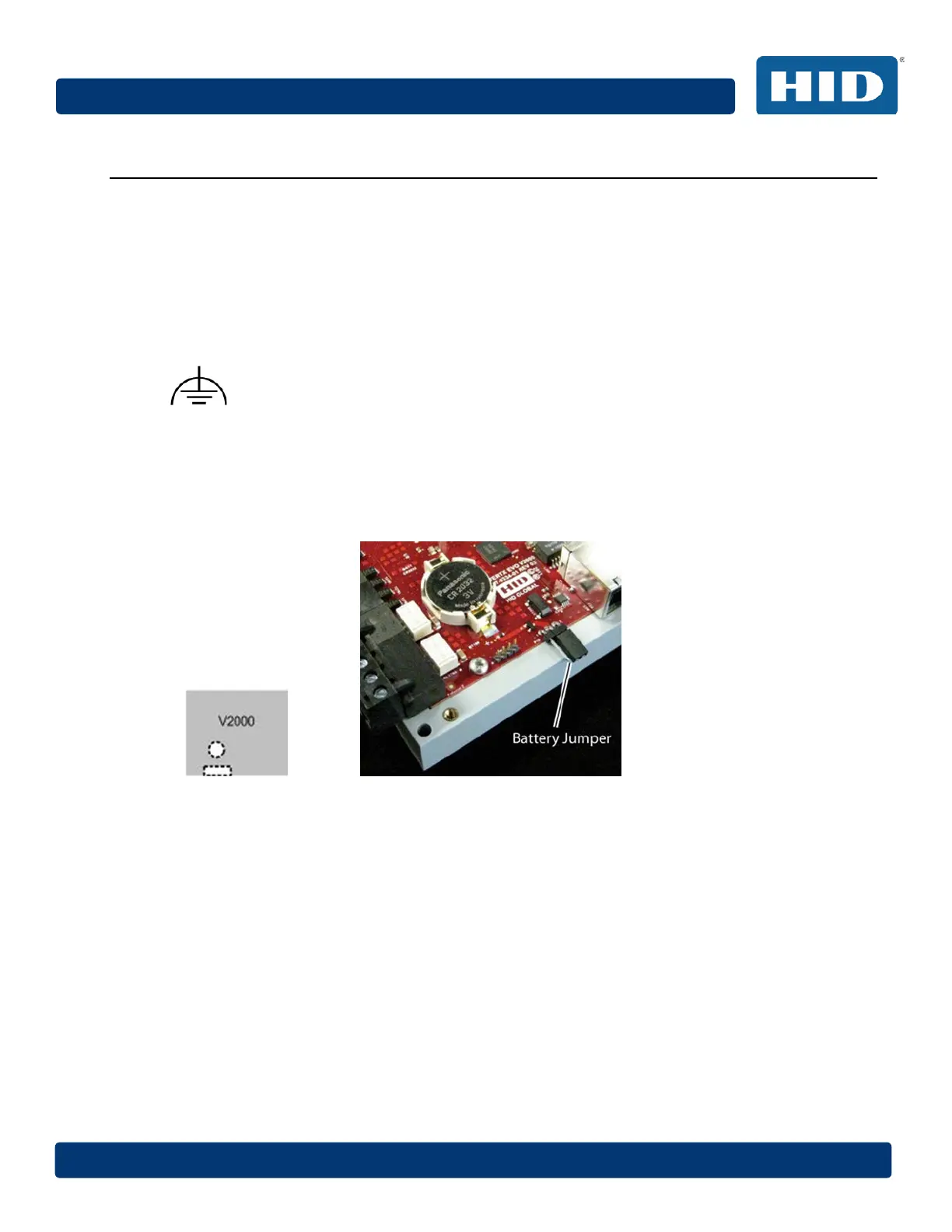

Verify the battery jumper is installed in the ON position, P10 connector.
3.3 Mounting Instructions
Always mount the V2000 controller in a secure area. 1.
Battery Installation. See Section Appendix: A-A.6 Battery Replacement. 2.
a. Remove the cover.
b. Insert the battery with the + (positive) side facing upwards under the prongs,
lowering the opposite side into place.
Mount using the four mounting screws provided or other appropriate fasteners. 3.
Place the fasteners in the corner holes of the base.
Position the VertX EVO devices in such a way as to provide room for wiring, air-flow 4.
and cable runs.
Replace the cover. 5.

HID VertX EVO V2000 Specifications

General

Inputs	8 supervised inputs
Reader Interfaces	Wiegand, Clock-and-Data
Housing	Metal
Communication	RS-485
Power Supply	12-24 VDC
Operating Temperature	-40° to 70° C
Humidity	5% to 95% non-condensing
Certifications	UL 294, CE, FCC
