ASSEMBLY INSTRUCTIONS
VERTICAL LIFTING PLATFORM PH-300
5. Hydraulic installation

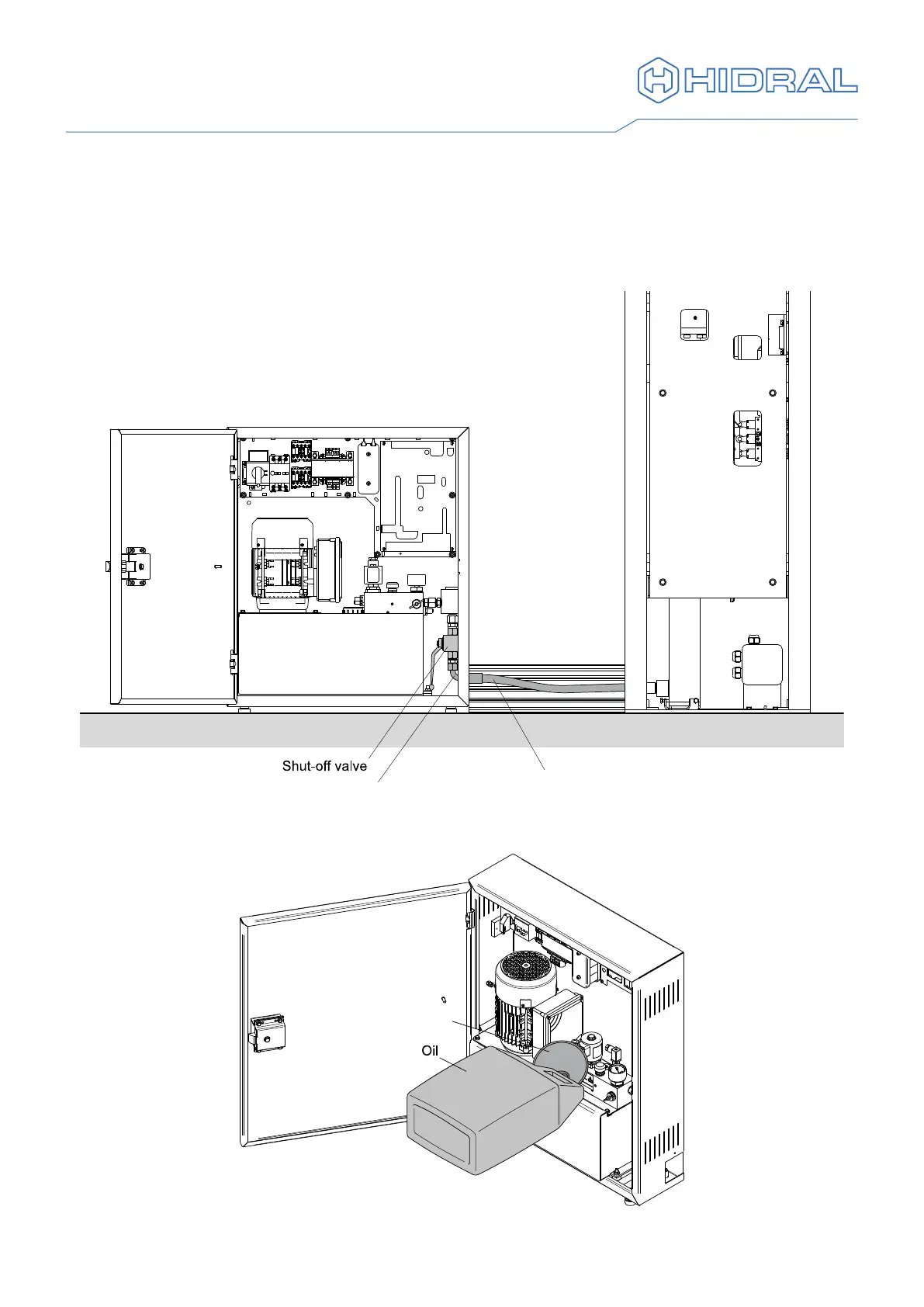

1 Insert the bent end of the exible pipe through the lower opening in the machine
cabinet and the straight end of the pipe through the lower hole in the guide rail.
2 Screw the bent end of the pipe to the shut off valve and screw the straight end of
the pipe to the oil inlet of the cylinder. Reject the protection plugs.
Flexible pipe
Bent end
3 Fill the hydraulic power unit with the supplied oil.
Funnel
