Hidral PH-300 - Upper Landing Door Assembly

IM-560en
Vers. 05
Page 26
ASSEMBLY INSTRUCTIONS
VERTICAL LIFTING PLATFORM PH-300
9. Upper landing door assembly
The upper-level door is required for platforms with a travel distance of more than
500 mm. The assembly procedure for the two supplied attachment options is
described below: direct attachment to the ooring or using a built-in xing plate.

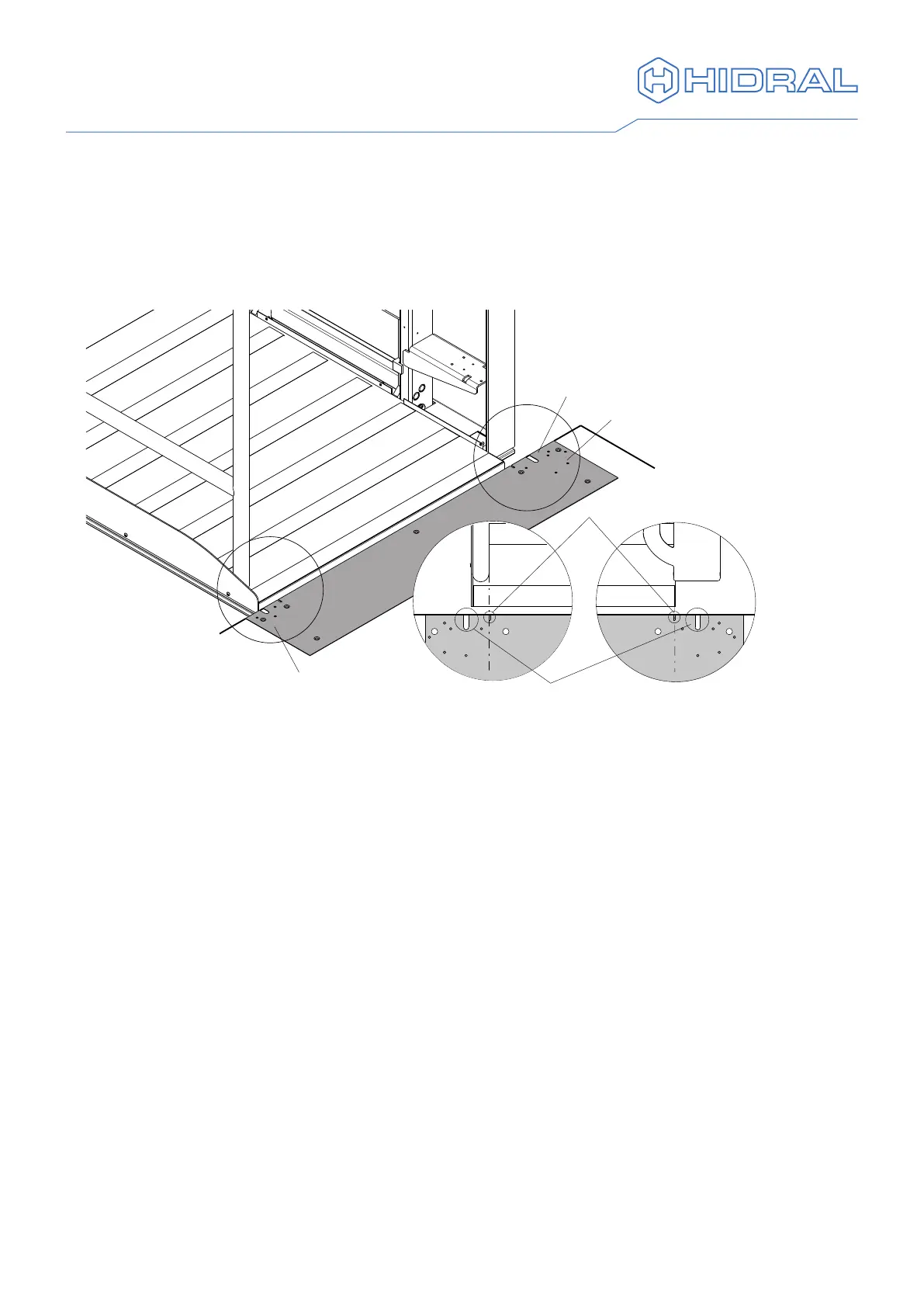

1 Position the xing plate on the upper-level entrance ush with the wall and align the
clearance mark on the hinge side with the useful width end of the platform.
IM560_05
1:10
Fixing plate
Clear opening markings
Stots for cables
Hinge post side
Closing post side
Hinge post on the
oposite side of the guide
Hinge post on the
side of the guide
2 Without removing the plate, drill a Ø10 hole and insert a rod or screw as a guide to
prevent it from moving when you continue drilling.
3 Drill a second hole as distant as possible from the rst one and insert another
threaded rod or bolt.
4 Drill the remaining holes while taking care not to move the plate.
5 Before removing the plate, mark the slots for the cables. In the case of a semi-
automatic door, only the slot for the locking post will be necessary.
6 Remove the plate and re-drill to Ø16 and a depth of 100 mm.
7 Make the slots for the cabling on the marks..
8 Blow out the drill holes and insert the expansion anchors.
9 Position the xing plate and ll the drill holes from the bottom outwards with
6 applicator shots. Immediately insert the M8 sleeves with their countersunk
screws before the resin can harden.
Direct attachment to the
floor
