Hidral PH-300 - Electrical Adjustment; Adjustment of the Circuit Breaker; Adjustment of the Stop Final Limit Switches

IM-560en
Vers. 05
Page 36
ASSEMBLY INSTRUCTIONS
VERTICAL LIFTING PLATFORM PH-300
11. Electrical adjustment

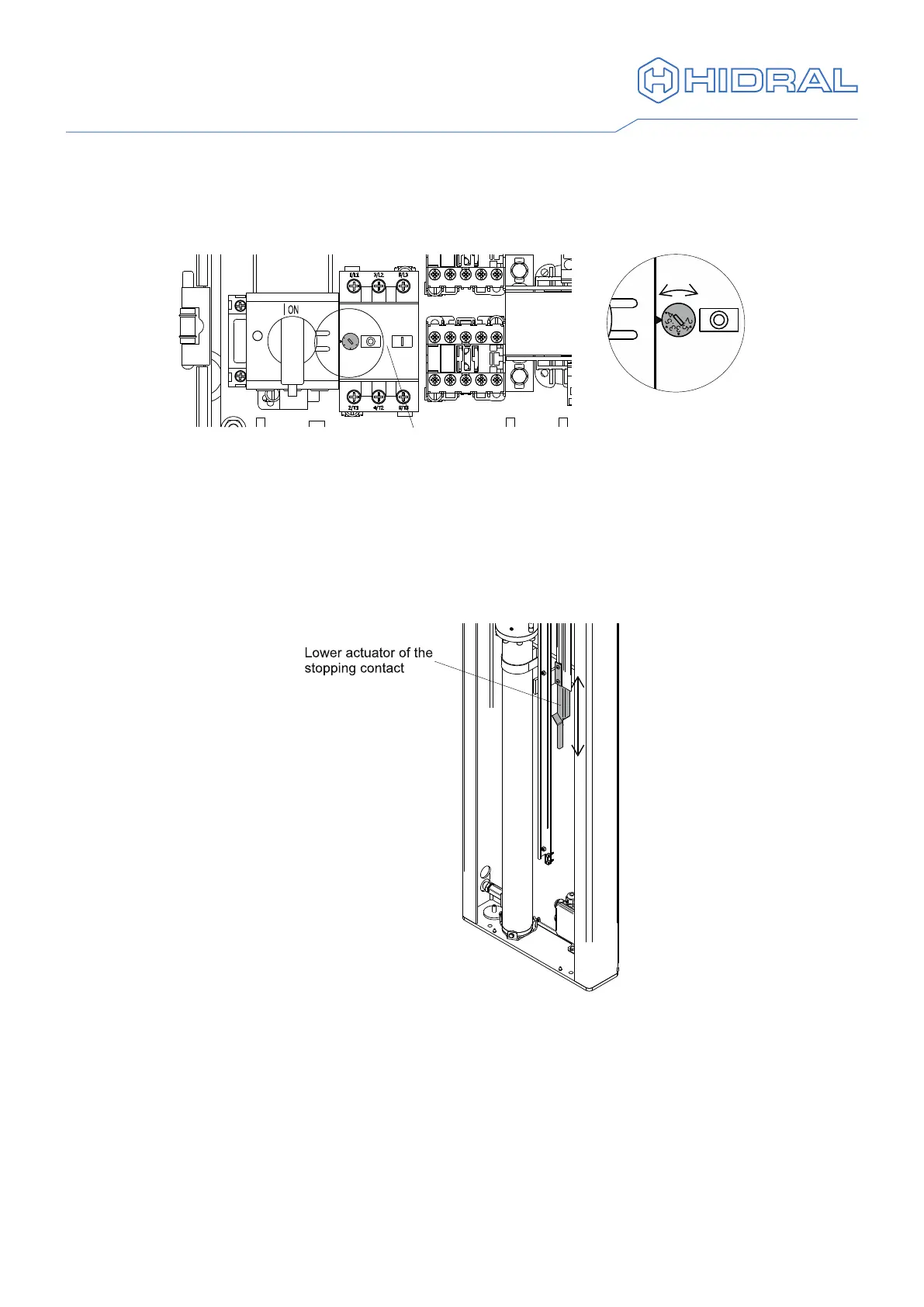

11.1. Adjustment of the circuit breaker
Adjust the circuit breaker to the rated current of the motor (3.7 A).
OFF
2
.
5
3
4
3
.
5
Circuit breaker
11.2. Adjustment of the stop nal limit switches
1 Actuate the call push button in the lower landing level push button panel until the
vehicle arrives at the lower landing level.
2 The lower actuator of the KN stopping nal limit switch shall be positioned in such a
position that the far edge of the access ramp in the vehicle is just touching the oor.
Adjust the position of the actuator if necessary.
3 Actuate the call push button in the upper landing level push button panel until the
vehicles arrives at the upper landing level.
