ASSEMBLY INSTRUCTIONS

VERTICAL LIFTING PLATFORM PH-300

7. Vehicle installation

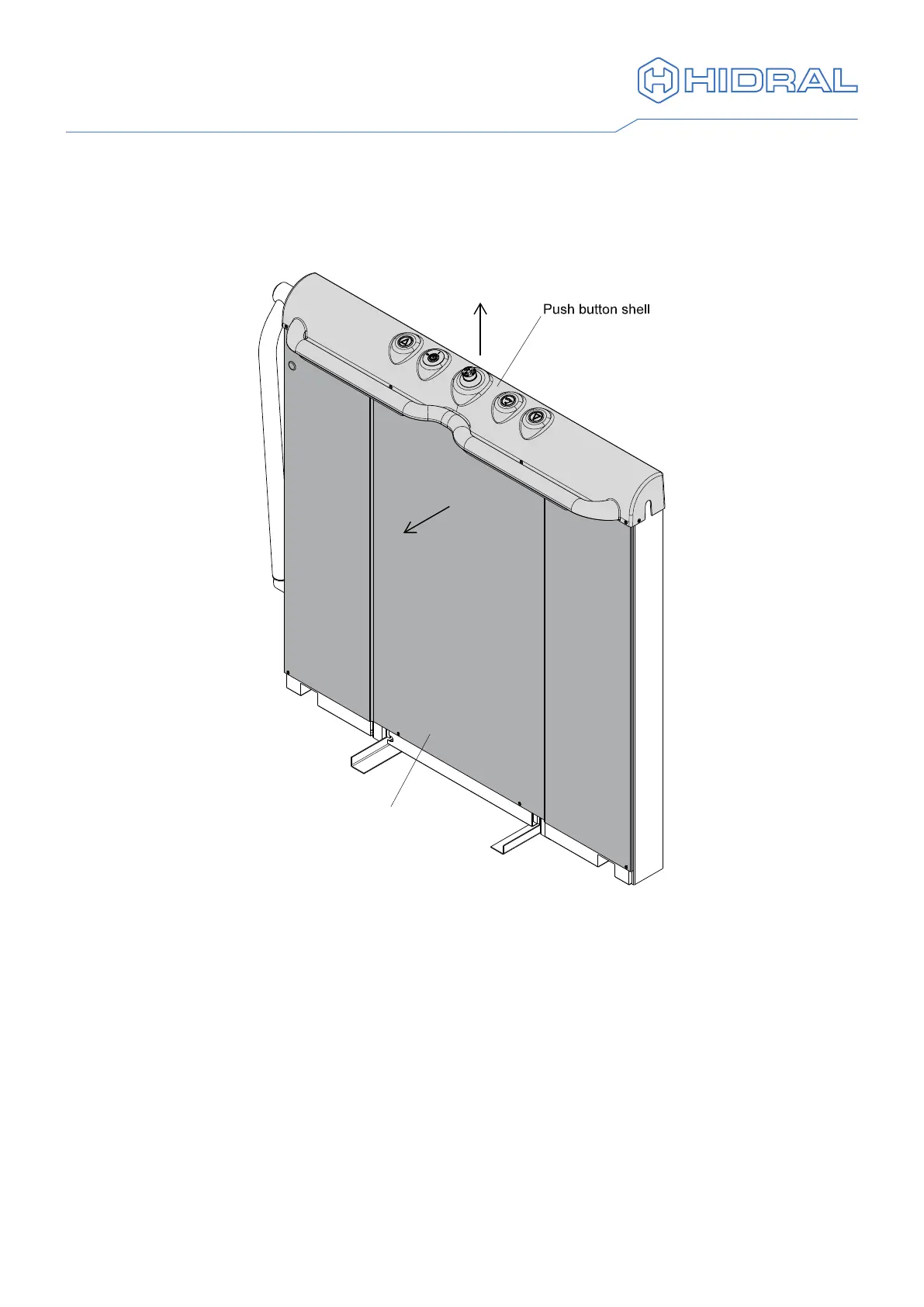

1 Remove the xation bolts for the push button shell, unplug the connector and

remove the shell.

2 Remove the lower bolts in the front vehicle cover and remove it.

Cover

3 Position the vertical structure next to the cart enough to insert the cables from the

guide rail and position the cable support plate.

4 Bring the vertical structure towards the guide and insert the rods in the cart in the

vertical structure, until they are in contact with the holes. Fix the vertical structure

with the four M12 biaseled ring nuts.

5 Fix the cable support plate to the vertical structure with four M4 nuts.
