ASSEMBLY INSTRUCTIONS
PH-300 VERTICAL LIFTING PLATFORM
IM-560en
Vers. 05
Page 19

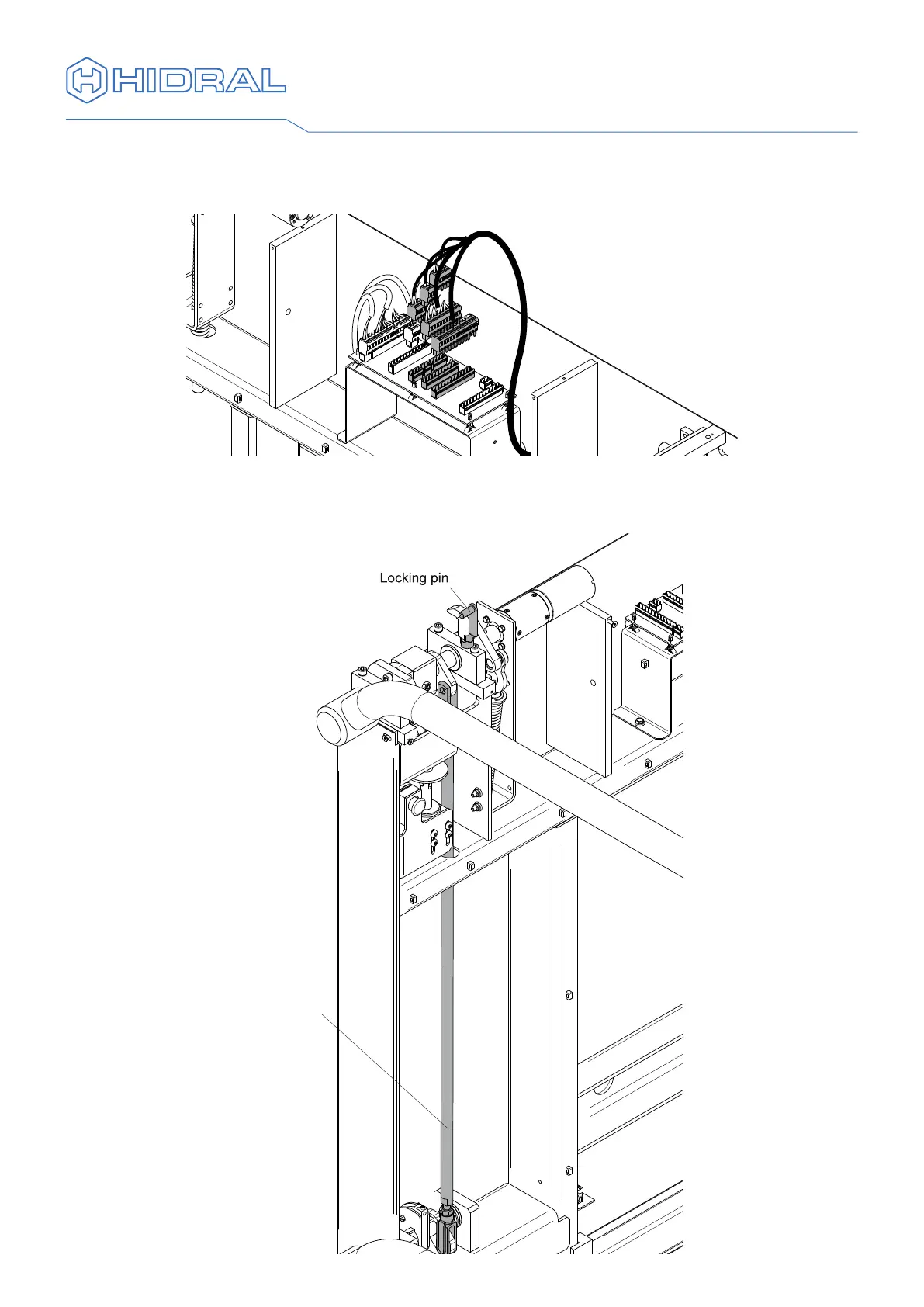

6 Plug the cables to the connectors in the vehicle and x the cable with a cord to the
tubes in the vertical structure.
7 For lifting platforms with protection barriers, extend them until the horizontal
position and join them using the connection rod.
Transmission
bar
